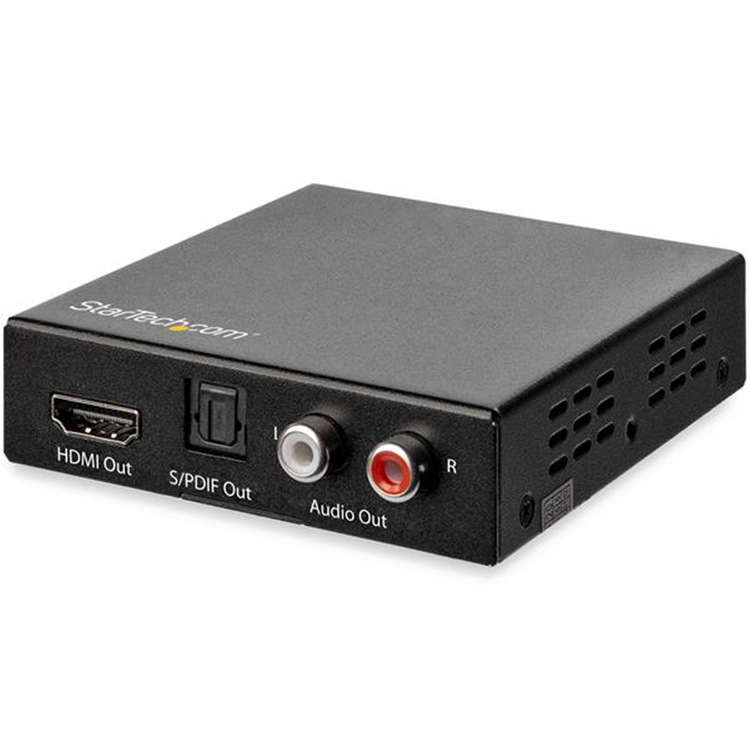

This 4K HDMI audio extractor lets you de-embed the audio from your HDMI video streams to create a distinct audio output that you can connect directly to a digital or analog audio device. Supporting HDMI 2.0 specifications, the de-embedder maintains 4K 60Hz resolutions to deliver a seamless video experience.
4K Video Performance
The HDMI sound splitter supports video resolutions up to 4K 60Hz (3840 x 2160) and high video bandwidth up to 18Gbps. It also supports High Dynamic Range (HDR) video pass-through, letting you enjoy lifelike images with incredible contrast, brightness and color, and greater luminosity compared to standard digital imaging.
Maximum Compatibility
Easily integrate HDMI 2.0 devices, such as your new 4K Blu-ray player, with your existing audio equipment or desktop speakers. The extractor isolates and extracts the audio signal from your HDMI cable and lets you output to digital optical audio or dual RCA audio devices . The integrated EDID management capabilities support 2-channel, 5.1-channel and pass-through audio modes.
The HDCP compliant HDMI audio de-embedder is compatible with dual-RCA composite adapters, giving you the flexibility to integrate the audio from your HDMI source into 3.5 mm audio applications using MU6MMRCA, MU3MMRCA or MUFMRCA (sold separately).
The compact extractor features a small footprint that blends discreetly into your hardware setup, for a uniform look.
HARDWARE
Audio
Yes
AV Input
HDMI
AV Output
3.5 mm Audio
HDMI
PERFORMANCE
Audio Specifications
SPDIF: PCM 2.0 , Dolby Digital and DTS 5.1
RCA Output: 2 channel or Stereo
Maximum Digital Resolutions
4096 x 2160 (4K) @ 60Hz
Supported Resolutions
4096 x 2160 (4K) 60Hz
3840x2160 (4K) 60Hz
2560x1600 60Hz
1920x1200 60Hz
1920x1080 (1080p) 60Hz
1280x720 (720p) 60Hz
**Lower resolutions and refresh rates, not stated but below the maximum, may also be supported
Wide Screen Supported
Yes
CONNECTOR(S)
Connector A
1 - HDMI (19 pin) Female Input
Connector B
1 - HDMI (19 pin) Female Output
1 - RCA Female Output
1 - Toslink (SPDIF, Optical) Female Output
POWER
Input Current
0.4 A
Input Voltage
100 - 240 AC
Output Current
1000 mA
Output Voltage
5 DC
Plug Type
M
Power Source
AC Adapter Included
ENVIRONMENTAL
Humidity
10% to 90%, non-condensing
Operating Temperature
0°C to 45°C (32°F to 113°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
PHYSICAL CHARACTERISTICS
Color
Black
Enclosure Type
Aluminum
Product Height
0.9 in [2.2 cm]
Product Length
3.5 in [90 mm]
Product Width
3.1 in [80 mm]
Weight of Product
7.3 oz [208 g]
