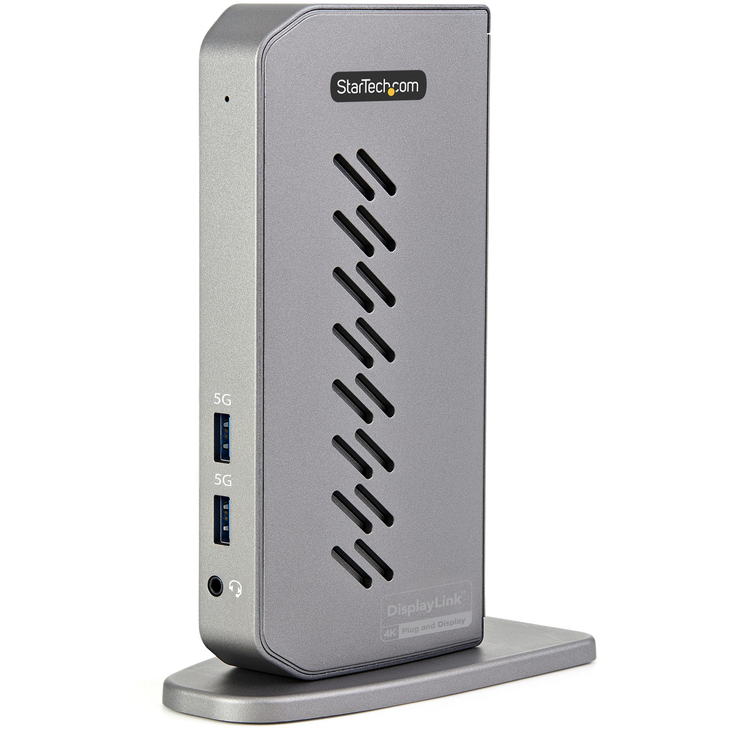

USB-C USB-A Dock - Hybrid Universal USB 3.0 Docking Station for USB-C or USB-A Laptop - Dual Monitor 4K 60Hz HDMI/DisplayPort - 6x USB-A, GbE - USB 3.1/3.2 Gen 1 - Windows/Mac
Universal Hybrid Dock | USB Type-C & USB Type-A | Dual 4K 60Hz HDMI & DisplayPort
Transition from the legacy USB-A (USB 3.1/3.0) to newer USB-C laptops with this universal laptop docking station for USB-C and USB-A laptops. The USB 3.1 Gen 1 (5 Gbps) Type-C dock features dual HDMI and/or DisplayPort monitors, fast-charge, six USB Type-A downstream peripheral ports, and headset audio.
- LATEST MODEL: This USB-C USB-A dock offers the same functionality as DK30A2DH, with added flexibility of horizontal or vertical orientation using the included stand to save space at your workstation
- HYBRID DOCK: Universal USB 3.0 docking station works w/ USB-C & USB-A laptops/computers, the included USB-C & USB-A 3.3ft (1m) host cables, 6-Port USB Type-A hub, Gigabit Ethernet & headset audio jack
- FLEXIBLE DUAL MONITOR VIDEO: This 4K 60Hz USB-C or USB-A docking station can connect up to 2 monitors: Dual DisplayPort or Dual HDMI or DP + HDMI displays; supports dual extended displays on MacBooks with both the Intel processor or Apple M1 chip
- 6 DOWNSTREAM USB-A PORTS: Hybrid USB C dock has a 6-port USB 3.1/3.2 Gen 1 (5Gbps) hub w/ extra USB-A ports to support devices such as keyboard, mouse, flash drive, external hard drive & printer
- COMPATIBILITY: USB-C port replicator is DisplayLink Certified for max. performance & compatible w/ Dell, HP, Lenovo & MacBook PCs; Windows, ChromeOS and macOS platforms, where mixed laptop Brands used
Flexible Monitor Connections
This is a dual 4K60Hz video docking station with support for both Ultra HD DisplayPort and/or HDMI monitors that lets you configure your video connections to best suit your needs.
- Dual 4K DisplayPort | Up to 4096 x 2160p @ 60Hz
- Dual 4K HDMI | Up to 4096 x 2160p @ 60Hz
- Single 4K DisplayPort + Single 4K HDMI | Up to 4096 x 2160p @ 60Hz
- Single 5K DisplayPort* | Up to 5120 x 2880
*Requires monitor support for 5K using two DP ports
Certified for Maximum Compatibility & Performance
This docking station is fully certified to meet top industry standards for DisplayLink (video connections) certification to guarantee the highest quality, performance, and compatibility.
Flexible Setup Options
For fast setup right out of the box, the two included host cables (USB-C and USB-A) connect to any laptop. The included dock stand lets you position the dock vertically to save space or lay flat on the desk.
The Connections You Need
Connect your devices with six downstream USB Type-A (USB 3.0 5 Gbps) ports, two positioned on the front, and four on the back. The dock provides a GbE port and a 3.5 mm 4-position headset audio jack.
Compatibility
Windows® XP (32-bit), Vista, 7, 8, 8.1, 10
macOS 10.6 - 10.12, 10.14 - 10.15, 11.0
Chrome OS™ v55+
Connector(s)
6 - Connector Type(s)
USB 3.1 USB Type-A (9 pin, Gen 1, 5 Gbps)
1 - Connector Type(s)
RJ-45
2 - Connector Type(s)
HDMI
DisplayPort
1 - Connector Type(s)
3.5 mm Audio
1 - Host Connectors
USB 3.1 USB Type-B (9 pin, Gen 1, 5 Gbps)
Environmental
Operating Temperature
0 to 50°C
Storage Temperature
-20 to 70°C
Humidity
0% to 95% (non-condensing) at 25°C
Hardware
4K Support
Yes
Fast-Charge Port(s)
Yes
Displays Supported
2
Ports
8
Audio
Yes
Interface
USB 3.2 Gen 1
Bus Type
USB-C
USB Pass-Through
Yes
Chipset ID
DL-6950
Packaging Information
Package Height
5.6 in [14.2 cm]
Package Length
4.3 in [10.9 cm]
Shipping (Package) Weight
12.7 oz [360.0 g]
Package Width
8.3 in [21.0 cm]
Performance
Maximum Digital Resolutions
4K 60Hz
General Specifications
Wake-on-LAN (WoL): Yes
MTBF
26 280 hrs
Physical Characteristics
Color
Black & Gray
Product Height
7.4 in [18.7 cm]
Product Length
2.9 in [73.0 mm]
Weight of Product
12.0 oz [340.0 g]
Product Width
5.3 in [13.5 cm]
Material
Aluminum and Plastic
Cable Length
39.4 in [100 cm]
Power
Power Source
AC Adapter Included
Input Voltage
110V-240V AC
Input Current
1.0A
Output Voltage
20V DC
Output Current
2A
Plug Type
N
Power Consumption (In Watts)
40W
Software
OS Compatibility
Windows® XP (32-bit), Vista, 7, 8, 8.1, 10
macOS 10.6 - 10.12, 10.14 - 10.15, 11.0
Chrome OS™ v55+
Special Notes / Requirements
Note
DisplayLink docking stations and video adapters support more than one external display on Apple's M1-based Mac. Requires driver installation. Please contact StarTech.com support for a recommendation based on your specific setup.
What's in the Box
1 - Included in Package
Docking Station
USB-C to USB-B Cable
USB-A to USB-B Cable
Universal Power Adapter (NA/JP, ANZ)
Dock Stand
Quick-Start Guide
