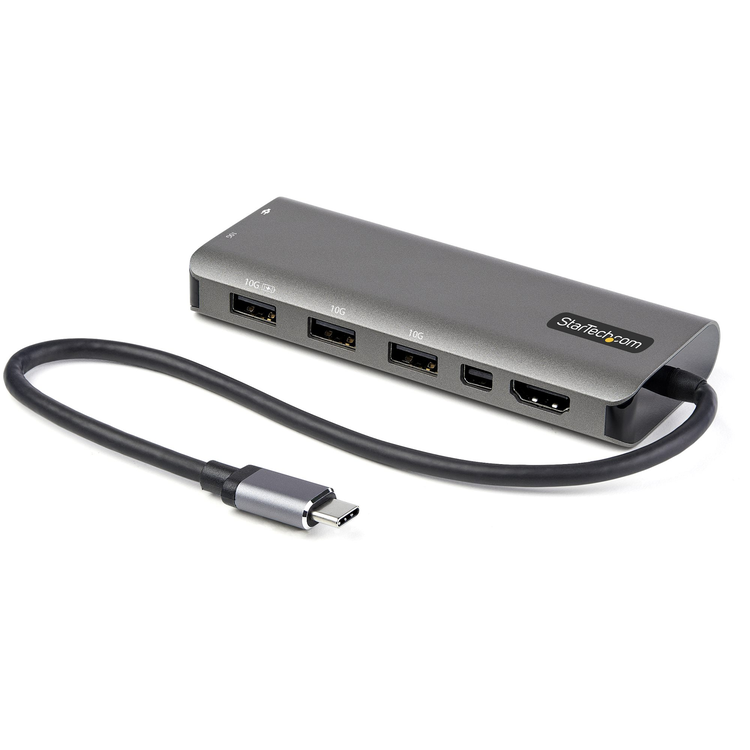

This USB-C multiport adapter with DP 1.4 Alt-Mode supporting 4K 60Hz HDMI® and mini DisplayPort turns your MacBook Pro, Dell XPS, or other USB-C™ laptops or tablet into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K HDMI or mDP video output, three USB 3.2 Gen 2 Type-A (10Gbps) ports including one BC 1.2 charge port; and one USB-C port (10Gbps), all through one connection to your laptop's USB-C or Thunderbolt 3™ port. Plus, it offers advanced charging through USB Power Delivery 3.0 and an extra-long attached 12-inch (30 cm) host cable for an extended reach to offer more set up flexibility.
Maximum Resolution
The portable docking station connects your laptop to a 4K 60Hz HDMI or mini DisplayPort monitor (4096 x 2160p) to create a powerful workstation. Can be used with an mDp to DP video adapter to connect your DP monitor and can also connect to an ultrawide monitor.
Connect Your Devices
The USB-C to USB 3.1 Gen 2 hub gives you one USB-C port and three USB-A ports to connect your legacy USB devices.
Charge Your Laptop and Peripheral
With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).
Connector(s)
Connector Type(s)
1 - HDMI (19 pin)
1 - Mini DisplayPort
3 - USB 3.1 Gen 1 Type-C (24 pin, 5Gbps)
1 - USB Type-C (24 pin) USB Power Delivery only
Host Connectors
1 - USB Type-C (24 pin, 5Gbps)
Hardware
Displays Supported
1
4K Support
Yes
Fast-Charge Port(s)
Yes
Ports
7
Audio
No
Interface
USB 3.1 Gen 2 - 10 Gbit/s
Bus Type
USB 3.1 Gen 2
USB Pass-Through
Yes
Chipset ID
Realtek - RTD2142S
VIA Labs - VL103
VIA Labs - VL822
VIA Labs - VL160
Terminus - FE8.1
Packaging Information
Shipping (Package) Weight
5.4 oz [153.0 g]
Package Height
1.2 in [3.0 cm]
Package Length
4.6 in [11.6 cm]
Package Width
5.5 in [14.0 cm]
Performance
Maximum Data Transfer Rate
10Gbps on USB-C port
10Gbps on USB-A ports
Maximum Cable Length
11.8 in [30 cm]
Maximum Digital Resolutions
4K 60Hz (on hosts that support DP 1.4)
4K 30Hz (on hosts that support DP 1.2)
Physical Characteristics
Product Height
6.3 in [16.0 cm]
Weight of Product
3.0 oz [84.3 g]
Product Length
1.8 in [4.7 cm]
Product Width
16.7 in [42.5 cm]
Color
Space Gray
Cable Length
11.8 in [30 cm]
Power
Power Source
Bus Powered and Host USB-C Power Adapter
Power Delivery
100W
Power Consumption (In Watts)
15W
Software
OS Compatibility
Windows® 8.1, 10, 11
macOS 10.13 to 10.15, 11, 12.0
Chrome OS™
Ubuntu 18.04, 20.04
iPadOS
Android
What's in the Box
Included in Package
1 - USB-C Multiport Adapter
2 - Rubber Feet
1 - Quick-Start Guide
