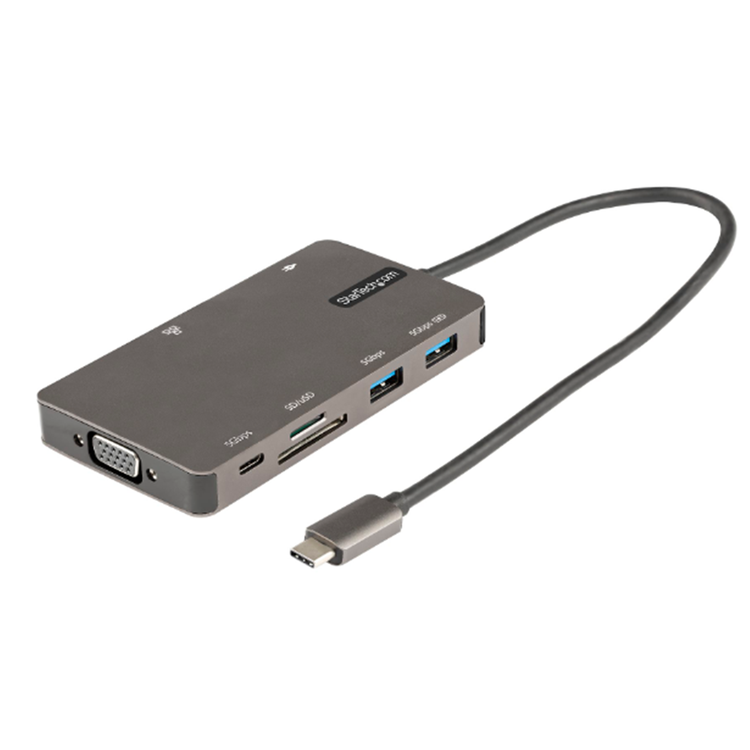

StarTech.com DKT30CHVSDPD USB C MULTIPORT ADAPTER - HDMI 4K 30HZ
This USB-C multiport adapter supports 4K 30Hz HDMI® or 1080p VGA and turns your MacBook Pro, Dell XPS, or other USB-C™ laptops or tablet into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K HDMI or 1080p VGA video output, two USB 3.1 Gen 1 Type-A (5Gbps) ports (including 1x Fast Charge port), a single USB 3.1 Gen 1 Type-C (5Gbps) port, an SD/MicroSD card reader and a Gigabit Ethernet port, all through one connection to your laptop's USB-C or Thunderbolt 3/4™ port. Plus, it offers advanced charging through USB Power Delivery 3.0 and an extra-long attached 12-inch (30 cm) host cable for an extended reach to offer more set up flexibility.
USB 3.1 Gen 1 (5Gbps) is also known as USB 3.2 Gen 1 (5Gbps) and USB 3.0 (5Gbps).
Enhance Productivity
The portable docking station offers versatile video flexibility by connecting your laptop to a 4K 30Hz HDMI monitor (4096 x 2160p) or a 1080p (60Hz) VGA monitor (1920x1080) to create a powerful workstation. For added video flexibility, the dock also supports ultra-wide monitors.
Connect Your Devices
The USB-C to USB 3.1 Gen 1 hub gives you two USB-A (5Gbps) ports and one USB-C (5Gpbs) port to connect your USB devices.
Built-In SD Card Reader
Access your multimedia content with ease. The multiport adapter provides direct access to your SD, SDHC™ and SDXC™ memory cards or microSD (uSD) cards.
Charge Your Laptop and Peripherals
With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop when a power adapter is connected to the USB-C power input port. Plus, one of the USB-A (5Gbps) ports supports BC 1.2 fast charge to power your peripherals when the dock is connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB, Ethernet and video disruption when you switch power sources (USB-C power adapter to bus power).
Reliable Network Connectivity
The Gigabit Ethernet port ensures reliable wired network access with support for PXE Boot and WoL.
Connector(s)
1 - Connector Type(s)
HDMI (19 pin)
VGA (15 pin, High Density D-Sub)
USB Type-A (9 pin, 5 Gbps)
USB Type-A (9 pin, 5 Gbps) 7.5W Charging
USB Type-C (24 pin, 5Gbps)
USB Type-C (24 pin) USB Power Delivery only
RJ-45
1 - Host Connectors
USB Type-C (24 pin, 5Gbps)
Environmental
Operating Temperature
0? to +45?
Storage Temperature
-10? to +70?
Humidity
10% to 90 % RH
Hardware
4K Support
Yes
Fast-Charge Port(s)
Yes
Displays Supported
1
Interface
USB 3.1 Gen 1
Bus Type
USB-C
Industry Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
USB 3.1 Gen 1 (5Gbps)
Chipset ID
Realtek - RTL8153
Parade Technologies - PS176
VIA Tech - VL102
VIA Tech - VL817
Indicators
1 - LED Indicators
Network Speed LED
Network Activity LED
Packaging Information
Shipping (Package) Weight
7,2 oz [204,0 g]
Package Height
0,6 in [1,4 cm]
Package Length
2,3 in [5,9 cm]
Package Width
4,3 in [11,0 cm]
Performance
Maximum Data Transfer Rate
5 Gbps (USB 3.1 Gen 1)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions
HDMI
4K 30Hz
VGA
1080p 60Hz
Type and Rate
USB 3.1 Gen 1 - 5 Gbit/s
UASP Support
Yes
Compatible Networks
10/100/1000 Mbps
PXE
Yes
Full Duplex Support
Yes
Physical Characteristics
Color
Space Gray
Product Height
0,6 in [1,4 cm]
Weight of Product
4,8 oz [137,0 g]
Product Length
2,3 in [5,9 cm]
Product Width
12,8 in [32,6 cm]
Material
Metal
Cable Length
11,8 in [30 cm]
Power
Power Source
Bus Powered and Host USB-C Power Adapter
Power Delivery
100W
Power Consumption (In Watts)
15W
Software
OS Compatibility
Windows® 7, 8, 8.1, 10, 11
macOS 10.9 to 10.15, 11.0, 12.0
Chrome OS™
