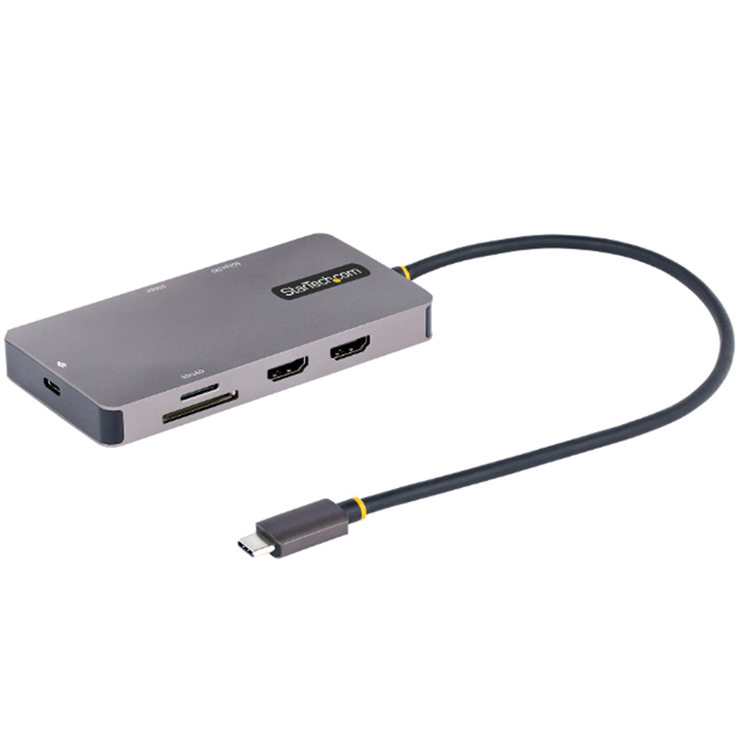

StarTech.com 120B-USBC-MULTIPORT USB C Multiport Adapter, Dual HDMI Video
This USB Type-C Multiport Adapter with DP 1.4 Alternative Mode, DSC and MST, supports dual-HDMI® (HDR) video with resolutions of up to 4K 60Hz uncompressed video. The mini travel dock turns your Dell XPS, Lenovo X1 Carbon, HP Elite/ProBook, or other USB-C laptop into a workstation, anywhere you go. The USB-C docking station provides dual HDMI outputs, a 2-port USB 3.2 Gen 1 Type-A (5Gbps) Hub including a BC 1.2 port to power and charge a USB peripheral, SD and MicroSD card readers, and a Gigabit Ethernet port, all through one connection to your laptop's USB-C or Thunderbolt 3/4™ port. In addition, it offers advanced charging through USB Power Delivery (PD) 3.0 pass-through via an integrated 12-inch (30 cm) USB-C host cable, for more set up flexibility.
High-Performance Dual-HDMI Video via MST
The compact docking station connects your laptop to two HDMI monitors, creating a powerful workstation. It supports DP 1.4 Alt Mode with DSC and MST, for uncompressed video performance up to dual 4K (3840 x 2160p) at 60Hz, depending upon your host computer. The dock also supports the use of ultrawide monitors.
Connect Your Devices
The USB-C to USB 3.2 Gen 1 (5Gbps) hub provides two USB-A ports for connecting your USB devices.
Multiple Use Cases
A versatile dock solution for use at your office desk, home office, hotel desk, or in the boardroom. It's portable enough to be carried in your bag / backpack for mobile use. The USB-C dock can operate with bus-power alone, , or with a USB-C power adapter connected to the pass-through port - for full laptop and peripheral charging. The lightweight docking station features a built-in 12 in (30 cm) USB-C host cable.
Built-In SD Card Reader
Access your multimedia content with ease. The multiport adapter provides direct access to your SD / SDHC™ / SDXC™ or microSD (uSD) memory cards.
Charge Your Laptop and Peripherals
With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter enables you to power and charge your laptop and a USB peripheral, when a USB-C power adapter is connected to the pass-through port. PD 3.0 features Fast Role Swap (FRS) which prevents USB data disruption when switching power sources (e.g., USB-C power adapter to bus power).
Reliable Network Connectivity
The Gigabit Ethernet port ensures reliable wired network access. Support for WoL allows you to boot the host computer from a remote location.
Connector(s)
External Ports
2 - HDMI (19 pin)
2 - USB 3.2 Gen 1 Type-A (9 pin, 5Gbps)
1 - RJ-45
1 - SD Slot
1 - MicroSD
1 - USB Type-C (24 pin) USB Power Delivery Only
Host Connectors
1 - USB 3.2 Type-C (24 pin, Gen 1, 5Gbps)
Environmental
Operating Temperature
0°C to 45°C (32°F to 133°F)
Storage Temperature
-10°C to 70°C (14°F to 185°F)
Humidity
10~90% RH (Non-condensing)
Hardware
4K Support
Yes
Fast-Charge Port(s)
Yes
Displays Supported
2
Interface
USB 3.2 Gen 1
Bus Type
USB-C
Industry Standards
HDMI 2.0
HDR10
DisplayPort 1.4
USB 3.2 Gen 1 (5Gbps)
USB Power Delivery Specification Rev. 3.0
Chipset ID
VIA - VL102
VIA - VL817
NOREL Systems - NS1081
ASIX - AX88179A
Synaptics - VMM6210
Indicators
LED Indicators
1 - Connection state/activity LEDs under GbE port.
Packaging Information
Package Length
5.6 in [14.2 cm]
Package Width
6.9 in [17.5 cm]
Package Height
1.2 in [3.0 cm]
Shipping (Package) Weight
6.3 oz [179.0 g]
Performance
Maximum Data Transfer Rate
5 Gbps
Maximum Digital Resolutions
Up to dual 4K (3840 x 2160p) 60Hz
Type and Rate
USB 3.2 Gen 1 - 5 Gbit/s
UASP Support
Yes
Compatible Networks
10/100/1000 Mbps
Full Duplex Support
Yes
Physical Characteristics
Color
Space Gray
Product Length
2.3 in [5.9 cm]
Product Width
5.7 in [14.5 cm]
Product Height
0.6 in [1.4 cm]
Weight of Product
5.8 oz [165.0 g]
Material
Aluminum
Cable Length
11.8 in [30 cm]
Power
Power Source
Bus Powered and Host USB-C Power Adapter
Power Consumption (In Watts)
15W
Software
OS Compatibility
Windows® 7, 8, 8.1, 10, 11
Chrome OS™
