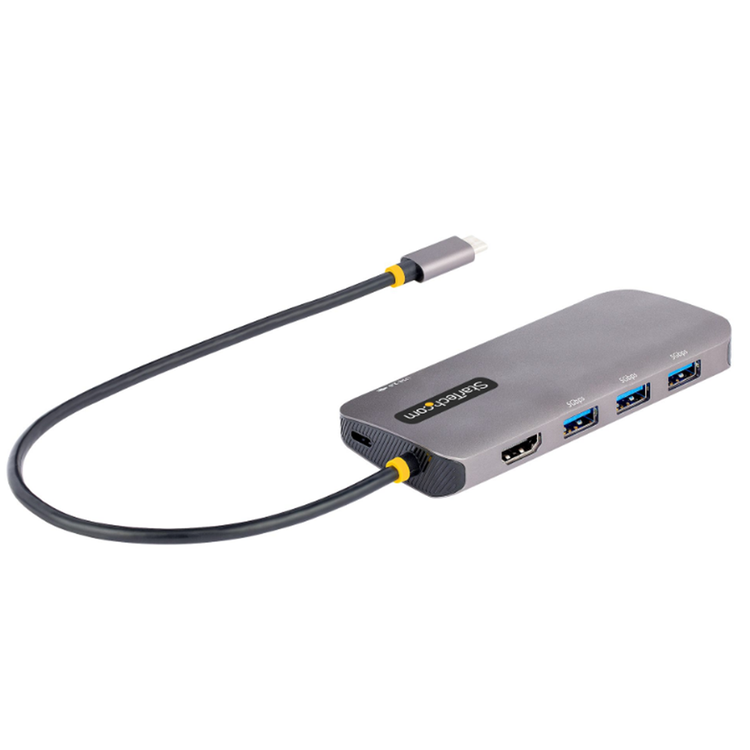

StarTech.com 127B-USBC-MULTIPORT USB C Multiport Adapter 4K 60Hz HDMI PD
6-IN-1 USB-C HUB
This USB C multiport adapter features 4K 60Hz HDMI (HDR10), 3x USB-A 3.2/3.1 Gen 1 (5Gbps), Gigabit Ethernet, Shared USB-C Power/USB 2.0 Data with 100W USB Power Delivery Pass-Through
4K 60HZ HDMI VIDEO WITH DP 1.4 ALT-MODE
USB-C Multiport Adapter features HDMI 4K 60Hz (HDR) uncompressed video; Ideal for high-quality presentations/image files for office, boardroom or work from home applications; 4K 30Hz on DP 1.2 Alt-Mode host devices
EXTRA LONG CABLE
12" (30 cm) attached cable for extended reach to reduce port/connector strain on 2-in-1 devices like Surface Pro 7/8, iPad Pro, HP Elite x2/laptops on riser stands; Ideal for on-the-go travel use in office/home office/shared workspaces
RELIABLE PERFORMANCE
USB bus powered or via external USB-C power adapter; 100W Power Delivery 3.0 pass through w/ 15W reserved for adapter to avoid video flickering, device dropouts or overdrawing power common in other hubs; Up to 85W for laptop charging
COMPATIBILITY
Mini dock is compatible with USB-C laptops, Ultrabooks and Chromebooks, and Thunderbolt 3/4 laptops from HP, Dell, Lenovo; MacBooks (Intel & M1 Pro/Max processors) and Surface; works with Windows, macOS, iPadOS, Android, Linux & Chrome OS
CONNECTIVITY TOOLS
Provided with the portable all-in-one USB Type C docking station adapter, this application improves performance and security; Featuring USB Event Monitoring & Windows Layout utilities
Connector(s)
External Ports
1 - HDMI (19 pin)
3 - USB 3.2 Type-A (9 pin, Gen 1, 5Gbps)
1 - RJ-45
1 - USB Type-C (Power Delivery + Data, 24 Pin, 480Mbps)
Host Connectors
1 - USB 3.2 Type-C (24 pin, Gen 1, 5Gbps)
Environmental
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-10°C to 70°C (14°F to 185°F)
Humidity
5~90% RH (Non-condensing)
Hardware
4K Support
Yes
Fast-Charge Port(s)
No
Displays Supported
1
Interface
USB 3.2 Gen 1
Bus Type
USB-C
Industry Standards
HDMI 2.0,HDR10
DisplayPort 1.4
USB 3.2 Gen 1 (5Gbps)
USB Power Delivery Specification Rev. 3.0
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
Chipset ID
VIA - VL102
VIA - VL817
Realtek - RTL8153
Realtek - RTD2172A
Terminus Tech - FE1.1S
Indicators
LED Indicators
1 - Network Connection LED (Green) - Solid Indicates Active Network Connection
1 - Network Activity LED (Amber) - Blinking Indicates Network Data Transfer
Packaging Information
Package Length
14,2 cm [5,6 in]
Package Width
17,0 cm [6,7 in]
Package Height
3,0 cm [1,2 in]
Shipping (Package) Weight
200,0 g [7,1 oz]
Performance
Maximum Data Transfer Rate
5Gbps
Maximum Digital Resolutions
DisplayPort 1.4
16:9 Aspect Ratio: 4096x2160 60Hz
21:9 Aspect Ratio: 3440x1440 60Hz
DisplayPort 1.2
16:9 Aspect Ratio: 4096x2160 30Hz
21:9 Aspect Ratio: 3440x1440 30Hz
Type and Rate
USB 3.2 Gen 1 - 5 Gbit/s
UASP Support
Yes
Compatible Networks
10/100/1000 Mbps
PXE
Yes
Full Duplex Support
Yes
Physical Characteristics
Color
Space Gray
Product Length
5,0 cm [2,0 in]
Product Width
42,7 cm [16,8 in]
Product Height
1,2 cm [0,5 in]
Weight of Product
70,0 g [2,5 oz]
Material
Aluminum
Power
Power Source
Bus Powered and Host USB-C Power Adapter
Power Delivery
100W
Power Consumption (In Watts)
15W
