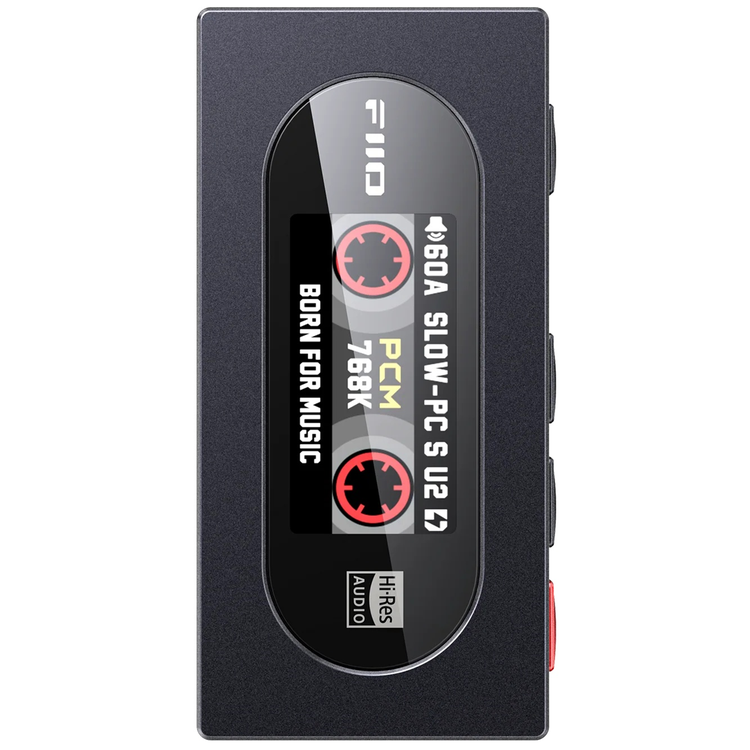

FiiO KA15 - Midnight Black Portable + Desktop DAC & Headphone Amplifier
KA15 DAC and Headphone Amplifier
10-band high-precision lossless PEQ Real-time current and voltage monitoring Intelligent dynamic power consumption Powerful 560mW+560mW desktop mode Dual CS43198 + dual op-amps
The versatile and fun little dongle Exploring new musical realms
The KA15 has been completely revamped inside and out. It combines FIIO's experienced audio know-how on the inside with elements of retro tape recorder looks on the outside.
The new generation of FIIO's 5-series audio dongles inspires endless fun with avant-garde innovation and appeals to quality enthusiasts with a practical design. It brings together great sound, ergonomics, fun, and aesthetics, all into a single tiny and convenient package!
Limitless enjoyment, be your own music tuner
The audiophile-grade DSP allows the KA15 to feature a ten-band high-precision lossless PEQ, which operates smoothly and with high quality thanks to FIIO's self-developed advanced adjustment algorithms.
Through the control app or the web interface*, not only can you simulate or correct the frequency response curve of headphones but you can also export, import, share, and save EQ curves. Whether you choose to use officially recommended tunings or choose to share your tunings online with other enthusiasts, you can easily enjoy setting up EQ the way you want it.
*Access to the web version of PEQ: Top status bar at fiio.com ->Support ->Web-based PEQ settings.
Intelligently fun, intelligent dynamic power consumption
Equipped with a high-performance, low-power processor and high-precision chips, the KA15 innovatively features real-time voltage and current monitoring for dynamic power adjustment. By recognizing the device's playback status, it intelligently adjusts the overall power consumption, allowing your phone to run using less power. When you set a timer for music playback during the night, once the timer ends the KA15 will enter an ultra-low power sleep mode - so you don't have to worry about your phone's battery being low when you wake up the next day.
Compellingly fun, an outstanding display
The KA15 is the first to use a 0.96-inch IPS true color LCD screen among similar dongles and supports both Chinese and English language display. The settings menus have been designed to be more intuitive and user-friendly. Additionally, the KA15 features a new retro dynamic UI, combining technological innovation with classic design. With the simulating spinning tape, you can truly feel the uniqueness of the KA15.
There are more impressive functions- powerful 560mW+560mW desktop mode, dual CS43198 + dual op-amps, supports 768kHz/32bit and DSD256, app control, 60-step quick adjustment and 120-step fine adjustment available, supports microphones, 3.5mm jack supports the CTIA standard of in-line controls, supports connection with the Switch, PS5 and other devices under UAC1.0 mode... Check on the product page for more details.
Surge of power, Patented Desktop Mode
Activate Desktop Mode for greater power, with balanced output power of 560mW+560mW, an astonishing increase of 207% compared to the KA5. This gives the KA15 the headroom to drive both low and high impedance headphones.
Patent no.: L202321946664.8
Flagship chips All expertly tuned
The golden combination of a high-performance USB chip, dual CS43198 flagship DACs + dual high-performance SGM8262 op-amps, allow for high performance in a tiny area, giving the minute KA15 dongle more sound quality than its small size would suggest.
Capable decoder, All secrets unveiled
The KA15 supports up to 768kHz/32bit and DSD256 sampling rates, easily handling various lossless audio formats to meet your demands for great sound. Additionally, it is Hi-Res Audio certified, a testament to its excellent ound quality.
A joy to use, Ergonomically designed
To better suit your preferences, you can choose which control modes to use: Dual modes for volume control, 60-step quick adjustment or 120-step fine adjustment.
A/B button modes:
mode A: short press volume +/-, long press previous/next track;
mode B: short press previous/next track, long press to continuously adjust volume.
In-line controls, Music and calls at your fingertips
Microphones are supported*, as a part of the 3.5mm jack that supports the CTIA standard of in-line controls - allowing you to not only use your microphone, but also to control music playback and volume.
*Some phones may not support microphone input due to operating system limitations.
Metal construction, Refreshingly cool
The all-metal body is meticulously crafted after undergoing multiple processes including precision CNC milling, anodizing, and polishing. The result is a smooth and refined texture that fits comfortably in the hand. The all-metal construction also effectively reduces external interference, for purer and improved sound quality.
COAX output supported Your own digital jukebox
The 3.5mm jack also acts as a SPDIF output, allowing you to connect to an external decoder for more ways to listen.
Wide compatibility, HiFi without restrictions
A detachable cable plus compatibility with Android/iOS/iPadOS/Windows/macOS means you can connect seamlessly to a wide range of devices, for a truly HiFi experience without restrictions!
UAC1.0 mode, Plug and play
Select the UAC1.0 mode to connect to the Switch, PS5 and other devices for more immersive gaming.
With MagClip Enjoy Hi-Fi on the go with greater ease
When used with the magnetic bundling kit MagClip, it is locked securely without wobbling, allowing for a more comfortable portable Hi-Fi experience!
General
Name/Model
KA15
Hardware Solution
DAC: CS43198 x2
Color
Midnight black
Dimensions
About 52*25*11mm
Weight
About 21g
Adaptive Impedance
PO: 16~150O; BAL: 16~300O
Sampling Rate Indication
LCD Display Screen
Max Supported Sampling Rate
768K/32bit, DSD64/128/256, 384K/32bit (coaxial)
Firmware Upgrade
System firmware can be upgraded via USB
FiiO Control
Supported
EQ
Supported
Buttons and Ports
USB Port
Type-C USB
3.5mm Plug
Single-ended/SPDIF output (shared)
4.4mm Plug
Balanced output
Physical Button
Adjust volume, switch songs
Toggle Switch
Desktop mode switch
Audio Parameters (3.5mm headphone out)
Output Power
L+R=290mW+290mW (16O)
L+R=180mW+180mW (32O)
L+R=19mW+19mW (300O)
Peak Output Voltage
=2.4V (32O)
Output Impedance
<0.8O
Frequency Response
20Hz~20kHz, damping =0.1dB
20Hz~50kHz, damping =0.1dB
THD+N
<0.00045% (0dB, 32O)
SNR
=122dB (32O, A-weighted)
Crosstalk
=74dB (1kHz, 32O)
Audio Parameters (4.4mm headphone out)
Output Power
L+R=510mW+510mW (16O)
L+R=560mW+560mW (32O)
L+R=78mW+78mW (300O)
Peak Output Voltage
=4.2V (32O)
Output Impedance
<1.2O
Frequency Response
20Hz~20kHz, damping =0.1dB
20Hz~50kHz, damping =0.1dB
THD+N
<0.0004% (-4dB, 32O)
SNR
=123dB (32O, A-weighted)
