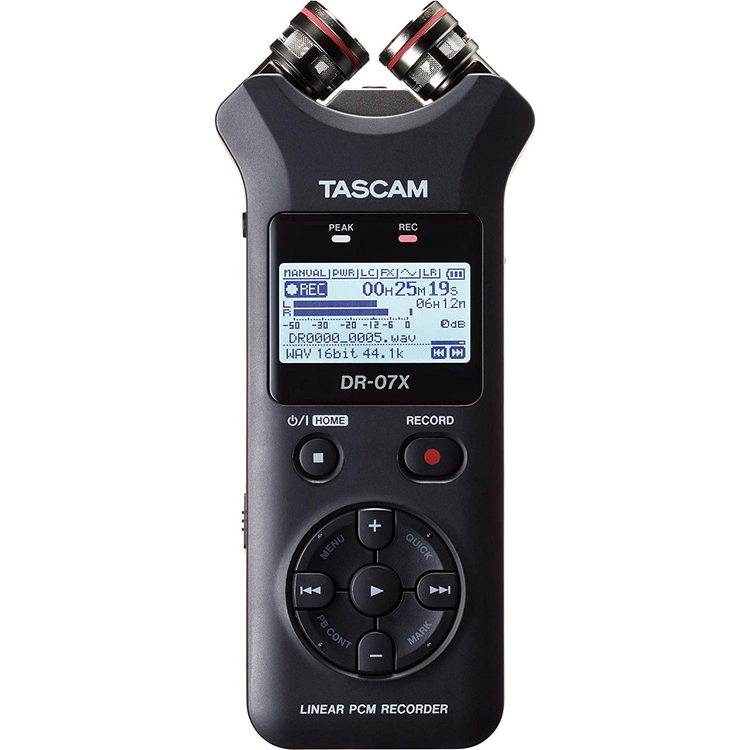

TASCAM DR-07X
The TASCAM DR-07X is a easy and compact handheld audio recorder with great sound quality.
(INSERT VIDEO)
The new standard in stereo hand held recorders
Easy and compact audio recorder with great sound quality. Multiple fail-safe function and switchable microphone configuration make music recording more fun and brilliant.
Record clean and clear audio anywhere
DR-07X bring high-quality recording to an easy-to-use portable powerhouse with a size and price that anyone can handle. A pair of condenser microphones handles small to loud sound up to 125dB SPL with the sensitivity to capture every detail.
Simple to operate
The layout of the DR-07X has been revamped to be quick and easy to work with one thumb. Operations like recording, adjusting levels, deleting bad takes and adding markers are just a button press away.
Adjustable microphone for preferred stereo image
DR-07X is equipped with adjustable unidirectional microphones that can be used for recording in both the A-B position and X-Y position. Advanced microphone placing allows for a wide stereo sound recording or a clear stereo sound recording with less phase difference, making it possible to achieve professional quality recordings.
What is A-B and X-Y stereo?
For example, even if you want to record acoustic guitar duo one day and large choir or band concert on the other day, you can change microphone configuration and set it for more suitable stereo capturing. A-B configuration is for more far image that capture wider horizon. On the other hand X-Y can prevent missing sweet center spot, so it is more suitable for tight image.
Extended battery life
dr-07x uses only two AA batteries and has ultra-long battery capability. When using built-in microphones, recording lasts 17.5 hours when recording with standard 2ch WAV, 44.1kHz/ 16bit format using alkaline batteries.
Turning your room into a studio – in a minute
Connecting to a PC with USB Audio interface mode, DR-07X becomes a strong yet easy gear for voiceover work, live streaming and songwriting with studio-quality audio. Built-in microphones work as just as USB microphones without complicated settings. Also dr-07x can be powered by a USB mobile battery as well for super long extended use.
Back up your transcription work: record and play with one unit
Writing down what you hear – Easier said than done, but it is actually easy with DR-07X. In addition to its capability to capture crisp voice recording, DR-07X can help you with its Jump back function, variable Speed function and equalizer preset for human voice.
Tools for music practicing
In addition to its excellent recording capability, DR-07X is an excellent musical instrument practice tool. An internal Reverb effect works both on playback and recording, allowing you to rehearse your performance with spacious concert hall reverb. A chromatic tuner is also available.
Never miss the timing
Auto recording function can detect the sound input signal level and automatically start recording. Also, Pre-recording function with up to 2 seconds pre-record provides fail-safe protection even when you are a bit late to hit the record button.
Still safe if it is louder than you thought.
Peak Reduction works in rehearsal mode or in record. Even if the sound or performance is louder than the sound check you’re safe. Combined with Auto level and Limiter for preventing distortion, you never have to worry.
No need to go through “take 2” all over again
If you don’t like the last part of a phrase you just recorded with your guitar, or if you change your mind and want to rephrase narration, the “Overwrite mode” is exactly what you need. Overwrite mode allows punch-in recording from a desired point. It is destructive editing with one level of undo.
Nondestructive Overdubbing
The overdubbing function allows for Overdub Recording while playing a previously recorded file. This allows you to record other parts such as a guitar solo over a recording previously made such as at a rehearsal studio. Overdubbing creates a new file, leaving the original file unaffected, making it easy to re-record.
192 Hours. This is how long you can record CD-quality sound with one single microSDXC card.
dr-07x supports a microSDXC card, which can record longer with larger data capacity. If you record a stereo file at 44.1kHz/ 16bit CD quality, a128GB card holds 192 hours maximum. In MP3/ 320kbps mode, it can record up to 896 hours.
Recording
Recording Media
microSD card (64MB to 3GB)
microSDHC card (4GB to 32GB)
microSDXC card (up to 128GB)
File System
FAT16/32, exFAT
WAV / BWF
Sampling Frequency
44.1k / 48k / 96k Hz
Bit-depth
16 / 24-bit
MP3
Sampling Frequency
44.1k / 48k Hz
Bit-rate for recording
32k / 64k / 96k / 128k / 192k / 256k / 320k bps
Playback Bit-rate
32k to 320k bps, VBR, ID3TAG Ver. 2.4
Number of Channels
2-channel (Stereo) / 1-channel (Mono)
Playback speed control
0.5 to 1.5 times (in 0.1 increments) * 44.1k/48kHz only
Built-in Microphone
Unidirectional, Stereo
switchable between A-B and X-Y positions
Mic/Extension In
Connector
1/8" (3.5mm) Stereo Mini jack (Unbalanced, Plug-in Power)
Nominal Input Level
–20dBV
Maximum Input Level
–4dBV
Input Impedance
18kO or more (Power Off)
2kO or more (Power On)
Phones/Line Out
Connector
1/8" (3.5mm) Stereo Mini jack (Unbalanced)
LINE connection
Nominal Output Level
–14dBV (10kO load)
Maximum Output Level
+2dBV (10kO load)
Output Impedance
12O
Headphones connection
Maximum Output Power
20mW + 20mW (32O load)
USB
Connector
USB Micro B-type
Format
USB2.0 HIGH-SPEED
Built-in Speaker
0.3W, Mono
Low-cut Filter
40 / 80 / 120Hz
Chromatic Tuner
C1 to B6, A4 = 435Hz to 445Hz (in 1Hz increments)
Effector
6 presets (Hall 1, Hall 2, Room, Studio, Plate 1, Plate 2)
Tripod attachment screw-hole
1/4" Tripod attachment screw-hole
Power
2 AA Batteries
USB bus power
AC 100 to 240V (optional AC Adapter)
Power Consumption
1.7 W (Max)
Battery
Alkaline (EVOLTA)
approx. 17.5 hours
Ni-MH (eneloop)
approx. 15.5 hours
Dimensions (W×H×D)
68 × 158 × 26 mm
Weight
127 g
Audio Performance
Frequency Response
Fs 44.1kHz 20Hz to 20kHz, +1/–3dB (EXT IN to LINE OUT, JEITA)
Fs 48kHz 20Hz to 22kHz, +1/–3dB (EXT IN to LINE OUT, JEITA)
Fs 96kHz 20Hz to 40kHz, +1/–3dB (EXT IN to LINE OUT, JEITA)
Total Harmonic Distortion
0.05% or less
Signal-to-Noise Ratio
92 dB or higher
Computer Requirements
Windows
Computer Windows PC with USB2.0 or USB3.0 port
CPU Dual Core, 2GHz or faster (x86)
Memory 2GB or more
Macintosh
CPU Power PC, iMac, G3, G4, G5 266MHz or faster
Memory 64MB or more
USB USB2.0 recommended
Supported Operating System
Windows 10 (October 2018 Update) , Windows 10 (April 2018 Update) , Windows 8.1 , Windows 7
macOS Mojave , macOS High Sierra (10.13) , macOS Sierra? (10.12)
iOS 12 , iOS 11
