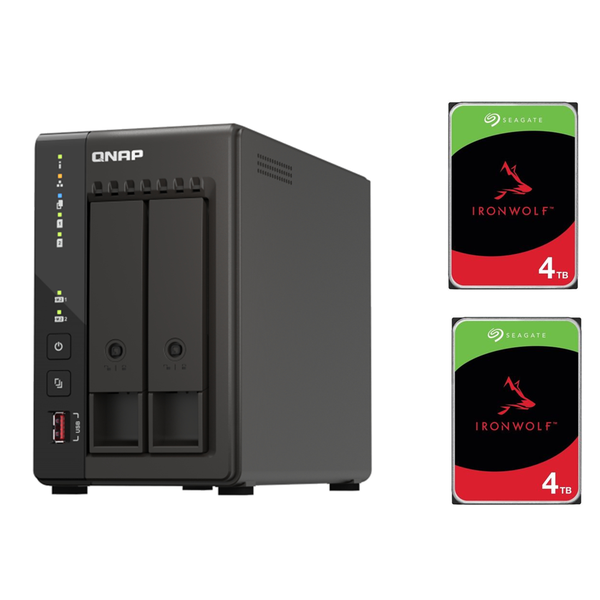

QNAP TS-253E
Long-term availability
The TS-253E is powered by an Intel® Celeron® J6412 processor and will be available and supported for an extended period. This long-term availability makes the TS-253E an ideal choice for MSP, SI, and other IT-related businesses requiring matching NAS models for long-term projects.
24/7 surveillance solution for stores and branch offices
The TS-253E is a one-stop surveillance solution for centrally recording/managing multiple cameras and surveillance servers based in your offices, stores, and other working spaces.
Record/monitor your environment
QVR Elite is QNAP's subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-253E and enjoy simplified camera management, storage space allocation, camera live viewing and playback.
Centrally manage up to 32 surveillance servers
If your business requires simultaneously managing multiple recording servers, then install QVR Center on the TS-253E. With QVR Center you can manage up to 32 surveillance servers and 10,000+ cameras with an easy-to-use interface.
Faster image identification with integrated Intel® OpenVINO™ AI engine.
With integrated Intel® OpenVINO™ AI computing resources, the TS-253E accelerates AI image recognition performance without impacting other applications or services. QNAP AI Core primarily works with the QuMagie application.
Transform your network with a wallet-friendly 2.5GbE switch
Upgrading your network shouldn't break the bank, and 2.5GbE connectivity provides immediately noticeable improvements compared to standard 1GbE. QNAP offers 2.5GbE switches that supports Multi-Gigabit NBASE-T™ and allows you to use existing CAT5e cables to connect multiple computers and NAS, assisting organizations in implementing high-speed, secure and scalable network environments without going over budget.
Seagate IronWolf 4TB NAS Internal HDD
IronWolf
Seagate ST4000VN006, 5,400RPM, SATA III 6Gb/s, 3.5in, 4TB capacity, AgileArray, 256MB cache, Tough, ready, and scalable. IronWolf drives are NAS-optimized for 24x7 in NAS enclosures. Tuned with AgileArray and multi-user technology, IronWolf allows you to do more with your NAS.
IronWolf provides a workload rate of 180 TB/year with scalable 24x7 performance that can handle multi-bay NAS environments, as well as capacities up to 4 TB. It fits applications like 1- to 8-bay network attached storage (NAS).
Drive health and data recovery
When integrated into compatible NAS systems, these drives provide overall system reliability increases due to IronWolf Health Management (IHM).
QNAP TS-253E
CPU
Intel® Celeron® J6412 4-core/4-thread processor, burst up to 2.6 GHz
CPU Architecture
64-bit x86
Graphic Processors
Intel® UHD Graphics
System Memory
8 GB on board (non-expandable)
Maximum Memory
8GB
Flash Memory
4GB (Dual boot OS protection)
Drive Bay
2 x 3.5-inch SATA 6Gb/s
Drive Compatibility
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
M.2 Slot
2 x M.2 2280 PCIe Gen 3 x2
2.5 Gigabit Ethernet Port (2.5G/1G/100M)
2 (2.5G/1G/100M/10M)
USB 2.0 port
2
USB 3.2 Gen 2 (10Gbps) Port
2 x Type-A
HDMI Output
2 x HDMI 1.4b ( up to 3840 x 2160 @ 30Hz )
Form Factor
Tower
LED Indicators
Power/Status, LAN, USB, HDD1-2
Buttons
Power, Reset, USB Auto Copy
Dimensions (HxWxD)
168.5 × 102 × 225 mm
Weight (Net)
1.28 kg
Weight (Gross)
2.32 kg
Operating Temperature
0 - 40 °C (32°F - 104°F)
Storage Temperature
-20 - 70°C (-4°F - 158°F)
Relative Humidity
5-95% RH non-condensing, wet bulb: 27°C (80.6°F)
Power Supply Unit
60W/65W adapter, 100-240V
Seagate IronWolf 4TB NAS Internal HDD
Capacity
4TB
Standard Model Number
ST4000VN006
Interface SATA
6Gb/s
Drive Bays Supported
1 -8 Bays
Recording Technology
CMR
Drive Design (Air or Helium)
Air
Workload Rate Limit (WRL)
180
Rotational Vibration (RV) Sensor
Yes
Dual-Plance Balance
Yes
Error Recovery Control
Yes
Max. Sustained Transfer Rate OD (MB/s)
202MB/s
Spindle Speed (RPM)
5,400
Cache (MB)
256
Load/Unload Cycles
600,000
Non-Recoverable Read Errors Rate
Max 1 per 10E14
Power-on Hours
8,760
Mean Time Between Failures (MTBF, hours)
1,000,000
Rescue Data Recovery Services (years)
3
Warranty, Limited (Years)
3
Start Up Current, Typical (12V,A)
1.8
Average Operating Power
4.8
Idle Power Average (W)
3.96 W
Standby Mode/Sleep Mode, Typical (W)
0.5/0.5
Voltage Tolerance, Inc. Noise (5V / 12V)
±5% / ±10%
Operating Temperature (ambient, min °C)
0
Operating Temperature (drive reported, max °C)
65
Nonoperating Temperature (ambient, min / max °C)
-40 / 70
Shock, Operating/Non-operating: 2ms (max)
80 Gs / 300 Gs
Acoustics, Idle (typical, measured in idle 1 state) (dBA)
23
Acoustics, Seek (typical) (dBA)
27
Height (mm/in)
20.2mm / 0.795in
Width (mm/in, max)
101.85 mm / 4.01in
Depth (mm/in, max)
146.99 mm/ 5.787in
Weight (g/lb, typical)
490g / 1.08lb
