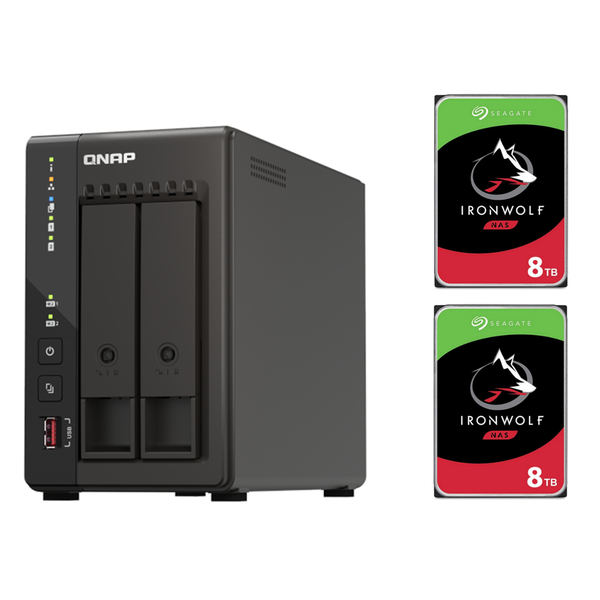

QNAP TS-253E
Long-term availability
The TS-253E is powered by an Intel® Celeron® J6412 processor and will be available and supported for an extended period. This long-term availability makes the TS-253E an ideal choice for MSP, SI, and other IT-related businesses requiring matching NAS models for long-term projects.
24/7 surveillance solution for stores and branch offices
The TS-253E is a one-stop surveillance solution for centrally recording/managing multiple cameras and surveillance servers based in your offices, stores, and other working spaces.
Record/monitor your environment
QVR Elite is QNAP's subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-253E and enjoy simplified camera management, storage space allocation, camera live viewing and playback.
Centrally manage up to 32 surveillance servers
If your business requires simultaneously managing multiple recording servers, then install QVR Center on the TS-253E. With QVR Center you can manage up to 32 surveillance servers and 10,000+ cameras with an easy-to-use interface.
Faster image identification with integrated Intel® OpenVINO™ AI engine.
With integrated Intel® OpenVINO™ AI computing resources, the TS-253E accelerates AI image recognition performance without impacting other applications or services. QNAP AI Core primarily works with the QuMagie application.
Transform your network with a wallet-friendly 2.5GbE switch
Upgrading your network shouldn't break the bank, and 2.5GbE connectivity provides immediately noticeable improvements compared to standard 1GbE. QNAP offers 2.5GbE switches that supports Multi-Gigabit NBASE-T™ and allows you to use existing CAT5e cables to connect multiple computers and NAS, assisting organizations in implementing high-speed, secure and scalable network environments without going over budget.
Seagate IronWolf 8TB NAS Internal HDD
NAS Optimized Drives
Tough, ready, and scalable, Seagate IronWolf drives are built and optimized for NAS enclosures for home, SOHO, creative professionals, and SMB. IronWolf drives are enhanced with AgileArray technology and rotational (RV) sensors for optimal performance and multi-drive systems.
AgileArray Hard Drive Optimization for NAS
IronWolf is optimized with AgileArray, built for NAS to provide the ultimate NAS experience. It features dual-plane balancing for consistent performance, RAID-optimized firmware and advanced power management.
The Ultimate Media Server and Private Cloud Duo
Synology NAS paired with Seagate's NAS-optimized IronWolf HDD's deliver the perfect choice for seamless media streaming, file sharing and backing up Windows, Mac, or Android/iOS devices.
QNAP TS-253E
CPU
Intel® Celeron® J6412 4-core/4-thread processor, burst up to 2.6 GHz
CPU Architecture
64-bit x86
Graphic Processors
Intel® UHD Graphics
System Memory
8 GB on board (non-expandable)
Maximum Memory
8GB
Flash Memory
4GB (Dual boot OS protection)
Drive Bay
2 x 3.5-inch SATA 6Gb/s
Drive Compatibility
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
M.2 Slot
2 x M.2 2280 PCIe Gen 3 x2
2.5 Gigabit Ethernet Port (2.5G/1G/100M)
2 (2.5G/1G/100M/10M)
USB 2.0 port
2
USB 3.2 Gen 2 (10Gbps) Port
2 x Type-A
HDMI Output
2 x HDMI 1.4b ( up to 3840 x 2160 @ 30Hz )
Form Factor
Tower
LED Indicators
Power/Status, LAN, USB, HDD1-2
Buttons
Power, Reset, USB Auto Copy
Dimensions (HxWxD)
168.5 × 102 × 225 mm
Weight (Net)
1.28 kg
Weight (Gross)
2.32 kg
Operating Temperature
0 - 40 °C (32°F - 104°F)
Storage Temperature
-20 - 70°C (-4°F - 158°F)
Relative Humidity
5-95% RH non-condensing, wet bulb: 27°C (80.6°F)
Power Supply Unit
60W/65W adapter, 100-240V
Seagate IronWolf 8TB NAS Internal HDD
Interface
SATA III 6 Gb/s
Number of Drive Bays Supported
1 to 8
Technology Multi-User (TB/yr):
180
Supported Features
Dual-plane balance, Error recovery control
Max Sustained Transfer Rate
OD 210 MB/s
Spindle Speed (RPM)
7200
Cache
256 MB
Load/Unload Cycles
600,000
Nonrecoverable Read Errors per Bits Read
Max 1 per 10E15
Power-On Hours per Year
8760
Workload Rate Limit
180 TB/year
Mean Time Between Failures (MTBF)
1,000,000 Hours
Startup Current (12V typical, amps)
2 A
Average Operating Power
9 W
Idle Average
7.2 W
Power Save Mode
Standby: 0.6 W, Sleep: 0.6 W
Voltage Tolerance
5 V: ±5%, 12 V: ±10%
Temperature Operating (ambient, min)
41°F / 5°C
Operating (drive case, max)
158°F / 70°C
Non-operating (ambient, min)
-40°F / -40°C
Non-operating (ambient, max)
158°F / 70°C
Halogen Free
Yes
Shock Operating 2ms (max)
70 g
Non-operating 2ms (max)
250 g
Acoustics Idle (typical, bels)
2.7
Operating (typical, bels)
2.8
Dimensions (H x W x D)
1.0 × 4.0 × 5.8" / 26.1 × 101.9 × 147.0 mm
Weight
1.7 lb / 0.8 kg
