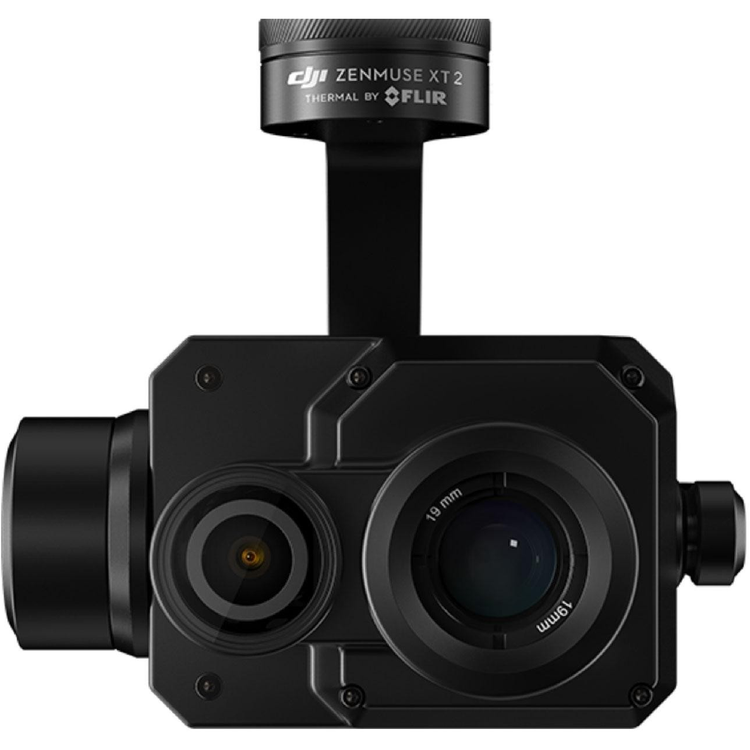

Dual Vision. Superior Intelligence.
Join the next generation of commercial drone solutions with the XT2.
Pairing the FLIR Tau 2 thermal sensor and 4K visual camera with DJI's leading stabilization and machine intelligence technology, the XT2 quickly transforms aerial data into powerful insights that save time, money - and lives.
Robust Dual-Sensor Thermal Solution
Housed within a weather resistant encasing is a combination of FLIR's advanced radiometric thermal sensor and 4K visual sensor - all integrated seamlessly with DJI's powerful enterprise drone platforms.
Transform Data into Insights in Real-Time
Enabled by a suite of processors and computer vision algorithms, the XT2's onboard Machine Intelligence helps teams identify what's important while on-site, instead of after a lengthy processing time.
Temp Alarm
Don't miss a thing with instant notifications when object temperatures exceed pre-set parameters.
Heat Track
Capture the most critical information by automatically locking the XT2 onto the hottest object in view.
FLIR MSX®
Quickly interpret data with details from the visual image overlaid on the thermal data stream.
Applications
See the unseen. FLIR thermal sensors reveal details invisible to the naked eye by making subtle differences in temperature visible. This new view on the world can reveal when equipment or buildings are damaged, the location of lost people and much more.
Purpose-Built Applications - DJI Pilot - Professional Flight Control
DJI Pilot is a robust flight control app, which can be installed in Android, and has been developed specifically for enterprise-users to unleash the power of their DJI drones. With development made specifically for the XT2, DJI Pilot optimizes your flight and aerial imaging process.
- Access and adjust Spotlight Pro flight modes
- Select area and parameters for Temp Alarm
- On-screen temperature measurements
- Access to color palette, isotherm, and other thermal settings
General
Name
Zenmuse XT2
Dimensions
With 25 mm lens: 123.7×112.6×127.1 mm
With other lens: 118.02×111.6×125.5 mm
Gimbal
Angular Vibration Range
±0.01°
Mount
Detachable
Controllable Range
Tilt: +30° to -90°
Pan: ±320°
Mechanical Range
Tilt: +45° to -130°
Pan: ±330°
Roll: -90° to +60°
Max Controllable Speed
Tilt: 90°/s
Pan: 90°/s
Thermal Camera
Thermal Imager
Uncooled VOx Microbolometer
FPA/Digital Video Display Formats
640x512
336x256
Digital Zoom
640x512: 1x, 2x, 4x, 8x
336x256: 1x, 2x, 4x
Pixel Pitch
17 um
Spectral Band
7.5-13.5 um
Full Frame Rates
30 Hz
Exportable Frame Rates
<9 Hz
Sensitivity (NETD)
<50 mk @ f/1.0
Scene Range (High Gain)
640x512: -25° to 135?
336x256: -25° to 100?
Scene Range (Low Gain)
-40° to 550?
File Storage
MicroSD card*
Photo Format
JPEG, TIFF, R-JPEG
Video Format
8 bit: MOV, MP4 14 bit: TIFF Sequence, SEQ**
Visual Camera
Sensor
1/1.7" CMOS
Effective Pixels: 12 M
Lens
Prime lens
Focus at 8 mm
FOV 57.12°× 42.44°
Digital Zoom
1x, 2x, 4x, 8x (Live View Only)
Photo Formats
JPEG
Video Formats
MOV, MP4
Video Resolutions
4K Ultra HD: 3840x2160 29.97p
FHD: 1920x1080 29.97p
Working Modes
Capture
Record
Playback
Still Photography Modes
Single Shot
Burst Shooting(3/5 frames)
Interval (2/3/5/7/10/15/20/30 sec)
Video Caption
Supported
Anti-flicker
Auto, 50 Hz, 60 Hz
Storage
MicroSD card
Max capacity
128 GB. UHS-3 required

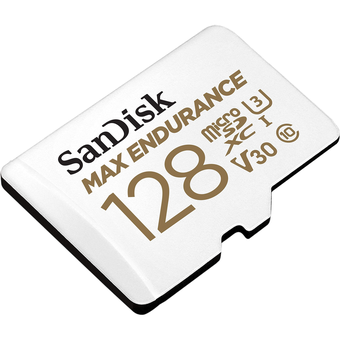

Recommended model Sandisk Extreme 16/32 GB UHS-3 microSDHC

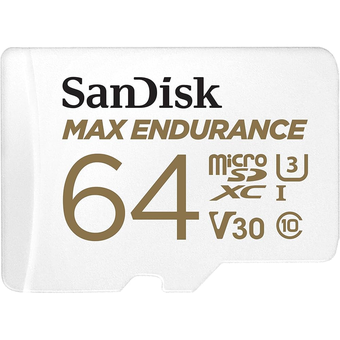

Sandisk Extreme 64/128 GB UHS-3 microSDXC
Supported File System
FAT 32 (=32GB), exFAT (>32GB)
Image Processing & Display Control
Image Optimization
Yes
Digital Detail Enhancement
Yes
Polarity Control (Black Hot/ White Hot)
Yes
