Enjoy direct HDMI connection to a TV, monitor, or projector.
No computer is required.

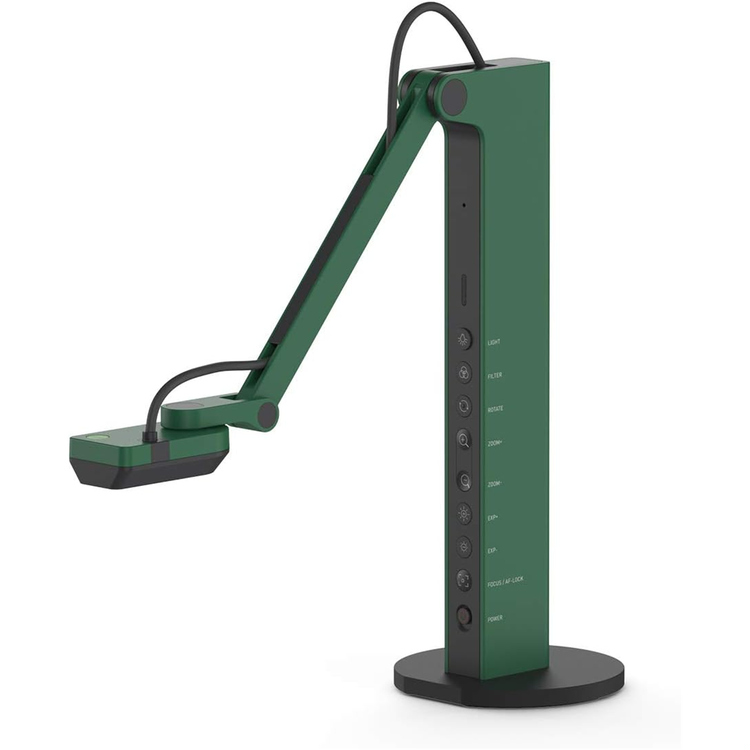

IPEVO VZ-R HDMI/USB Dual Mode 8MP Document camera is a real-time image capturing device. It can capture materials such as documents, textbooks, artwork, devices, or 3D objects. Connect it to a TV, monitor, or projector via HDMI, and you'll be able to stream live images of your materials to a big screen, skipping the need for a computer.
Note: VZ-R needs to be connected to a power source when used in HDMI mode. You can plug it into a wall outlet using any of your phone or tablet 5V/1A power adapter. Alternatively, you can connect it to a powered USB port of your TV, projector, or computer. A power bank will work too.
Use it in USB mode.
Benefit from its compatibility with different software.
VZ-R also features a USB connection for use with a computer (Mac, Windows PC, or Chromebook). When in USB mode, the live images captured will be streamed to your computer screen. You can then project the images to a large screen through a projector connected to your computer.
Capture stunning details with its 8 MP camera.
Be surprised at what you see.
Place your material under VZ-R and be surprised at how crisp and clear the images showed up! With its 8MP camera, you can capture even the tiniest details of your material.
Performance boost with fast focus, low noise, and excellent color reproduction.
With a Sony CMOS image sensor and a powerful Ambarella integrated system-on-a-chip (SoC), VZ-R offers enhanced performance in focusing speed, reproduction of colors, and noise reduction even under low-light environments. This enables you to teach or present with lesser disruptions and distortions.
USB Type-C port and glass fiber reinforced stand.
Better and lighter.
VZ-R comes with a USB Type-C port that is reversible, saving you the hassle of having to find the correct cable orientation for plugging in when you use it. Additionally, you'll find GVX-5H-a type of glass fiber reinforced thermoplastic-inside VZ-R's stand. GVX-5H is as strong as most metals, yet weighing far less than them. With it, you’ll enjoy increased durability as VZ-R is less likely to break from heavy daily usage. And talking about lightweight, at only 2.2 lbs, you’ll appreciate VZ-R's portability.
Swiveling head and multi-jointed stand.
Capture from different heights, angles, and orientations.
With a swiveling head and strengthened multi-jointed stand, you’re free to position VZ-R at different heights, angles, and various orientations for capturing your materials.
Small footprint.
Big impact.
Space is at a premium at your workplace? No worries, VZ-R's small footprint allows you to use it in tight spaces. You can even fold the unit together and transport it between classrooms, home or office.
Built-in LED light.
Light up when you need it.
VZ-R features a built-in LED light that gives you additional illumination for capturing material in dimly lit environments. It is ideal for use in classrooms or conference rooms that don’t have adequate lighting.
Tactile adjustment buttons at your fingertips.
Capture the perfect image easily.
Adjust real-time images instantly to better fit your needs using the buttons conveniently placed on VZ-R's body. You can rotate, apply video filters, adjust exposure, refocus, and so on. Plus, as each of the buttons has a unique tactile indicator, you can differentiate them easily with just a touch.
Size
D x W x H (when folded)
With base-4.57”x 4.25” x 11.85” (11.6 x 10.8 x 30.1cm)
Without base-3.07” x 1.57” x 11.42” (7.8 x 4.0 x 29.0cm)
Weight
2.2lbs (1.0kg)
Model and Color
Model
CDVH-03IP
Color
Emerald Green
Camera
8.0 Megapixel
Full autofocus lens
High definition resolutions-up to 3264 x 2448 (USB mode), and up to 1920 x 1080 (HDMI mode)
Up to 30 fps live video capture (at full HD)
Output
HDMI and USB
Max Shooting Area
10.6” x 18.9” (270 x 480mm) [16:9]
13.5” x 18.1” (344 x 460mm) [4:3]
Compatibility
Works with Mac, PC and Chromebook
Package Contents
Camera head and stand
Base
USB Type-C to Type-A cable (4.90ft/150cm)
Screwdriver
Screws x 4
