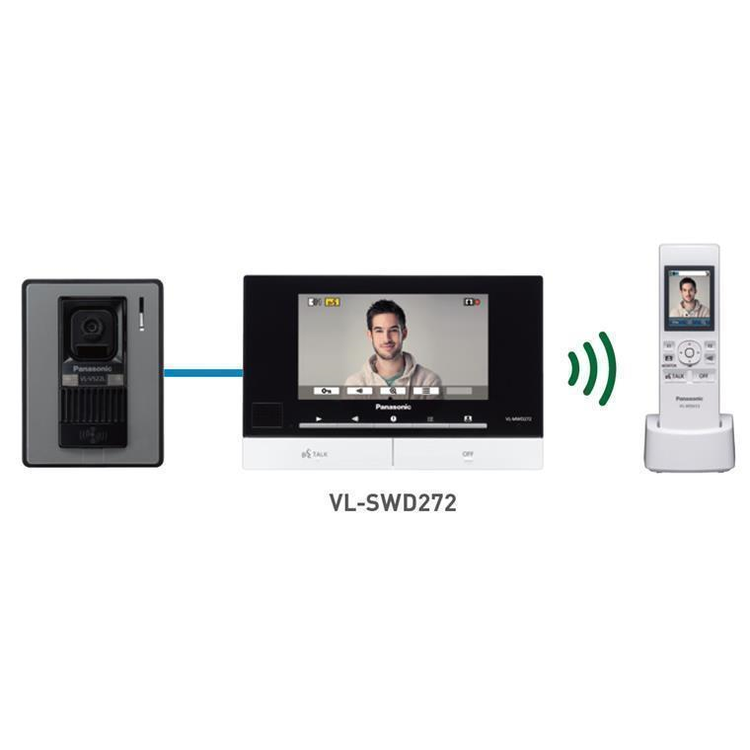

Panasonic VL-SWD272AZ video intercom system consists of 7-inch wide colour / WVGA (800 x 480 pixels) monitor, 2.2-inch wide colour / QVGA (320x240 pixels) DECT wireless handset and door station.
- Highly Expandable: up to 6 x 2.2 inch wide screen wireless handsets and 3 x 7-inch screen monitors. In addition, PBX connectivity is also supported
- Wireless handset with 2.2-inch screen works within the range of 100m from the main monitor and allows to respond to incoming call from the door/gate wherever you are
- 7-inch Screen: the main monitor and extension monitor have a 7-inch wide screen that offers easy viewing of wide vertical and horizontal views. Horizontally - approx. 87°, vertically - approx. 66°
- Voice Change Function: this function makes woman's voice (higher keys) sounds like a man's (lower keys)
- Electric Lock Release support for gate: the gate or door lock can be easily and quickly released using monitors or wireless handsets
- Picture Recording Function: the main monitor and extension monitor can record images from up to 50 calls or monitoring sessions. (up to 8 still images per visitor/ session)
- Night Vision with LED lights (illumination lamp): door station is equipped with LED lights (illumination lamp). It enables the colour display of visitors at a distance of about 50 cm at night.
Optional Accessories
Wireless Monitor
VL-WD613 (1 included with VL-SWD272)
Door Station
VL-V522L (1 included with VL-SWD272)
Monitor
VL-MD613 (1 included with VL-SWD272)
Maximum Connectable Units
Wireless Monitor
UP to 6 (1 included with VL-SWD501)
Wireless Monitor
*A total of up to 6 wireless sub monitors and extension monitors can be registered.
Door Station
UP to 2 (1 included with VL-SWD272)
Monitor
UP to 3 (not including main monitor)
Monitor
*A total of up to 6 wireless sub monitors and extension monitors can be registered.
Connectable Devices
Electric Lock Release Support
UP to 2 (user supplied)
PBX
Only Panasonic PBX
Convenience
Picture Recording
Internal memory: Up to 50 visitors/sessions (up to 8 still images per visitor/session)
Night Vision
Yes (Warm white LED lights, Infrared LEDs)
Touch Panel / Pan & Tilt
- / Yes
Voice Changer
Yes (only from the main monitor)
Intercom call
Intercom Call (between main monitor, sub monitor and extension monitor)
Monitor
Power source
100 - 240 V AC, 50/60 Hz
Power consumption
Standby : approx. 2.5W
Power consumption
During operation : approx. 10W
Dimensions (H x W x D)
Approx. 158 x 243 x 29.5 (mm)
Mass (weight)
Approx.825g (including mounting bracket & AC cable)
Mass (weight)
* The weight of the AC cable differs depending on the region.
Operating environment
Ambient temperature : 0? to + 40 ?, Up to 90 % RH (Relative Humidity) non condensing
Display size
7-inch, wide color / WVGA (800 x 480 pixcels)
Display language
English, Arabic
Talking method
Hands-free
Installation method
Wall mount (mounting bracket supplied)
Frequency range
1.88 GHz to 1.90 GHz
External material
ABS
Door Station
Power source
Supplied by the Main Monitor Station
Dimensions (H x W x D)
Approx. 131 x 99 x 36.5 (mm) *Excluding protruding sections
Mass (weight)
Approx. 200 g
Operating environment
Ambient temperature: Approx. -15 °C to +55 °C, Up to 90 % RH (Relative Humidity) non condensing
Operating environment
(tested up to -20 °C)
Viewing angle
Horizontally: Approx. 87 degree, Vertically: Approx. 66 degree
Installation method
Surface mount (mounting base supplied)
Image sensor/ Camera (pixel)
CMOS sensor (Approx. 0.3M pixels)
Minimum illuminance required
1 lx (within approx. 50 cm from the camera lens)
Lighting method
Warm white LED lights, Infrared LEDs
IP rating (INGRESS PROTECTION)
IPX3 *Water resistance is only assured if the doorphone is installed correctly according to the instructions in the Installation Guide, and appropriate water protection measures are taken.
External material
Flame retardant PC+ABS resin, Flame retardant ABS resin
Wireless Handset
Power source
Rechargeable Ni-MH (AAA x 2)
Dimensions (H x W x D)
Approx. 173 x 52 x 30 (mm) *Excluding protruding sections
Mass (weight)
Approx. 160 g (including the batteries)
Operating environment
Ambient temperature: 0 °C to +40 °C, Up to 90 % RH (Relative Humidity) non condensing
Display
2.2-inch colour / QVGA (320 x 240 pixels)
Frequency
1.88 GHz to 1.90 GHz
External material
ABS resin
Operating time
Standby use: approx. 80 hours *When used fully charged in an operating temperature of 20 °C.
Charging time
Approx. 8 hours *When the operating temperature is 20 °C. The charging time may increase when the operating temperature is lower than this.
Transmitting range
Approx. 100 m (line-of-sight distance from the main monitor)
Charger
Power source
AC adaptor (PNLV226)
Power source
Input: 220-240 V AC, 0.1 A, 50/60 Hz, Output: 5.5 V DC, 0.5 A
Power consumption
Standby: Approx. 0.4 W (when the sub monitor is not placed in the charger)
Power consumption
During charging: Approx. 1.4 W
Dimensions (H x W x D)
Approx. 43 x 81 x 76 (mm) *Excluding protruding sections
Mass (weight)
Approx. 70 g (excluding the AC adaptor)
Operating environment
0 °C to +40 °C, Up to 90 % RH (Relative Humidity) non condensing
External material
ABS resin
