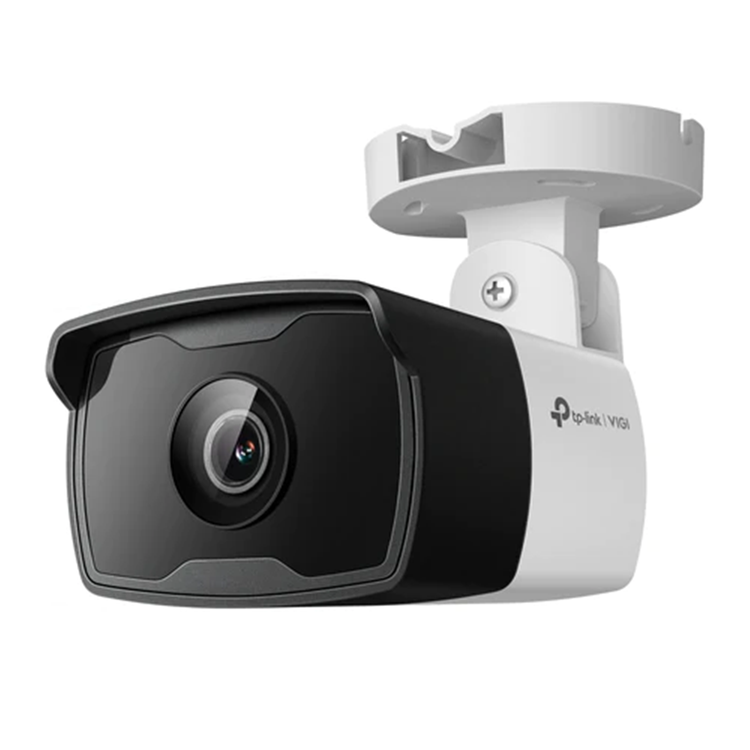

TP-Link VIGI C330I(2.8mm) VIGI 3MP Outdoor IR Bullet Network Camera
Looking for a higher resolution? It's right here.
3MP Super-High Definition
The VIGI C330I camera comes with 3MP-more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications
We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
Never miss a detail.
SmartVid-Smart Video Enhancement
VIGI's professional technologies process videos to greatly improve their quality which is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
IP67 for Better Protection
Capable of withstanding temperatures from -30-60 °C (-22-140 °F), VIGI performs well even in harsh environments with rain and dust.
Discover the best way to power your camera.
PoE/12V DC
Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
Choose the right lens for your security.
2.8/4/6 mm lens
Whether you need a wide-angle lens to cover enclosed spaces like elevators or a higher millimetre lens for longer distances in open spaces like parking lots, C330I comes with three different lens versions to better suit your security needs.
CAMERA
Image Sensor
1/2.8” Progressive Scan CMOS
Shutter Speed
1/3 to 1/10000 s
Slow Shutter
Yes
Minimum Illumination
Color: 0.01 Lux; 0 Lux with IR light
Day/Night Mechanism
IR Cut Filter
Day/Night Switch
Unified/ Scheduled/ Auto
LENS
Type
Fixed Focal Lens
Focal Length
2.8 mm/4 mm/6 mm
Aperture
2.8mm: F2.2
FOV
2.8 mm:
Horizontal FOV: 97.8°, Vertical FOV: 52.9°, Diagonal FOV: 117.9°
Lens Mount
M12
DORI Distance
2.8 mm:
Detect: 49 m (161 ft)
Observe: 20 m (67 ft)
Recognize: 10 m (32 ft)
Identify: 5 m (16 ft)
Angle Adjustment (Manual)
Range
Pan: -90° to 90°
Tilt: -90° to 90°
ILLUMINATOR
IR LED
Quantity: 2
Range: 30m
Wavelength: 850nm
White LED
N/A
Illuminator On/Off Control
Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution
2304 × 1296
Main Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
Resolution: 704x576, 640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control
CBR, VBR
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type
Main Profile/High Profile
H.264+
Main Stream Supported
H.265 Type
Main Profile
H.265+
Main Stream Supported
Video Bit Rate
Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image Settings
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable
by Client Software, Rotation(90°/270°)
Image Enhancement
BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range
DWDR
SNR
= 52 dB
Image Parameters Switch
Yes
Privacy Mask
Up to 4 Masks
ROI
1 Region
OSD Setting
Yes
AUDIO
Audio Communication
N/A
Audio Input
N/A
Audio Output
N/A
Audio Compression
N/A
Audio Sampling Rate
N/A
Environment Noise Filtering
N/A
Audio Bit Rate
N/A
NETWORK
Protocol
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF
Yes
API
ONVIF
Simultaneous Live View
3 Main Streams & 3 Sub-Streams
Client
VIGI App, VIGI Security Manager, Web UI
Web Browser
Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud
Yes
Security
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event
Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event
Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage
Message Push
Linkage Method
N/A
Output Notification
Message Push
INTERFACES
Network Interface
1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm
N/A
Reset Button
N/A
Power
DC Power Port
On-board Storage
N/A
Built-in Microphone
N/A
Built-in Speaker
N/A
Audio
N/A
GENERAL
Operating Temperature
-30–60 °C
Storage Temperature
-40–60 °C
Operating Humidity
95% or Less (Non-Condensing)
Storage Humidity
95% or Less (Non-Condensing)
Package Contents
VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Material
Plastic
Net Weight
0.21 Kg
Gross Weight
0.35 Kg
Power Supply
12V DC ± 5%, Max. 5 W, 5.5mm Coaxial Power Plug
PoE: 802.3af/at, class 0, Max. 5.5 W
Protection
IP67
Product Dimensions (L x W x H)
73× 174 × 71 mm
Certifications
CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
