http://www.tp-link.com/us/products/details/cat-5506_TL-WR802N.html
- 300Mbps wireless data rates is ideal for video streaming, online gaming and Internet calling
- Pocket-size - Ideal for home and travel use
- Supports Router, Repeater, Client, AP and hotspot operation modes
- Powered through a micro USB port by an external power adapter or USB connection to a computer provides flexibility for any situation
- Easy installation in minutes

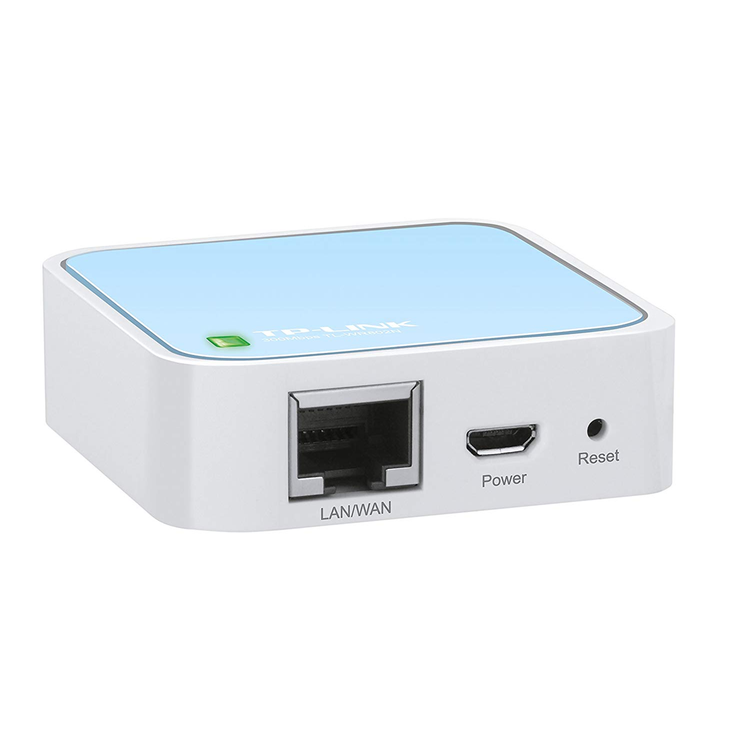

What is the TL-WR802N?
The TL-WR802N is designed for use with tablets, smart phones, handheld game consoles and other portable electronic wireless devices. The devices, which can be powered by an external power adapter or USB connection to a computer, can conveniently connect to the Internet and share the connection around an average sized room at 300Mbps. The device's tiny size makes it ideal for use on the road and is powerful enough to satisfy almost any basic wireless application requirement.
Portable and Compact - Ideal for Home and Travel Use
The TL-WR802N is the perfect travel companion for anyone who needs fast, easy Internet access on the go. Portable and compact design easily fits into a pocket or the palm of your hand. Simply plug a hotel room's ethernet cable into the port provided and enter a default password to instantly create a wireless hotspot in the room.
Flexible Power Supply - Easy to Take on the Road
TL-WR802N can be powered by an external power adapter or via a USB connection to a computer. When traveling, users can plug the TL-WR802N into computer's USB port and share Wi-Fi connection with family and friends.
Multiple Operation Modes
TL-WR802N supports Router (default), Repeater, Client, AP and WISP modes to enable various wireless applications to give users a more dynamic and comprehensive wireless networking experience.
WPA / WPA2 Encryptions
WPA/WPA2 encryption standards ensure your wireless connection is safe from intruders.
HARDWARE FEATURES
Interface
1 10/100Mbps WAN/LAN Port
1 Micro USB Port
1 Reset Button
Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H )
2.2 x 2.2 x 0.7 in. (57 x 57 x18 mm)
Antenna Type
On-Board
WIRELESS FEATURES
Frequency
2.4-2.4835GHz
Signal Rate
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity
270M: -65dBm @10% PER
130M: -70dBm @10% PER
108M: -82dBm @10% PER
54M: -73dBm @10% PER
11M: -82dBm @8% PER
6M: -86dBm @10% PER
1M: -90dBm @8% PER
Transmit Power
CE:
<20dBm(2.4GHz)
FCC:
<30dBm
Wireless Modes
Router Mode, Repeater Mode, Client Mode, AP Mode, WISP Router Mode
Wireless Functions
Enable/Disable Wireless Radio, WMM, Wireless Statistics
Wireless Security
64/128/152-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
SOFTWARE FEATURES
WAN Type
Dynamic IP/Static IP/PPPoE/PPTP/L2TP
Management
- Access Control
- Local Management
- Remote Management
DHCP
Server, Client, DHCP Client List, Address Reservation
Quality of Service
WMM, Bandwidth Control
Port Forwarding
Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS
DynDns, Comexe, NO-IP
VPN Pass-Through
PPTP, L2TP, IPSec (ESP Head)
Access Control
Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security
- DoS, SPI Firewall
- IP Address Filter/MAC Address Filter/Domain Filter
- IP and MAC Address Binding
OTHERS
Certification
CE, FCC, RoHS
Package Contents
- TL-WR802N
- Power Adapter
- USB Cable
- Ethernet cable
- Quick Installation Guide
- Resource CD
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8.1/8/7, MACOS, NetWare, UNIX or Linux
Environment
Operating Temperature:
0~40C (32~104F)
Storage Temperature:
-40~70C (-40~158F)
Operating Humidity:
0%~90% non-condensing
Storage Humidity:
5%~90% non-condensing
