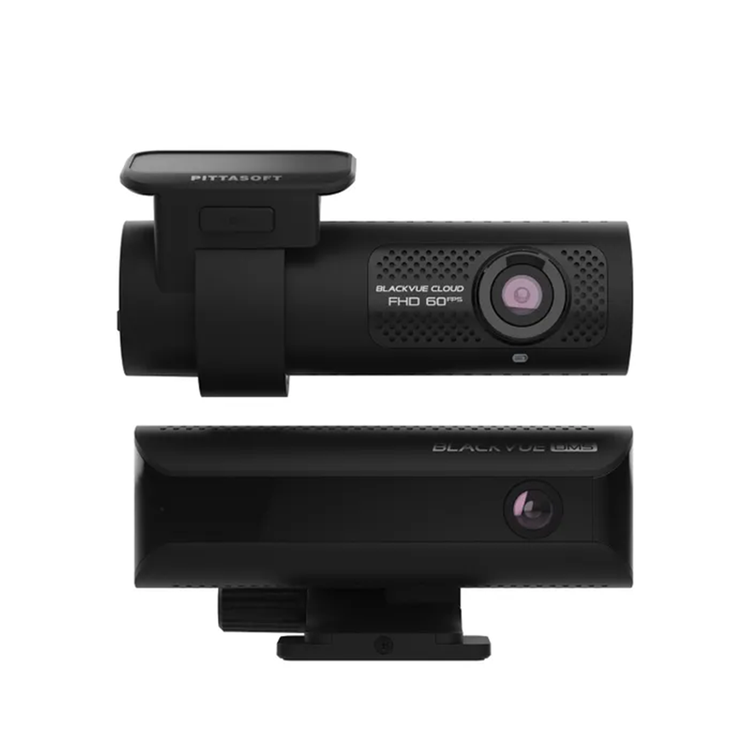

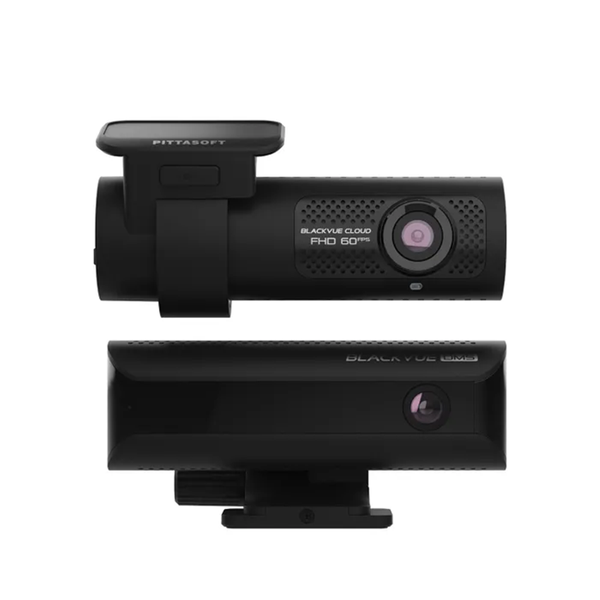

Full HD STARVIS Sensor Front and Interior
The front camera captures the road at 60 frames per second (139-degree view angle) and the infrared AI-powered DMC200 (115-degreee view angle) analyses and alerts the driver in case of drowsiness or distraction while recording clear video of the vehicle's interior.
Both cameras feature Full HD Sony STARVIS image sensors for best image quality under any light. The back-illuminated STARVIS image sensor produces clear details in both shadows and highlights thanks to high sensitivity and wide dynamic range.
AI-powered Driver-Monitoring Camera
The infrared Driver-Monitoring Camera (DMC200) is designed to improve driver's safety by helping prevent risky behaviours. Its algorithm can detect statuses such as"
- Drowsy driving
- Distracted driving
- Hand distraction
- Driver detected/undetected
- Mask on/off
AI-specific Driving Reports
- View driving behaviour trends at a glance
- When connected to BlackVue Cloud, the DMC200 generated additional driving report data under the label "inattentive driving"
- Those can be seen in the BlackVue App under Connect to cloud > Select your camera > Report tab. In the BlackVue Web Viewer (blackvuecloud.com), simply click the Report tab.
Channel
2CH
Highlights
Full HD (Front + Interior), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module, AI-powered Driver Monitoring System
Product Dimensions
Front: Diagonal 139°, Horizontal 116°, Vertical 61°
DMS: Diagonal 115°, Horizontal 95°, Vertical 49°
Rear Camera Connection
Coaxial cable
Memory Support
microSD card up to 256GB
Recording Modes
Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected)
* When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
Parking Mode
YES (hardwiring cable included)
Parking Mode Event Voice Notifications
YES
Imaging Sensor
Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Interior (DMS)
Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle
Front: Diagonal 139°, Horizontal 116°, Vertical 61°
DMS:Diagonal 115°, Horizontal 95°, Vertical 49°
Resolution Frame Rate
Front: Full HD (1920 x 1080) @ 60 fps
DMS: Full HD (1920 x 1080) @ 30 fps
* Frame rate may vary during Wi-Fi streaming.
Video Codec
H.264 (AVC)
Image Quality and Bitrate Front/Rear: Highest (Extreme)
25+10 Mbps
Highest: 12+10 Mbps
High: 10+8 Mbps
Normal: 8+6 Mbps
Format Free
YES (Adaptive)
Event File Overwrite Protection
YES (up to 50)
SD Card Failure Alert
YES
Scheduled Reboot
YES
Video File Extension
MP4
Wi-Fi
Built-in (802.11 b.g.n)
Cloud Compatible
YES
GPS
Built-in (Dual Band : GPS, GLONASS)
Microphone
Built-in
Speaker
Built-in
Impact Sensor
3-Axis Acceleration Sensor
LED Indicators
Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED
DMS: Detection LED (Green / Red / Blue)
Rear Camera IR Illumination
940nm (4 Infrared LEDs)
Button
Front (Touch sensor): Pressing the touch sensor triggers manual recording depending on the firmware settings.
DMS (Touch sensor): Press once to turn on/off beep alerts.
Operation Temperature
-20 °C - 70 °C (-4 °F - 158 °F)
Storage Temperature
-20 °C - 80 °C (-4 °F - 176 °F )
Input Power
Front: DC 12V-24V (3 pole DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND/Yellow: B+/Red: ACC)
DMS: DC 12V –24V (DC Plug: (Ø3.5 x Ø1.35), MAX 1A/12V)
Power Consumption Hour
Normal Mode (GPS On/2CH) : Avg. 570mA/12V
Parking Mode (GPS Off/2CH) : Avg. 520mA/12V
* Actual power consumption may vary depending on use conditions and environment.
Software
BlackVue Viewer
* Windows 7 or higher, Mac Sierra OS X (10.12) or higher
BlackVue Web Viewer: * Chrome 71 or higher, Safari 13.0 or higher
Application: BlackVue Application
* Android 8.0 or higher, iOS 13.0 or higher
Others : Adaptive Format-Free File Management System
Bluetooth
Built-in (V2.1+EDR/4.2)
