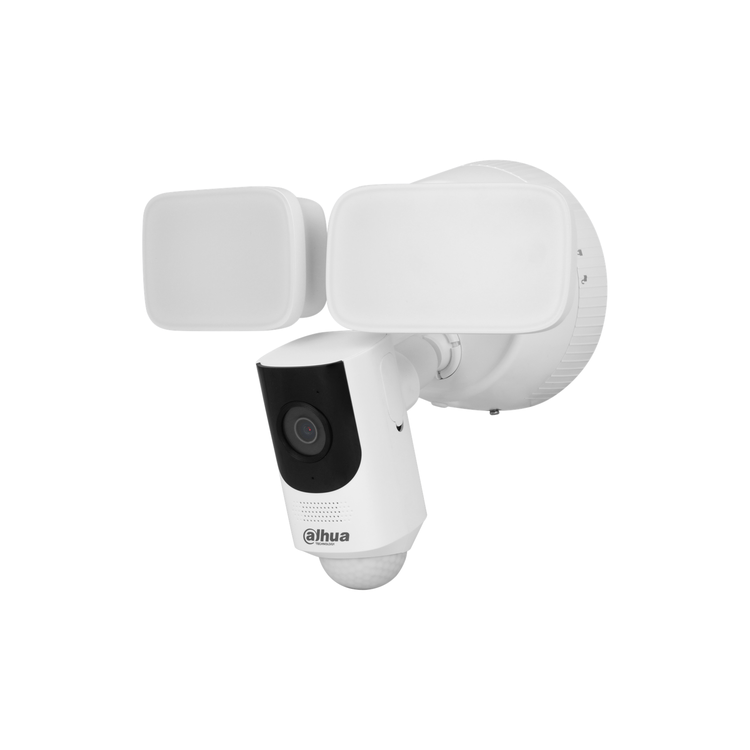

4MP Fixed-focal Floodlight Network Camera
Driven by industry-leading technology, Dahua Wireless Series network cameras are highly precise, producing high-quality images. They do not require network cables, making their installation easy to implement. It includes WiFi Series, 4G Camera, and 5G Camera to meet the needs of different wireless application scenarios.
With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes/residences, small-sized retail stores, and other small and medium-sized enterprises.
- 4-MP 1/3" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 4 MP (2560 × 1440)@25 fps/30 fps
- H.265 codec, high compression rate, ultra-low bit rate.
- SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- Built-in microphone and speaker for real-time communication.
- Active alarm with built-in 110 dB Siren.
- The built-in dual floodlights can switch between warm and cool color temperature and have 4 floodlights modes.
- Detects humans, vehicles and animals to reduce the occurrence of false alarms.
- SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- Dual-band 2.4 GHz and 5 GHz WiFi options, IEEE802.11a/b/g/n/ac.
- Supports max. 256 G Micro SD card and NVR storage.
- 100–240 VAC power supply, easy for installation.
- IP65 Protection.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Motion Detection
When moving objects appear in the monitoring image, Dahua Motion Detection technology triggers alarm or records.
Day/Night
Dahua Day/Night function provides color image when illumination is adequate; when illuminance is inadequate, it switches night mode and provides white and black image. It can guarantee that the networkcamera can work normally when illuminance changes.
Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.
Camera
Image Sensor
1/3" CMOS
Max. Resolution
2560 (H) × 1440 (V)
ROM
128 MB
RAM
512 MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s-1/100,000 s
Min. Illumination
0.005 lux @ F1.6 (Color,30 IRE)
0.0005 lux @ F1.6 (B/W,30 IRE)
0 lux (Illuminator on)
S/N Ratio
>56 dB
Illumination Distance
10 m (32.81 ft) (IR);
30 m (98.43 ft) (Floodlight)
Illuminator On/Off Control
Auto; Manual
Illuminator Number
1 (IR LED); 2 (Floodlight, color can be switched between warm and cool)
Floodlight Brightness
1500-2400 lm
Floodlight Color Temperature
3000K±200K (warm);
6000K±300K (cool)
Floodlight Modes
Motion Activation
Manual
Schedule
PIR Activation
Pan/Tilt/Rotation Range
Camera:
Pan: -85° to +85°
Tilt: -90° to +45°
Rotation: 0° to +360°
Floodlight:
Tilt: -90° to +90°
Rotation: -145° to +145°
PIR Sensor Distance
10 m (the height of the device is 3 m, placed at an angle of 30° from the horizontal)
PIR Detection Range
270°
Lens
Lens Type
Fixed-focal
Lens Mount
M12
Focal Length
2.8 mm
Max. Aperture
F1.6
Field of View
H: 98°; V: 55°; D: 115°
Iris Control
Fixed
Close Focus Distance
1.0 m (3.28 ft)
DORI Distance
Detect
61.2 m (200.79 ft)
Observe
24.5 m (80.38 ft)
Recognize
12.2 m (40.03 ft)
Identify
6.1 m (20.01 ft)
Video
Video Compression
H.264B; H.264; H.264H; H.265; MJPEG
Smart Codec
Smart H.265+; Smart H.264+
Video Frame Rate
Main stream:
2560 x 1440 @ (1-25 fps)
2560 x 1440 @ (1-30 fps)
Sub stream 1:
704 x 576 @ (1-25 fps)
704 x 480 @ (1-30 fps)
Sub stream 2:
640 x 480 @ (1 fps-25 fps)
640 x 480 @ (1 fps-30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability
3 streams
Resolution
4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 1M (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control
CBR/VBR
Video Bit Rate
H264: 32 kbps-8192 kbps;
H265: 32 kbps-8192 kbps
Day/Night
Auto(ICR)/Color/B/W
BLC
Yes
HLC
Yes
WDR
DWDR
White Balance
Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control
Auto
Noise Reduction
3D NR
Motion Detection
OFF/ON (4 areas, rectangular)
Region of Interest (RoI)
Yes (4 areas)
Smart Illumination
Yes
Image Rotation
0°/180°
Mirror
Yes
Privacy Masking
Yes
Audio
Built-in MIC
Yes
Built-in Speaker
Yes
Audio Compression
G.711a; G.711Mu; G.726; PCM
Alarm
Alarm Event
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; security exception; motion detection; video tampering; sence changing; SMD (human, animal and vehicle); audio detection; intensity change
Network
Wi-Fi
IEEE802.11a/b/g/n/ac 2.4-2.4835GHz & 5.18-5.85GHz
SDK and API
Yes
Cyber Security
Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
Network Protocol
IPV4; IPV6; ARP&Ping; TCP; UDP; HTTP; RTSP; HTTPS; DDNS; Email; SNMP; Multicast; Auto Registration; Wireless Qos; Wi-Fi setting; hotspot scanning; 802.1x; UPnP status; Bonjour; UPnP; device discovery
Interoperability
ONVIF; CGI; P2P; RTMP
User/Host
6 (Total bandwidth: 36 M)
Storage
Micro SD card (support max. 256 GB); FTP; SFTP; NAS
Browser
IE;
Chrome;
Firefox
Management Software
DMSS
Mobile Client
iOS; Android
Certification
Certifications
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
FCC ID: FCC PART 15C
Power
Power Supply
100–240 VAC
Power Consumption
Basic: 5.2 W (100–240 VAC )
Max. (Illuminator+IPC): 48.3 W (100–240 VAC )
Environment
Operating Temperature
–20 °C to +50 °C (–4 °F to +122 °F)
Operating Humidity
= 95%
Storage Temperature
–20 °C to +50 °C (–4 °F to +122 °F)
Protection
IP65
Structure
Casing
Metal + Plastic
Product Dimensions
270.7 mm × 217.2 mm × 195.6 mm (10.66" × 8.55" × 7.70") (L × W × H)
Net Weight
1.40 kg (3.08 lb)
Gross Weight
1.88 kg (4.14 lb)
