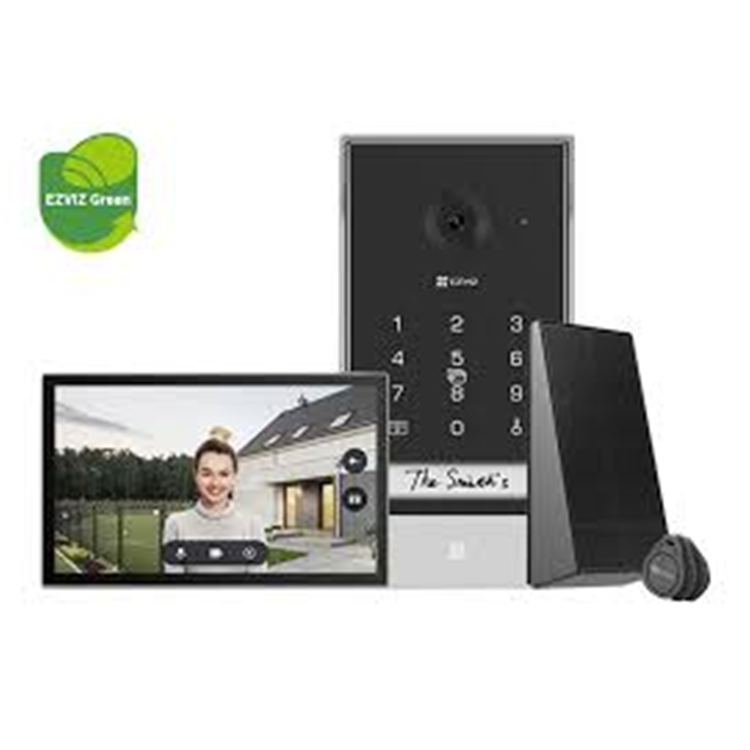

EZVIZ EP7 3MP/2K Outdoor Wire-Free Smart Battery Video Intercom with 7" Touch Screen
Solar-powered. Smartly connected. Easily controllable.
Taking a step further with its groundbreaking video doorphones, EZVIZ now introduces the EP7, a new innovation of the series that comes with a built-in keypad, removable battery, compatible solar charging panel, and enhanced Wi-Fi stability. Completely removing the wiring need between the indoor monitor and the outdoor doorphone, this sleek kit seamlessly merges plenty of smart features to enhance home security, while adapting easy installation and power supply to reduce as much hassle as possible – changing the game of traditional video intercoms. Future-ready and eco-conscious, the EP7 elevates your front door with effortless sophistication.
Built to be incredibly simple in installation
Even if you’re living in a historical house where electricity and network wiring aren’t planned for the big entrance, the EP7 can start working without big problems. Its outdoor doorphone comes with a large and detachable lithium battery that’s easy to charge and supports running on solar energy. Additionally, it communicates with your indoor monitor through your home Wi-Fi without any long, annoying connecting cable.
Ready for big houses and villas
The EP7 doorphone may be the best option you can find in the market to upgrade your old intercom system if you live in a spacious house. It allows you to control bot the car gate and the front door, and uses the Wi-Fi HaLow™ technology to stay strongly connected to the indoor monitor despite long transmission range and thick walls, while smartly optimizing its battery use.
A smarter, greener choice for your front door
Made for the outdoors, the EP7 doorphone is ready to not only withstand harsh weathers, but also harness the power of the nature.
Multiple ways to unlock and manage your home entry
01 Arriving home can be this easy
Entering your home is now faster and smoother than you’d imagine. Simply swipe open your door using a smart RFID card, or enter a passcode via the easy keypad. If you want to keep your pocket empty while out exercising, or if you are accidentally locked out of your house, the keypad ensures you can always get in easily.
02 Hassle-free unlocking to welcome any guest
The EP7 makes it a lot easier to grant access to visitors, even if you’re not home. You can either open the door for them remotely or create temporary passcodes or scannable QR codes for them to use on site – such features come in handy if you have a babysitter or dog walker that visits regularly.
Connect and control with an all-in-one touch screen
Operating as the main control panel, the 7-inch touch screen lets you customize your doorphone’s settings, facilitates distant communications, and stores motion-triggered snapshots and video recordings. When the doorbell is pressed, the indoor screen will simultaneously light up to let you know who’s outside.
Respond from afar with the EZVIZ App
Even if you’re not home, the EP7 makes sure you don’t miss a visitor. A plenty of features allows you to invite people in and turn away unwanted guests – all easily at your fingertips.
Capture details throughout the day
The EP7 is built to provide crisp, ultra-wide images to protect your property around-the-clock. With a wide 162-degree viewing angle and superior 2K lens, it captures your surroundings in vivid detail, keeping you up to date on events in your area. The EP7 works perfectly in low-light circumstances, providing infrared night vision of up to 5 meters.
Extra-Large, safe storage options that you can trust
You can secure your recorded videos on a local microSD card of up to 512 GB, or subscribe to EZVIZ CloudPlay for fully-encrypted cloud storage.
Elegant design elevates your front door
The EP7 has a sleek design with a simple, identical glossy black for both the keypad and the solar panel. Differentiating itself from traditional intercom systems, the EP7 satisfies the need for a minimalist yet elegant home environment. The indoor monitor screen makes the most of its touch interface to provide an intuitive user experience.
Dual options for better network connection
To maximize the connected experience with remote controls, you can connect the indoor monitor to either the 2.4 or 5 GHz band. Enjoy strong Wi-Fi with lower latency, larger bandwidth, and a stable signal.
Enhanced viewing pleasure with smaller video files
Compared to the prevailing H.264 video compression technology, H.265 creates a more fluid viewing experience with recorded videos. Meanwhile, you won’t have to worry about large video files taking up too much of your storage space – H.265 technology reduces their sizes by up to 50%7.
We do our best to protect data and privacy
We design the product to respectfully protect your data and privacy. You can also set up no filming zones to make sure recording only happens when it's appropriate and allowed.
Camera
Image Sensor
1/2.7" Progressive Scan CMOS (Supports low light sensitivity)
Lens
2.0 mm @ F2.2,viewing angle: 162° (Diagonal)
Day & Night
IR-cut filter with auto-switching, 850 nm infrared light × 2 (max. 6m)
Max. Resolution
2K, 2048 × 1296
DNR
2D / 3D DNR
Video Compression
H.265 / H.264
Frame Rate
Max: 15fps; Self-Adaptive during network transmission
Connection and Function
Open the door (Gate)
Support 2 wiring ports. 1-10m distance. The intercom panel provides a dry-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A
Unlock (Electric strike plate)
Support 2 wiring ports. 1-10m distance. The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 0.8A, otherwise should do as user manual.
Door Open Methods
1.RFID badge unlock (CPU card × 3 pcs) 2.Password unlock 3.App remote unlock 4.Indoor display unlock
Outdoor Doorbell Interface
Audio Input
Built-in high-sensitivity microphone
Audio Output
Built-in high-power speaker
Doorbell Button
Supports 1 button.
Name Card
Supports handwritten. 3 cards stickers included (1 sticker already on the intercom panel).
Terminal
Two wiring ports to connect gate. Two wiring ports to connect electric strike plate. Two wiring ports to connect the solar panel.
Password
Keypad 0-9 10-digial password keyboard; support 5 sets of 6-10 digital passwords; press the keypad to turn on the light, the light can be turn off
Network
Wi-Fi Standard
IEEE 802.11 AH
Frequency Range
904 M - 928 M (US), 865 M-867 M (EU)
Channel Bandwidth
8 M (U ), 2 M (EU)
Security
64 / 128 bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Wi-Fi HaLow Pairing
AP pairing
Max Transmission Distance for Intercom and monitor
Up to 350m in open area; up to 80m in two enclosed walls
General
Operation Conditions
-20°C to 60°C , Humidity 95% or less (non-condensing)
IP Grade
Waterproof IP65, with shield cover
Power Supply
Battery (7.3V), EZVIZ Doorbell Solar Panel
Battery Capacity
2600 mAh 7.3V (5200mAh 3.7V) rechargeable and detachable lithium battery 85 days at the rate of using 3 minutes per day, and open the electric strike plate 10 times
Product Dimension
175 × 86 × 34 mm
Interface
Audio Input
Built-in high-sensitivity microphone
Audio Output
Built-in high-power speaker
Button
Screen On / Off Button
Terminal
Two wiring ports to connect the power
Storage
Supports microSD card (Up to 512 GB)
Network Parameters
Interface Protocol
EZVIZ Cloud Proprietary Protocol
Protocol
EZVIZ Connect Protocol
Wi-Fi Parameters
Wi-Fi Standard
IEEE802.11b, 802.11g, 802.11n, 802.11ac
Frequency Range
2.4G: 2.4 GHz ~ 2.4835 GHz 5G: 5.15 GHz ~ 5.25 GHz
Channel Bandwidth
Supports 20MHz
Security
64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate
11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps
Function
Multiple ringtones
Up to 20 ringtones
Functions
Live view, playback, two-way talk, video call
General
Operation Conditions
-10°C to 45°C, humidity 95% or less (non-condensing)
Size
180 × 111 × 15 mm
Power Supply
12-24VDC 1A power supply, adaptor (12V 1A included in package)
Power Consumption
8W, Max. 24W
Performance Parameter
Power Voltage
8.1V max
Max. Power Current
240mA
Max. Power
1.2W
Operating Temperature
-20°C to 50°C
Product Dimension
126 × 59 × 44mm
IP Grade
IP65
General
Net Weight in Total
675g
Weight with Package
1865g
In the box
In the box
- Monitor
- Wall Bracket for Monitor
- Power Adapter for Monitor
- Intercom Panel (Doorbell) with a Weather-proof Shield
- Drill Template for Monitor
- Drill Template for Intercom Panel
- Screwdriver
- Name Card (×3)
- Badges (×3)
- Screw Kit (×2)
- Pin (×1)
- Wires and Wire Connectors
- Battery for Intercome Panel (× 1)
- USB Cable for Battery (× 1)
- Power Supply Jack Connector Cable (× 1)
- Solar Panel (× 1)
- Regulatory Information (×2)
- Quick Start Guide
