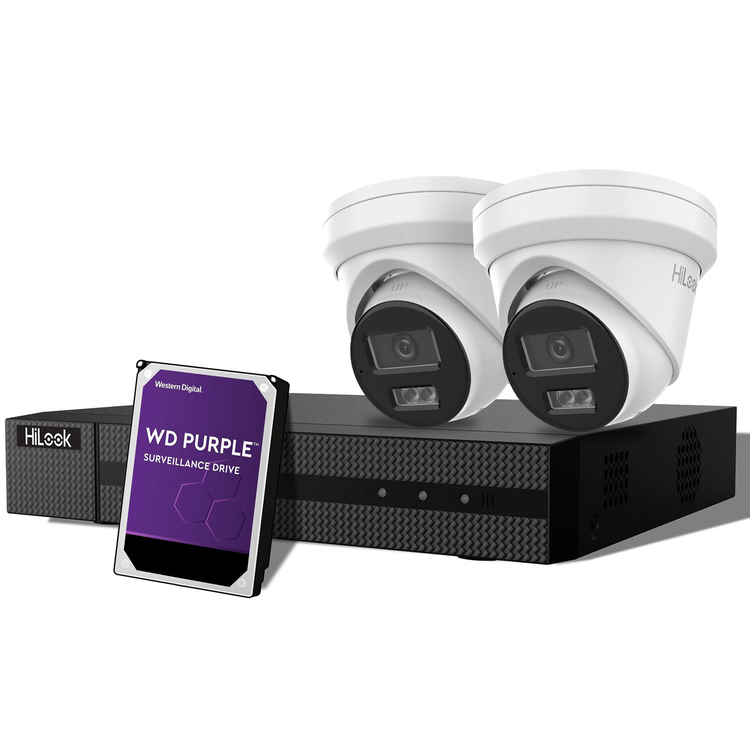

HiLook IK-2146TH-MM 2x 6MP Cameras, 4-Ch NVR Security Surveillance Kit
IK-4246TH-MM Network PoE Kit
- One pack contains everything required for small monitoring scenarios
- One 4-channel PoE NVR with decoding up to 1- ch @ 8MP
- 2* 6MP fixed turret network cameras with efficient
- H.265+ compression technology
- Easy installation with Power over Ethernet (PoE) technology
- HiLookVision for easy network management
- 1TB pre-installed HDD
Camera Features
- High-quality imaging with 6MP resolution
- Support Human and Vehicle Intelligent Detection
- Dual IR lights to enhance night vision
- Built-in microphone for real-time audio security
- Water and dust resistant (IP67)
NVR Features
- Up to 4-ch IP camera inputs
- HDMI Video output at up to 4K (3840 x 2160) resolution
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
- Up to 40Mbps incoming bandwidth
- Connectable to third-party network cameras
- Recording at up to 8MP resolution
- Supports live view, storage, and playback of the connected camera at up to 8MP resolution
- HDMI/VGA simultaneous output
Model
KIT Model
IK-4246TH-MM
Camera Model
IPC-T262H-MU(2.8mm)
NVR Model
NVR-104MH-C/4P
Camera
Image Sensor
1/2.4" Progressive Scan CMOS
Max. Resolution
3200 × 1800
Min. Illumination
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°
Lens Mount
M12
Iris Type
Fixed
Aperture
F1.6
DORI
DORI
2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz: 20fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 20 fps(1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile, Main Profile, High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR, VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
1 fixed region for main stream
Audio
Audio Type
Mono sound
Environment Noise Filtering
Yes
Audio Sampling Rate
8 kHz/16 kHz
Audio Compression
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Network
Security
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI, SDK
Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
User/Host
Up to 32 users, 3 user levels: administrator, operator, and user
Client
iVMS-4200, HiLookVision
Web Browser
Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Wide Dynamic Range (WDR)
120 dB
SNR
= 52 dB
Day/Night Switch
Day, Night, Auto, Schedule
Image Enhancement
BLC, HLC, 3D DNR
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Privacy Mask
4 programmable polygon privacy masks
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in Microphone
Yes
Reset Key
Yes
Event
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event
Line crossing detection and intrusion detection (support alarm triggering by specified target types (human and vehicle))
Linkage
Upload to FTP, send email, notify surveillance center, trigger capture
General
Power
12 VDC ± 25%, 0.41 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 6.5 W
Material
Metal
Dimension
Ø127.3 mm × 95.9 mm (Ø5.0" × 3.8")
Weight
Approx. 600 g (1.3 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
English, Ukrainian
General Function
Heartbeat, anti-banding, mirror, password protection, password reset via email
Approval
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-
3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
Safety
CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013
NVR
Video and Audio
IP video input: 4-ch
Up to 8 MP resolution
Incoming bandwidth
40 Mbps
Outgoing bandwidth
80 Mbps
HDMI output
1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
VGA output
1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video output mode
HDMI/VGA simultaneous output
CVBS output
N/A
Audio output
1-ch, RCA (Linear, 1 KO)
Two-way audio input
1-ch, RCA (2.0 Vp-p, 1 KO, using the audio input)
Decoding
Decoding format
H.265+/H.265/H.264+/H.264
Recording resolution
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback
4-ch
Capability
1-ch@ 8 MP (30 fps)/5-ch@ 1080p (30 fps)
Stream type
Video, Video & Audio
Audio compression
G.711ulaw/G.711alaw/G.722/G.726
Network
Remote connection
16
Network protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network interface
1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE
Interface
4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power
= 50 W
Supported standard
IEEE 802.3 af/at
Auxiliary Interface
SATA
1 SATA interface
Capacity
Up to 8 TB capacity for each disk
USB interface
Rear panel: 2 × USB 2.0
General
Power supply
48 VDC, 1.35 A
Consumption(without HDD and PoE off)
= 10 W
Working temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working humidity
10% to 90%
Dimension (W × D × H)
265 × 225 × 48 mm (10.2" × 8.9" × 1.9")
