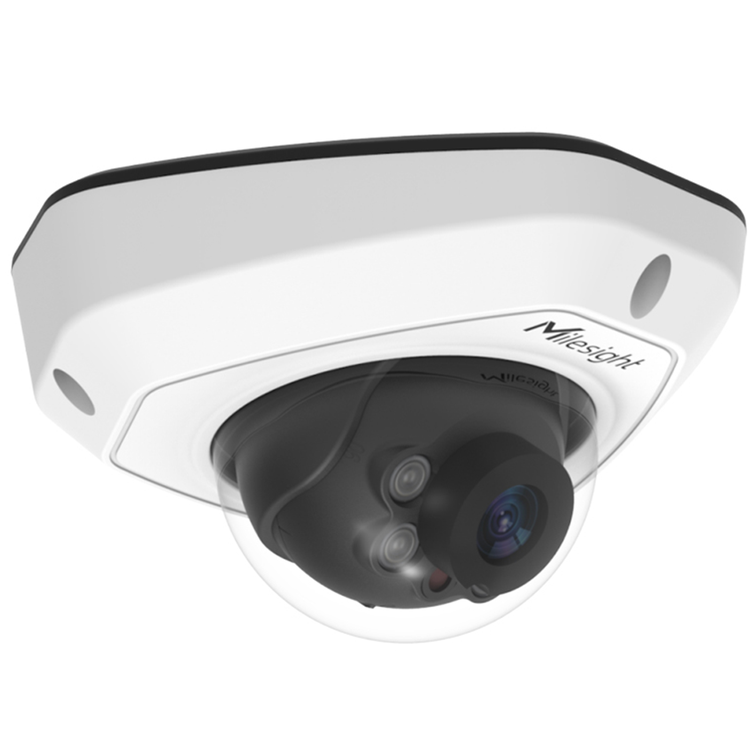

Milesight MS-C8173-PD 4K NDAA AI Vandal-proof Mini Dome Network IP Camera - Cable Out MS-C8173-PD
Milesight MS-C8173-PD 4K NDAA AI Vandal-proof Mini Dome Network IP Camera - Cable Out
The Milesight AI Vandal-proof Mini Camera Series feature an ultra-mini size, stylish design and easy installation. Featuring a 2.8mm fixed lens and an IR distance up to 30m, the Milesight AI Vandal-proof Mini Security Cameras not only aspire to protect your security with top-notch megapixel video quality, but also fit for your sleek decoration taste. Perfect for monitoring indoor and outdoor environments like home and offices. These cameras are perfect for mounting under a soffit around your home or business.
Milesight, as a high-tech surveillance solution provider and member of ONVIF, devotes to conform to ONVIF standards, delivering the most-advanced innovations and offering flexible choices for customers worldwide. Cameras support the following ONVIF Profiles: G & Q & S & T, API.
Milesight NDAA Compliant Products, which do not use or deploy critical components including SoCs produced by NDAA banned component vendors, are recommended for enterprises and critical applications where compliance is essential.
- Ultra Mini Size
- Fixed 2.8mm Lens
- IR Distance up to 30m
- Suitable for outdoor applications (IP67 & IK10)
- Built-in Microphone
- ONVIF Profile Support for profiles G & Q & S & T, API
- Flexible recording storage options including Network Attached Storage (NAS) and microSD Card up to 256GB
- Intelligent Analytics: Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
- vGRID SaferCity Platform Compliant
AI Video Analytics
Milesight AI Camera can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.
Superior Image Quality
With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions.
Latest IR LED Technology
Equipped with LEDs of the latest generation, the camera provides superior night-time images and delivers absolute performance in night vision surveillance.
SIP/VoIP Support
Milesight AI Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
IP67 & IK10
Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.
Product Code
MS-C8173-PD
Image Sensor
1/2.8? Progressive Scan CMOS
Min. Illumination
4K: Color: 0.012Lux @ F1.6, B/W: 0Lux with IR o
WDR
120dB Super WDR
Lens
2.8mm
Mount
M12
Field of View
4K: H110°/D126°/V60°(2.8mm)
IR Distance
Up to 30m
Day/Night Mode
Day/Night/Auto/Customize/Schedule
Max.Image Resolution
4K: 3840x2160
Video Compression
H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Privacy Masking
Up to 4 areas
ROI
Up to 8 areas
Image Setting
Brightness/Contrast/Saturation/Sharpness
Ethernet
1*RJ45 10M/100M Ethernet Port
Audio I/O
Built-in Microphone
Alarm I/O
N/A
Network Storage
NAS(Support NFS, SMB/CIFS), ANR
Protocol
IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Compression
G.711/AAC/G.722/G.726
Audio Sampling Rate
8/16/32/48KHz
Audio Bit Rate
16~256kbps
Two-way Audio
Yes
Video Analysis
Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Storage
Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function
BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP Support
Yes, Voice & Video-over-IP
Event Trigger
Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action
FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility
ONVIF Profile G & Q & S & T, API
Working Temperature
-40°C~60°C
Working Humidity
0~90%(Non-condensing)
Power Method
PoE (802.3af)
Power Consumption
4K: 4.4W MAX, 6.1W MAX (With IR on)
Housing
Up to IP67-rated for Weather-resistant Performance; Vandal-proof IK10-rated Metal Housing
Dimensions
118.5mm x 110.8mm x 65mm
Accessories
A01 Pole Mount, A03 External Corner Bracket, A71 Wall Mount, A73 Adaptor Plate, A74 Junction Box
