Overview
Sophisticated Design
Touch sensor keys are used in the monitor, achieving a fully flat design for our thinnest model yet. You can select from silver, white or mirror design. Particular attention has been paid to the materials and coatings used for the surface of the door phone, resulting in a gently curved, metallic-looking design. Also, the optional mount box can be used to install the door inside the wall, reducing the distance between the front surface of the door phone and the wall even further.
Easy-to-use
A 1.3-megapixel image sensor is used in the door phone to dramatically improve image quality. Furthermore, the "bell" indicator on the call button illuminates so visitors immediately know where to press even in dark environments. A dedicated E-lock release key is placed on the front of the monitor and a volume adjustment key is placed on the side, making it easy to operate while talking.
Highly Expandable
Up to 3 wide monitors (7-inch) can be connected to the main monitor. In addition, PBX connectivity is also supported.
7-inch Screen
The main monitor and extension monitor have a 7-inch wide screen that offers easy viewing of wide vertical and horizontal views.
Voice Change Function
This unique safety feature lowers the voice heard at the door phone so that a female's voice sounds like a male's.
Electric Lock Release Support for Gate
The gate or door lock can be easily and quickly released using monitors.
Picture Recording
The main monitor and extension monitor can record door phone images from up to 50 door phone calls or monitoring sessions.
Night Vision with
Doorphone is equipped with LED lights (illumination lamp). It enables the colour display of visitors at a distance of about 50 cm at night.
If you are unsure which intercom system is most suitable for you or you would like more information on any of our systems then please do not hesitate to give our friendly and knowledgeable team a call on 1300 736 970 and they will be able help you to choose the right solution for your needs.

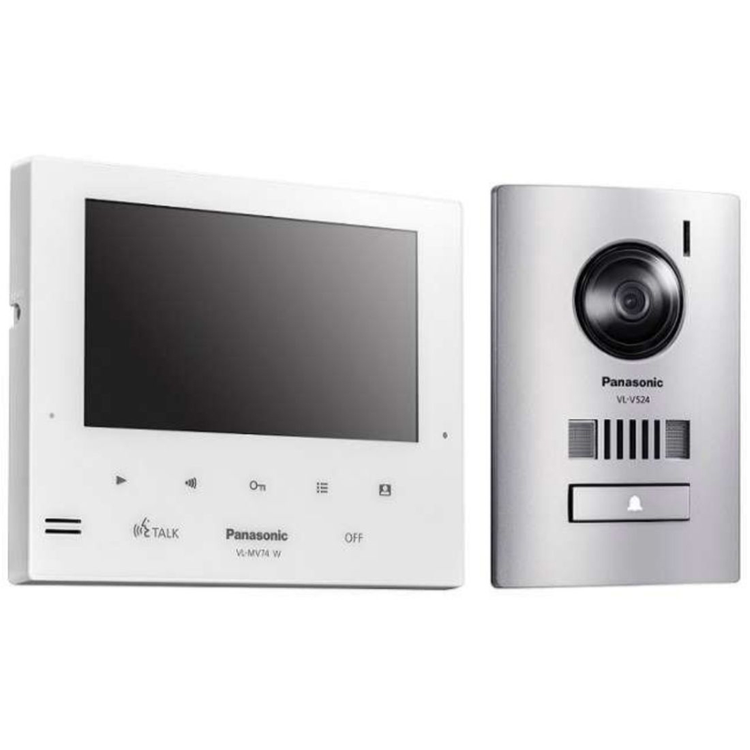

Model composition
Main Monitor(VL-MV754) x1, Door Station(VL-V524) x1, Power Supply Unit (VL-PS241) x 1
Maximum Connectable Units
Door Station
Up to 2 (1 included with VL-SV74)
Monitor
Up to 3 extension monitors (not including the main monitor)
Wireless Monitor
Wireless sub monitors NOT supported.
Wireless Repeater
Up to 2 (sold separately)
Connectable Devices
E-lock Release Support
Up to 2 (user supplied)
PBX
Only Panasonic PBX
Convenience
Picture Recording
Internal memory: Up to 50 visitors/sessions (up to 4 still images per visitor/session)
Night Vision
Yes (LED lights)
Voice Changer
Yes
Intercom call
Yes (between main monitor and extension monitor)
Monitor
Power source
Power supply unit (VL-PS241) 24 V DC, 0.6 A
Power consumption
Standby:1.9 W, Operating:12.7 W
*Measurement conditions: Monitor (1 pc.) with Door Station VL-V524 (1 pc.) is connected to VL-PS241
Dimensions (H x W x D)
Approx. 158 x 201 x 25 mm
Mass (weight)
Main monitor: 605 g
Power supply unit: 215 g (VL-PS241)
Operating environment
Ambient temperature: Approx. 0 ? to +40 ?, Relative humidity (non-condensing): up to 90 %
Display size
7-inch wide colour / WVGA (800 x 480 pixels)(Touch sensor keys)
Talking method
Hands-free
Installation method
Wall mount (mounting bracket supplied)
External material
Flame retardant ABS resin
Door Station
Power source
Power supplied by the main monitor
Dimensions (H x W x D)
Approx. 152 x 102 x 35.5 (21.5 *) mm *Excluding sections embedded into the wall.
Mass (weight)
Approx. 225 g
Operating environment
Ambient temperature: Approx. -15 ? to +55 ?, Relative humidity (non-condensing): up to 90 %
Talking method
Hands-free
Viewing angle
Horizontally: Approx. 85°
Vertically: Approx. 54°
Image sensor/ Camera (pixel)
1/3 inch CMOS sensor (Approx. 1.3 M pixels)
Minimum illuminance required
1 lx (within approx. 50 cm from the camera lens)
Lighting method
LED lights
IP rating (INGRESS PROTECTION)
IP44
*Water resistance is only assured if the doorstation is installed correctly according to the instructions in the Installation Guide, and appropriate water protection measures are taken.
Installation method
Surface mount (mounting base supplied), Flush mount (mount box sold separately)
External material
Flame retardant resin
