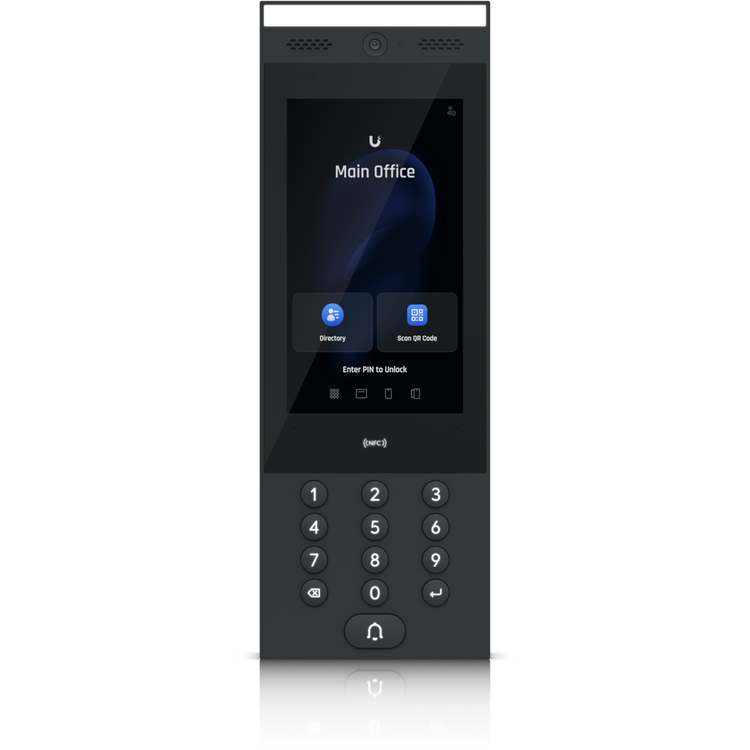

Ubiquiti UniFi Access Intercom with Camera and Keypad (UA-Intercom)
Intercom
Indoor/outdoor intercom terminal for managing residential and commercial building entry requests.
- Unlock using an NFC card, UniFi Identity mobile app, PIN code or QR code
- Directory and doorbell to request entry
- Pairs with multiple UniFi Intercom Viewers for remote access control
- Connects to UniFi Access Hub series using PoE
- Weatherproof (outdoor exposed -30 to 60° C)
Mechanical
Dimensions
324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1")
Weight
Device: 965 g (2.1 lb)
Bracket: 445 g (1 lb)
Enclosure material
Aluminum alloy, UV-stabilized polycarbonate, glass
Mount material
Powder-coated stainless steel
Mounting
Wall mount, adapter to the gooseneck pedestal (Included)
Surface angle mount, flush mount (Optional)
Sunshield kit (Optional)
Weatherproofing
IP65
Hardware
Networking interface
(1) GbE RJ45 port
Connectivity
Bluetooth 4.2
NFC
Power method
PoE
Supported voltage range
48V DC
Max. power consumption
13W
ESD/EMP protection
Air: ±15kV, contact: ±8kV
Sensors
Proximity sensor
ALS sensor
Camera
3264 x 2448, 8 MP
H: 79.4°, V: 97.5°, D: 118.2°
Display
177 mm (7") diagonal
Resolution
1024 x 600 (16:9)
Display luminance
Max. 1000 nits (typical)
Touch screen technology
Capacitive multi-touch
Microphone
Yes
Speaker
(1) 4 ohm, 2W
LEDs
(1) LCM low temperature indicator: orange (LCM turned off when it’s below -25° C but the system funtions normally)
(1) LED floodlight
(13) Keypad LED backlight
Button
(1) Factory-reset
NFC frequency
13.56 MHz
NFC read range
< 30 mm
NFC standards
ISO 14443A, 14443B, 15693
NFC technology
NFC Tag 1,2,3,4,5
MIFARE Classic
MIFARE Plus
MIFARE Ultralight
MIFARE DESFire
Ambient operating temperature
Device: -30 to 60° C (-22 to 140° F)
Display:* -25 to 60° C (-13 to 140° F)
*The display will turn off when the ambient temperature is above/below the display operation temperature, but other functions will remain functional. (Effective after firmware v 1.0.66)
Ambient operating humidity
5 to 90% noncondensing
Certifications
CE, FCC, IC
Software
Management application
UniFi Access: Version 1.22.17 and later
