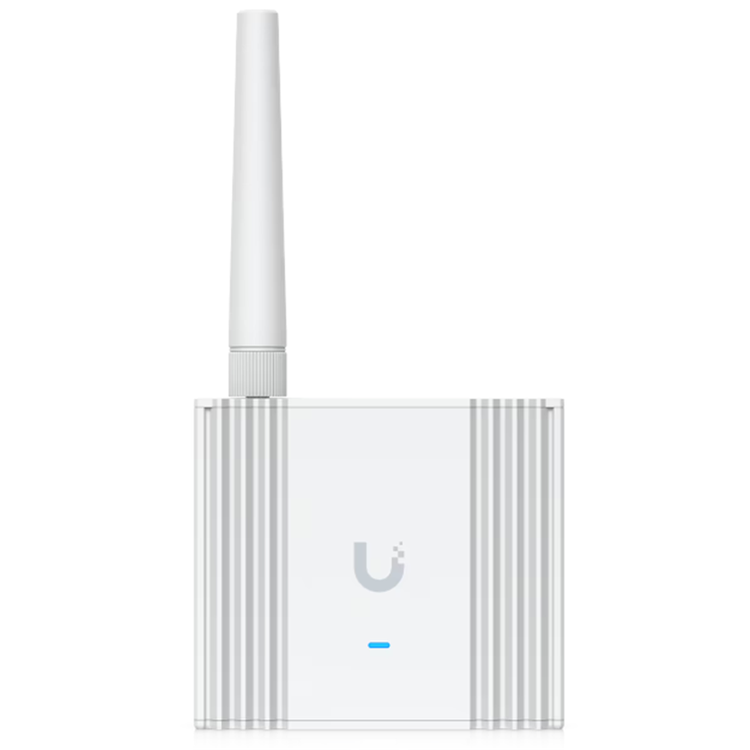

Ubiquiti UniFi Protect UP-SuperLink Wireless Gateway for UniFi Protect Sensors
The UP-SuperLink is a proprietary, long-range, low-latency wireless gateway designed to extend connectivity across large areas for the upcoming UniFi Protect SuperLink Sensors. It supports both Bluetooth 5.2 and a custom sub-GHz SuperLink protocol, offering versatile, reliable sensor networking.
Device Capacity: Supports up to 96 proprietary SuperLink sensors + up to 7 legacy UP-Sense (BLE) sensors simultaneously.
Low Latency: Built for fast response times suited to security, alarms, and real-time automation.
Power Efficiency: Sub-GHz design enables multi-year battery life in endpoint sensors.
Deployment
Mechanical
Dimensions
With antenna: 159.3 x 81.9 x 26 mm (6.3 x 3.2 x 1")
With DIN rail mount: 159.3 x 81.9 x 38.5 mm (6.3 x 3.2 x 1.5")
With wall mount: 159.3 x 81.9 x 30.5 mm (6.3 x 3.2 x 1.2")
Weight
179 g (6.3 oz)
Enclosure material
Polycarbonate, aluminum alloy
Mount material
Polycarbonate
Hardware
Networking interface
(1) 10/100 MbE RJ45 port
Management interface
Bluetooth® 5.2
SuperLink (Proprietary)
Power method
PoE
USB Type-C, 5V, 1A (Optional)
Max. power consumption
3.4W
ESD/EMP protection
Air: ± 8kV
Contact: ± 4kV
Antenna gain
Bluetooth: 3 dBi
SuperLink: 1 dBi
Max. TX power
Bluetooth: 10 dBm
SuperLink: 27 dBm
Max. client count
Bluetooth: 7
SuperLink: 96* (*SuperLink sensors are coming soon.)
LED
(1) Blue/white
Button
(1) Factory reset
Mounting
Wall, DIN rail
Ambient operating temperature
0 to 40° C (32 to 104° F)
Ambient operating humidity
10 to 90% noncondensing
Certifications
FCC, IC, CE
NDAA Compliant
Yes
Software
Web application
UniFi Protect
Mobile app
UniFi Protect iOS™ and Android™
