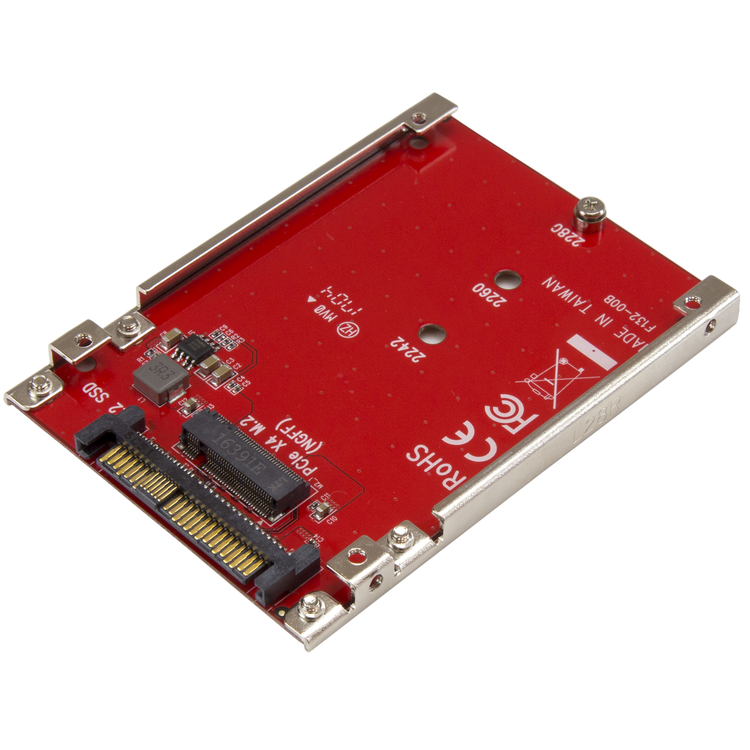

StarTech.com U2M2E125 M.2 to U.2 Adapter - For M.2 PCIe NVMe
M.2 Drive to U.2 (SFF-8639) Host Adapter for M.2 PCIe NVMe SSDs
Add the fast performance of an M.2 NVMe SSD to your desktop computer or server by converting the drive through a U.2 (SFF-8639) compatible interface on your motherboard. This PCI Express M.2 to U.2 adapter makes it easy to install an M.2 PCIe NVMe SSD into your desktop PC or server, and connect to the drive through an available U.2 (SFF-8639) compatible interface on your motherboard.
Upgrade your system cost-effectively
The M.2 to U.2 adapter is ideal for IT professionals, system integrators and installers, and enthusiasts who are building or upgrading a server or desktop computer. It supports one M.2 PCIe NVMe SSD (M-Key), providing a cost-effective way to add M.2 NVMe performance to your computer or server through an available U.2 (SFF-8639) compatible interface on your motherboard.
Easy installation
The M.2 to U.2 adapter works with all desktop PCs and servers that have an available drive bay or a U.2 (SFF-8639) compatible host interface. The adapter card is OS independent, so there are no drivers or software required for installation.
HARDWARE
Bus Type
PCI Express
Compatible Drive Types
M.2 (NGFF, M-Key, PCIe x4)
Drive Installation
Fixed
Fan(s)
No
Interface
U.2 (SFF-8639; PCIe x4)
Number of Drives
1
Supported Drive Height(s)
2242
2260
2280
CONNECTOR(S)
Drive Connectors
1 - M.2 (NGFF, M-Key, PCIe x4)
Host Connectors
1 - U.2 (SFF-8639, x4 PCIe, NVMe)
SOFTWARE
OS Compatibility
OS independent; No software or drivers required
ENVIRONMENTAL
Humidity
15% - 90% RH
Operating Temperature
+5°C to +50°C (41°F to 122°F)
Storage Temperature
-25°C to +70°C (-13°F to 158°F)
PHYSICAL CHARACTERISTICS
Color
Red
Max Drive Height
89.8 in [2280 mm]
Product Height
0.3 in [7 mm]
Product Length
3.9 in [100 mm]
Product Weight
1.3 oz [36 g]
Product Width
2.8 in [70 mm]
WHAT'S IN THE BOX
Included in Package
1 - M.2 drive to U.2 adapter
4 - adapter-mounting screws
1 - set of drive-mounting hardware
1 - quick-start guide
