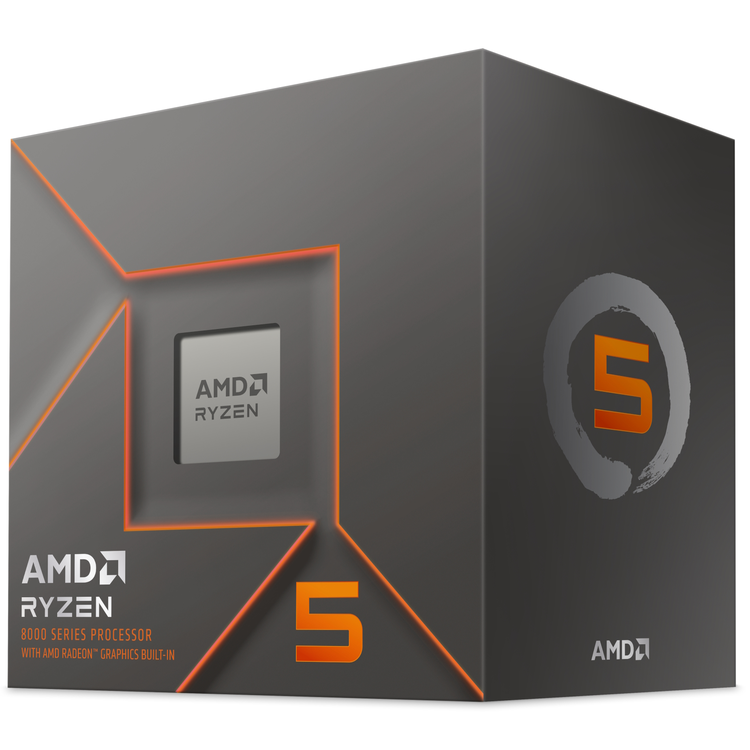

AMD Ryzen 5 8500G CPU 6 Core / 12 Thread - Max Boost 5.0GHz - 22MB Cache - AM5 Socket - 65W TDP - AMD Radeon 740M Graphics
PLEASE CHECK FOR MOTHERBOARD BIOS UPDATES BEFORE INSTALLATION
The Ultimate Processor
For incredible gaming, professional-grade productivity, and magical AI experiences.
Performance so fast you can focus on what you care about whether it's victory in the game or completing your project with time to spare.
Play Games without a Graphics Card
The latest AMD Ryzen G-Series processors feature best-in-class graphics built-in, so you can play virtually any PC game out there in high definition without the added expense of a graphics card. And if you want to take your gaming to the next level later, you can add a high-performance graphics card whenever you want.
Professional-Grade Productivity
Whether you are working in Microsoft Office, exporting video files, or visualizing an architectural dream in 3D, AMD Ryzen processors are built to beat the clock. With premium options that include time-saving connectivity like ultra-fast Wi-Fi® 6E, AMD EXPO™ technology, up to 32 processing threads, and dedicated video accelerators, elevate your experience with AMD Ryzen processors.
Upgradable for Years to Come
Invest in a platform that grows with your needs over time.
Your PC platform can be an investment, or a liability. AMD is the only processor manufacturer that has committed to years of future support for the cutting-edge Socket AM5 platform, so you will be able to upgrade to new processors we haven't even announced yet.
The newest AMD desktop platform is packed with state-of-the-art technologies including high-speed DDR5 memory, PCIe® 5.0 support, and AMD EXPO one-touch memory overclocking. If your PC needs the latest and greatest capabilities now and in the future, insist on AMD Ryzen processors.
Leadership Efficiency With Eco-Mode and New Low-Power Models
AMD Ryzen series processors can deliver up to 49% more performance at the same power level compared to last gen. Use even less power with exclusive Eco-Mode.
Control Your Processing Power
Tweak and tune your AMD Ryzen processor for personalized performance easily with one-click Precision Boost Overdrive.
Accelerate your gaming with AMD EXPO overclocked memory.
General Specifications
Platform
Desktop
Product Family
AMD Ryzen™ Processors
Product Line
AMD Ryzen™ 5 8000 G-Series Desktop Processors with Radeon™ Graphics
AMD PRO Technologies
No
Consumer Use
Yes
Former Codename
"Phoenix"
Architecture
2 x "Zen4", 4 x "Zen4c"
# of CPU Cores
6
Multithreading (SMT)
Yes
# of Threads
12
Max. Boost Clock
Up to 5.0GHz
Max Zen4c Clock
Up to 3.7GHz
Base Clock
3.5GHz
Zen4 Base Clock
4.1GHz
Zen4c Base Clock
3.2GHz
L2 Cache
6MB
L3 Cache
16MB
Default TDP
65W
AMD Configurable TDP (cTDP)
45-65W
Processor Technology for CPU Cores
TSMC 4nm FinFET
CPU Compute Die (CCD) Size
137mm²
Package Die Count
1
AMD EXPO™ Memory Overclocking Technology
Yes
Precision Boost Overdrive
Yes
Curve Optimizer Voltage Offsets
Yes
AMD Ryzen™ Master Support
Yes
CPU Socket
AM5
CPU Boost Technology
Precision Boost 2
Instruction Set
x86-64
Supported Extensions
AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Max. Operating Temperature (Tjmax)
95°C
*OS Support
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
Native USB 4 (40Gbps) Ports
2
Native USB 3.2 Gen 2 (10Gbps) Ports
2
Native USB 2.0 (480Mbps) Ports
1
PCI Express® Version
PCIe® 4.0
Native PCIe® Lanes (Total/Usable)
14 / 10
NVMe Support
Boot, RAID0, RAID1
System Memory Type
DDR5
Memory Channels
2
Max. Memory
256GB
System Memory Subtype
UDIMM
Max Memory Speed
2x1R: DDR5-5200
2x2R: DDR5-5200
4X1R: DDR5-3600
4x2R: DDR5-3600
Graphics Capabilities
Integrated Graphics
Yes
Graphics Model
AMD Radeon™ 740M
Graphics Core Count
4
Graphics Frequency
2800 MHz
DirectX® Version
12
DisplayPort™ Version
2.1
DisplayPort Extensions
HDR Metadata
Adaptive-Sync
UHBR10
DisplayPort Max Refresh Rates (SDR)
7680x4320 @ 60Hz
3840x2160 @ 240Hz
3440x1440 @ 360Hz
2560x1440 @ 480Hz
1920x1080 @ 600Hz
DisplayPort Max Refresh Rates (HDR)
7680x4320 @ 60Hz
3840x2160 @ 240Hz
3440x1440 @ 360Hz
2560x1440 @ 480Hz
1920x1080 @ 600Hz
HDMI® Version
2.1
HDCP Version Supported
2.3
USB Type-C® DisplayPort™ Alternate Mode
Yes
Multi-Monitor Support
Yes
Max Displays
4
AMD FreeSync™
Yes
Wireless Display
Miracast
Max Video Encode Bandwidth (SDR)
1080p630 8bpc H.264
1440p373 8bpc H.264
2160p175 8bpc H.264
1080p630 8bpc H.265
1440p373 8bpc H.265
2160p175 8bpc H.265
4320p43 8bpc H.265
1080p864 8/10bpc AV1
1440p513 8/10bpc AV1
2160p240 8/10bpc AV1
4320p60 8/10bpc AV1
Video Encode (HDR)
1080p60 8bpc MPEG2
1080p60 8bpc VC1
1080p786 8/10bpc VP9
2160p196 8/10bpc VP9
4320p49 8/10bpc VP9
1080p1200 8bpc H.264
2160p300 8bpc H.264
4320p75 8bpc H.264
1080p786 8/10bpc H.265
2160p196 8/10bpc H.265
4320p49 8/10bpc H.265
1080p960 8/10bpc AV1
2160p240 8/10bpc AV1
4320p60 8/10bpc AV1
AMD SmartAccess Memory
Yes
Security, Virtualization, and Manageability
AMD Enhanced Virus Protection (NX bit)
Yes
