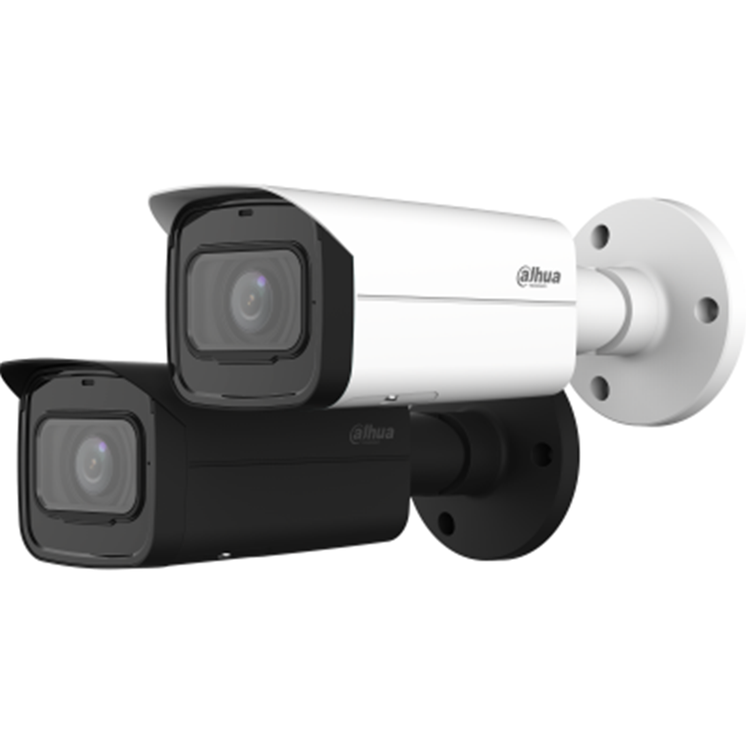

4MP IR Vari-focal Bullet WizSense Network Camera
- 4-MP 1/2.9" CMOS image sensor, excellent low luminance performance and high definition of images.
- Outputs max. 4 MP (2688 × 1520) @ 25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in IR LED, max. IR distance: 60 m.
- ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Alarm: 1 in, 1 out (Only - ZAS supports ); audio: 1 in, 1 out (Only - ZAS supports); max. 256 G Micro SD card. built-in Mic.
- 12 VDC/PoE power supply facilitates installation.
- IP67, IK10 (optional) protection.
- SMD 4.0, AI SSA.
Camera
Image Sensor
1/2.9" CMOS
Max. Resolution
2688 (H) × 1520 (V)
ROM
128 MB
RAM
512 MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Min. Illumination
0.005 lux @ F1.5 (Color, 30 IRE)
0.0005 lux @ F1.5 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio
>56 dB
Illumination Distance
Up to 60 m (196.85 ft)
Illuminator On/Off Control
Auto/Manual
Illuminator Number
4 (IR LED)
Pan/Tilt/Rotation Range
Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°
Lens
Lens Type
Motorized vari-focal
Lens Mount
f14
Focal Length
2.7 mm–13.5 mm
Max. Aperture
F1.5
Field of View
Horizontal: 104°–29°
Vertical: 54° –16°
Diagonal: 125° –33°
Iris Control
Fixed
Close Focus Distance
0.8 m (2.62 ft)
DORI Distance
Lens W; Detect 64.0 m (209.97 ft); Observe 25.6 m (83.99 ft); Recognize 12.8 m (41.99 ft); Identify 6.4 m (21.00 ft)
Lens T; Detect 84.0 m (275.60 ft); Observe 42.0m (137.80 ft); Recognize 42.0m (137.80 ft); Identify 21.0 m (68.90 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Intelligence
IVS (Perimeter Protection)
Tripwire, intrusion (support the classification and accurate detection of vehicle and human)
AI SSA
Yes
Quick Pick
With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
Smart Search
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec
Smart H.265+
Smart H.264+
AI Coding
AI H.265
AI H.264
Video Frame Rate
Main stream: 2688 × 1520 @ (1–25/30) fps
Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps)
Sub stream 2: 1920 × 1080 @ (1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Stream Capability
3 streams
Resolution
4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480)
Bit Rate Control
CBR/VBR
Video Bit Rate
H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps
Day/Night
Auto (ICR)/Color/B/W
BLC
Yes
HLC
Yes
WDR
120 dB
Scene Self-adaptation (SSA)
Yes
White Balance
Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control
Auto
Noise Reduction
3D NR
Motion Detection
OFF/ON (4 areas, rectangular)
Image Stabilization
Electronic Image Stabilization (EIS)
Region of Interest (RoI)
Yes (4 areas)
Defog
Yes
AFSA
Yes
Image Rotation
0°/90°/180°/270° (support 90°/270° with 2688 × 1520 resolution and lower)
Mirror
Yes
Privacy Masking
4 areas
Audio
Built-in MIC
Yes
Audio Compression
G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event
-ZAS: No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; external alarm; SMD; safety exception
-ZS: No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; SMD; safety exception
Network
Network Port
RJ-45 (10/100 Base-T)
SDK and API
Yes
Network Protocol
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
Cyber Security
Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI
User/Host
20 (Total bandwidth: 64 M)
Storage
FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser
IE: IE11
Chrome
Firefox
Management Software
SmartPSS Lite; DSS; DMSS
Mobile Client
IOS; Android
Certification
Certifications
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC:47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Port
Audio Input
1 channel (RCA port) (Only - ZAS supports)
Audio Output
1 channel (RCA port) (Only - ZAS supports)
Alarm Input
1 channel in: wet contact, 5 mA 3 V–5 VDC (Only - ZAS supports)
Alarm Output
1 channel out: wet contact, 300 mA 12 VDC (Only - ZAS supports)
Power
Power Supply
12 VDC/PoE (802.3af)
Power Consumption
Basic: 2.8 W (12 VDC); 3.6 W (PoE)
Max. (WDR + IR intensity + Intelligence): 7.9 W (12 VDC); 9.2 W (PoE)
Environment
Operating Temperature
–30 °C to +60 °C (–22 °F to 140 °F) /Less than 95% RH
Storage Temperature
–40 °C to +60 °C (–40 °F to 140 °F)
Protection
IP67
Structure
Casing
Metal
Product Dimensions
244.1 mm × 79.0 mm × 75.9 mm
(9.61" × 3.11" × 3.00") (L × W × H)
Net Weight
820 g (1.81 lb)
Gross Weight
1090 g (2.40 lb)
