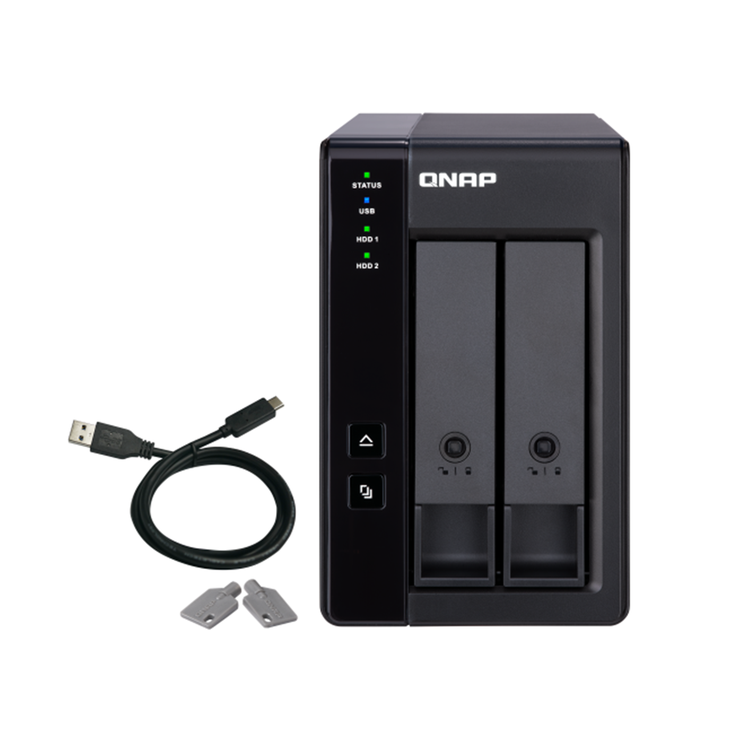

The TR-002 USB 3.1 Gen. 2 RAID expansion enclosure allows you to expand the capacity of your QNAP NAS and PC. The TR-002 can also be utilized as a DAS (Direct-attached Storage) device, allowing you to directly access its content just by connecting it via USB. The TR-002 features two 3.5-inch SATA drive bays with USB 3.1 Gen. 2 Type-C connectivity to bring you a highly-reliable and secure storage capacity expansion solution.
USB 3.1 Gen. 2 Type-C port for faster data transfer.
Supports up to two SATA drives.
Disk mode DIP switch to change from Hardware Control and Software Control configurations for setting RAID group.
Lockable hard drive trays to prevent accidental drive removal.
Eject button for disconnecting the TR-002 from a NAS or computer*.
*Requires the QNAP External RAID Manager utility.
Instantly back up files from the TR-002 to the NAS using the One Touch Copy button**.
**Requires a QNAP NAS with a one touch copy button when in external drive mode. This feature will be supported from Q2 2019.
Effective storage expansion with RAID Support
The TR-002 is an ideal storage expansion solution for PCs, especially for laptops which lack the ability to install higher-capacity drives. Featuring two 3.5-inch SATA drive bays and supporting RAID configuration, the TR-002 provides the ability to store a vast number of files and data and to ensure protection against potential drive failure.
Supports various RAID levels
The TR-002 supports various RAID configurations. Depending on your requirements, you can switch between hardware- or software-controlled RAID modes. Move the DIP switches to corresponding positions for your ideal RAID mode: Individual, JBOD, RAID 0 or RAID 1. You can also configure the RAID settings from your QNAP NAS, or by using the QNAP External RAID Manager utility on your computer.
Individual Mode
Treats every disk as separate storage space, allowing you to independently access each one.
JBOD Mode
All the disks are recognized as a single drive. This allows maximal storage utilization but provides no data protection.
RAID 0 Mode
Data is split amongst the drives. RAID 0 provides the fastest performance but does not protect data from drive failure.
RAID 1 Mode
Half of the total storage capacity is used to store data, and the other half keeps a copy of this data. This provides high data protection at the cost of only being able to use half the installed storage space.
Software Ctrl Mode
Use this mode to control the RAID configuration from your NAS or computer.
Flexible storage configuration and management
Compared with other RAID enclosures, the TR-002 provides software-controlled configurations for greater management flexibility. Users can configure RAID and monitor disk health using Storage & Snapshots Manager on a QNAP NAS, or by using the QNAP External RAID Manager utility on their computer.
Use Storage & Snapshots Manager to configure the TR-002 as a storage expansion unit for your QNAP NAS. In addition to RAID configuration, the NAS expansion storage mode supports various NAS functions, including storage pools and snapshots. By choosing external storage mode, you can use the TR-002 as a DAS.
Note: When connecting the TR-002 to a NAS, users can choose to use either the NAS expansion storage mode or the external storage mode.
The QNAP External RAID Manager is a utility for Windows and Mac users to set up, monitor, and view the status of the TR-002. Users can easily configure RAID groups on the TR-002 and quickly obtain the status of RAID performance and health at a glance.
CPU
Micro processor with hardware RAID
Drive Bay
2 x 2.5-inch or 3.5-inch SATA 6Gb/s, 3Gb/s
No HDD shipped with the item.
Drive Compatibility
3.5-inch SATA 6Gb/s, 3Gb/s hard disk drives
2.5-inch SATA 6Gb/s, 3Gb/s hard disk drives
2.5-inch SATA 6Gb/s, 3Gb/s solid state drives
You can only use one disk type (HDD or SSD) in a RAID group. Combining different types of disk in one RAID group is not supported. TR-002 does not support the QDA-A2AR/ QDA-A2MAR.
Hot-swappable
Yes
USB 3.0 port
1 x Type-C USB 3.1 Gen 2
Dimensions (HxWxD)
168.5 × 102 × 219 mm
Weight (Net)
1.37 kg
Max. number of HDDs/SSDs supported
2
Hard Drive Type
2 x 2.5-inch or 3.5-inch SATA 6Gb/s
Operating temperature
0 - 40 °C (32°F - 104°F)
Relative Humidity
5~95% RH non-condensing, wet bulb: 27°C (80.6°F)
Power Supply Unit
External Power Adapter, 36W, 100-240V
Power Consumption: HDD Sleep Mode
2.98 W
Power Consumption: Operating Mode, Typical
10.15 W
With drives fully populated
Fan
1 x 70mm, 12VDC
Sound Level
17.8 db(A)
Kensington Security Slot
Yes
System modes
Individual, JBOD, hardware RAID 0/1, Software control (Software control requires a QNAP NAS or Windows/macOS utility)
Note: You can only use one disk type (HDD or SSD) in a RAID group. Combining different types of disk in one RAID group is not supported.
Features
Disk modes: Individual, JBOD, RAID 0, RAID 1.
System, fan, and drive failure monitoring with LED and audio alerts.
System sleep* during USB cable disconnection and host device hibernation** or shut down.
*RAID rebuild delays the sleep.
**Some hosts may not be supported.
Minimum system requirements
QNAP NAS or PC with a USB Type-A or Type-C port
Minimum operating system requirements
QNAP NAS: QTS 4.3.6 (or later)
Windows: Windows 7 (or later), Windows Server 2012 R2 (or later)
Mac: macOS X 10.13 (or later)
Linux
System fan
5-speed automatic fan control
Software utility
Windows/macOS: QNAP External RAID Manager
Supported File Systems
NAS storage (EXT4), external hard drive (EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT*)
*Purchase of an exFAT driver license from the License Center is required.
