StarTech.com SAT2IDEADP SATA to 2.5/3.5 IDE Hard Drive Adapter
SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks
- Supports 40-pin (3.5in) and 44-pin (2.5in) IDE hard drives
- Durable, metal construction
- Compatible with most 3.5in StarTech.com SATA hard drive docking stations and duplicators
- Large capacity hard drive support, with 48-bit LBA
- Compliant with SATA revision 1.0
- Compatible with PATA (IDE) 66/100/133 MBps hard drives
- Mounting holes for both 2.5in and 3.5in form factor IDE hard drives

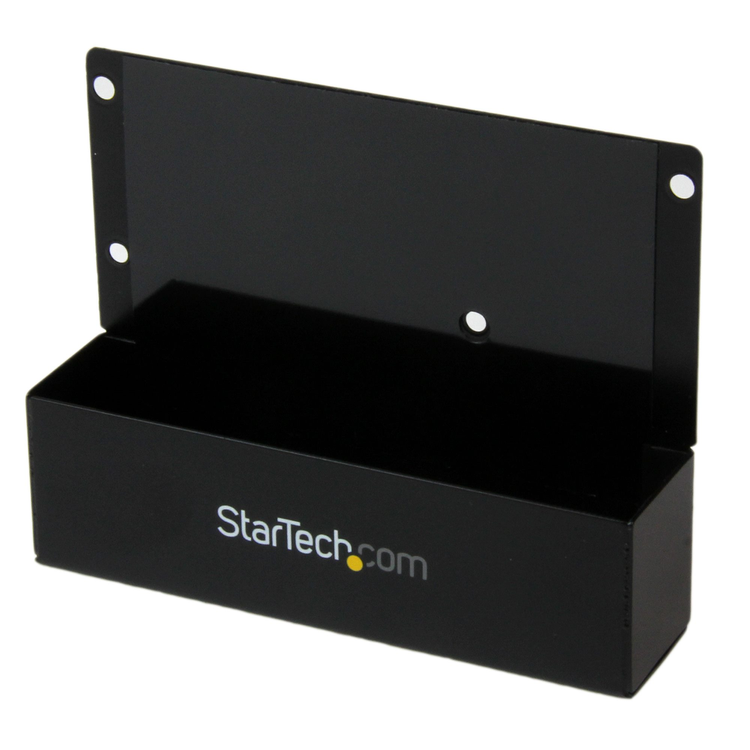

The SAT2IDEADP SATA to IDE hard drive adapter enables you to use your 2.5-inch/3.5-inch IDE-based (PATA) hard drives in most StarTech.com SATA-based HDD docking stations and drive duplicators. The SATA-IDE adapter features all-metal construction that ensures maximum durability, and is fully compatible with IDE hard drives up to ATA-133 (133MBps).
The unique mounting style of the SATA/IDE adapter enables it to be easily mounted to an IDE/ATA hard drive, and inserted into a SATA hard drive dock bay, for quick and easy retrieval of data from older HDDs. The adapter can also be used to install IDE hard drives into SATA-only desktop computers, or any other scenario that requires an IDE hard drive to be connected through Serial ATA.
The SAT2IDEADP hard drive adapter works with most StarTech.com SATA HDD Docking Stations and Duplicators.
Applications
- Use old IDE/PATA hard drives in a SATA hard drive docking station
- Install an IDE/PATA hard drive into a computer with only SATA ports
- Easily recover data from a 2.5in (laptop) IDE hard drive, by connecting it to a SATA-enabled computer or docking station
- Technicians who are required to work with a wide variety of old and new technologies
Connector(s)
1 - Connector Type(s)
SP4 (4 pin, Small Drive Power)
1 - Drive Connectors
LP4 (4 pin; Large Drive Power)
IDE (44 Pin, EIDE/PATA, 2.5" HDD)
IDE (40 Pin, EIDE/PATA)
1 - Host Connectors
SATA Power (15 pin)
SATA (7 pin, Data)
Environmental
Operating Temperature
5°C to 80°C (41°F to 176°F)
Storage Temperature
-40°C to 70°C (-40°F to 158°F)
Humidity
8% ~ 90% RH
Hardware
Number of Drives
1
Drive Size
2.5in & 3.5in
Compatible Drive Types
IDE (ATA)
Drive Installation
Fixed
Fan(s)
No
Chipset ID
JMicron - JM20330
LBA support
48-bit
Packaging Information
Package Height
2.0 in [52 mm]
Package Length
5.8 in [14.7 cm]
Shipping (Package) Weight
7.7 oz [218 g]
Package Width
4.3 in [11 cm]
Performance
Hardware Raid Supported
No
Physical Characteristics
Weight of Product
3.7 oz [104 g]
Colour
Black
Material
Steel
Product Length
4.0 in [10.1 cm]
Product Width
3.1 in [78 mm]
Product Height
1.0 in [26 mm]
Software
OS Compatibility
OS independent; No software or drivers required
What's in the Box
1 - Included in Package
SATA to IDE adapter
40-pin IDE cable
SP4 to LP4 Power cable
40-pin to 44-pin IDE cable with power
Package of mounting screws
Instruction Manual
