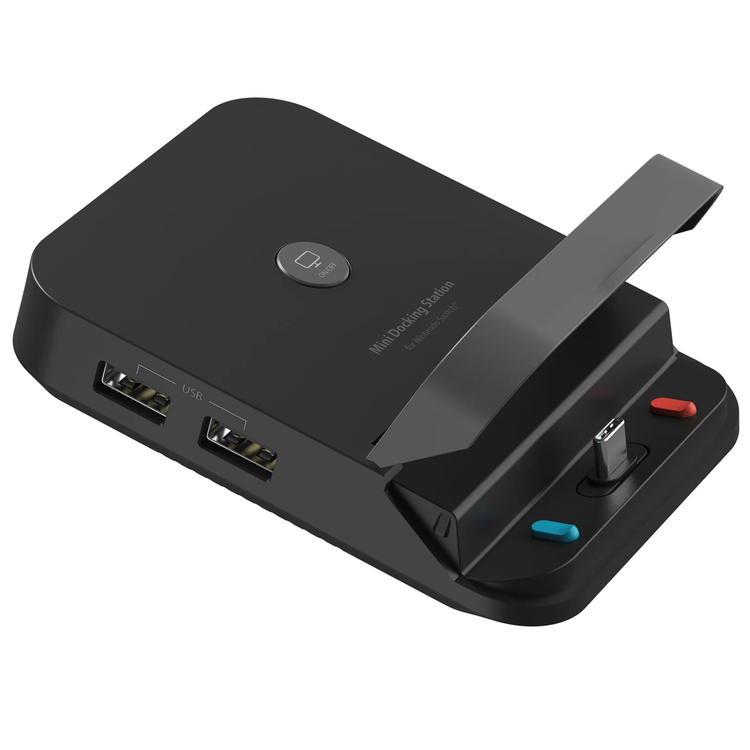

Add extra functionality to your Nintendo Switch™ with the JCD620 Mini docking Station. This mini dock allows you to project your console screen to your HDTV. Connect USB™ Type-A with accessories like a gaming controller or a keyboard. It is equipped with a high-speed Gigabit Ethernet port for network stability.
The JCD620 allows the Nintendo Switch™ to connect to a HDTV, resolution up to 1080p60Hz. The JCD620 also comes with a button that allows you to toggle between the Nintendo Switch™ display and the TV display when pressed. The docking station provides all these functions while being much smaller than the standard dock for the Nintendo Switch™.
It includes a USB-C® Power Delivery port that can be used to charge your console or smartphone when a USB-C® power adapter is connected. The HDMI™ port can also output 4K resolution when a 4K-capable device is connected.
- A dock with a miniature design for Nintendo Switch™
- Supports Nintendo Switch™ gaming mode so you can project your screen to an HDTV
- Equip with a screen turn on/off button
- Comes with the following ports: 1 x 4K HDMI™, 2 x USB™ Type-A, 1 x Gigabit Ethernet, 1 x PD 100W passthrough
- With a cover design for extreme portability
- Plug-and-play, no driver installation is required
A Portable Docking Station for Nintendo Switch™
Features compact design and multiple expansion ports, suitable for on-the-go
Supports 4K UHD Display
Compatible with 1080p and easily project your Nintendo Switch™ to an HDTV
*Note: Nintendo Switch™ only supports 1080p and requires original Nintendo Switch™ charger or 39W(or higher) USB-C® adapter for playing on an external display
One-touch Display Switching
Activate the tablet mode or TV output mode effortlessly by pressing the display switch button at the top of the dock
Connecting the Accessories Easily
Two built-in USB™ Type-A port for connecting the accessories for Nintendo Switch™
High-Speed Gigabit Ethernet Port
Allows you have stable and uninterrupted gaming
Allows For Pass-Through Charging With Original Nintendo Switch™ Charger
Ensuring your Nintendo Switch™ is safely powered while playing
USB-C® Smartphone Compatibility
Can be used with USB-C® smartphone without phone case such like iPhone® 15 series, Samsung® Galaxy™ S24 series, and other phones.
Plug-and-play, no driver installation is required
Compatible with Nintendo Switch™ and Nintendo Switch™ - OLED Model
Hardware
Audio Supported
Yes
Host Connector
1 - USB-C® Male
Network Interface
N/A
Ports
1 - HDMI™ 4K @ 30 Hz
*Nintendo Switch™ / Nintendo Switch™ OLED only support 1080p60Hz output
2 - USB™ Type-A 480 Mbps
1 - USB-C® with Power Delivery 3.0 upstream charging up to 100W
1 - Gigabit Ethernet
*Built-in a button for switching between console display and an external display
Power Source
Bus-powered or self-powered
Video Output
1 - HDMI™ Female
Performance
Audio Channel
N/A
Compatible Networks
10 / 100 / 1000 Base-T, auto-negotiating
Displays Supported
1
Max Data Transfer Rate
480 Mbps
Max Display Refresh Rate
60 Hz
Max Display Resolution
3840 x 2160 @ 30Hz
1920 x 1080 @ 60Hz
*Nintendo Switch™ / Nintendo Switch™ OLED only support 1080p60Hz outport
Power
Input Current
5A
Input Voltage
20V
Input Watt
100W (Max)
Output Current
4.75A
Output Voltage
20V
Output Watt
95W (Max)
Power Consumption
= 500 mA
Power Delivery
Up to 100W via USB-C®
Physical Specifications
Cable Length
N/A
Color
Black/Grey
Enclosure Type
ABS Plastic
Operating Temperature
30 to 106°F (-1 to 41°C)
Product Depth
0.8 in./21 mm
Product Height
4.1 in./104 mm
Product Weight
4.9 oz./138 g
Product Width
3.1 in./80 mm
Storage Temperature
0 to 155°F (-17 to 68°C)
Package Contents
1 - Mini Docking Station for Nintendo Switch™ (JCD620)
1 - Quick Installation Guide (QIG)
