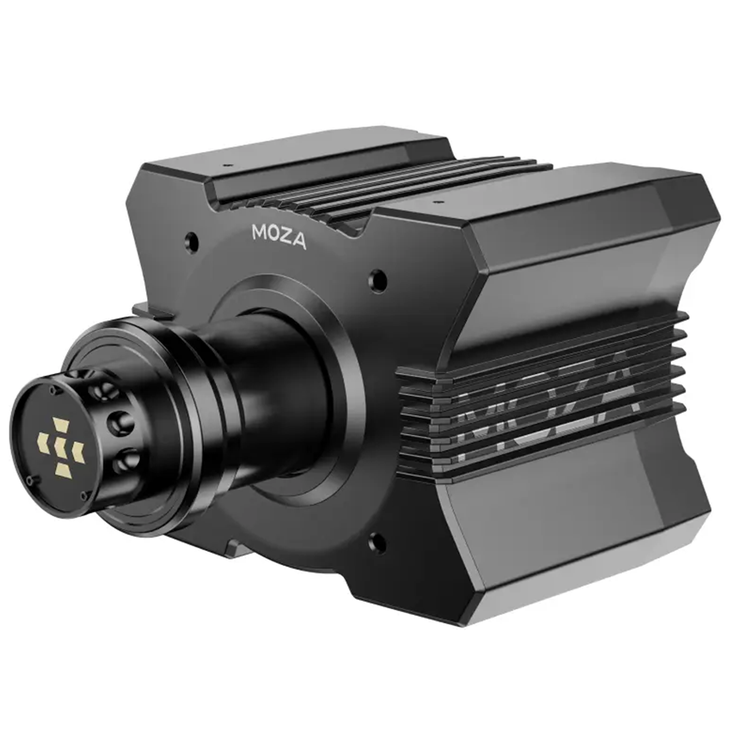

9 N·m of Torque from a Direct Drive Servo Motor
The R9's 9N·m of torque can simulate a full range of steering forces and car handling characteristics.
21-Bit Magnetic Encoder
With 280MHz High-Performance Processor Divides each full rotation into 2,097,152 precise steps Delivers microscopic 0.00017° resolution Enables ultra-smooth control feel and instant response Reproduces exceptionally detailed force feedback
High Torque Density
Optimized slot-fill copper windings High-permeability silicon steel core NdFeB permanent magnets for maximum output
18-Slot/16-Pole Configuration
Multi-slot/pole design minimizes torque ripple Enhanced damping for smoother feedback Delivers precise and detailed steering response
Wide Torque Range
Low back-EMF design Maintains consistent torque at high RPM Eliminates abrupt torque drop-off
Smart Temperature Control System
Our advanced system continuously monitors the temperature of the motor and electronic components and employs intelligent temperature control strategies to deliver stable and reliable performance in all circumstances.
Aviation Grade Aluminum Alloy Housing
Unmatched quality and durability. The MOZA R9's whole housing is made of aviation grade aluminum alloy.
Industrial Conductive Slip Ring
The base and the steering wheel are connected through a automotive-grade conductive slip ring with a life span of over 5 million revolutions. The unique patented design has extremely high stability and durability while achieving infinite high-speed rotation.
APP Cloud Control
The settings of the wheel base, steering wheel, pedals, etc. can be modified through the MOZA APP. Settings can be imported with one click onto new simulators.
Compact Design
The integrated motor design results in a compact size that still retains a standard 4 hole bottom mount pattern. It can be easily installed onto the vast majority of dedicated rigs and floorstands. In smaller spaces the base can be assembled with a desktop clamp, saving space whilst providing a convenient and enjoyable driving experience anytime, anywhere.
Platform
PC
FFB Drive System
Direct Drive
MOZA Pit House Control
Support
Max Wheel Rotation
90~2700°
Housing Material
Aviation Grade Aluminum Alloy
Color
Black
Peak Torque
9 Nm
Peak Power
180W
Input Voltage
110V~220V AC —> 36V DC
USB Refresh Rate
1000Hz
Encoder Resolution
21-bits
Indicator
YES
App Functions
Supported
Quick Release
Supported
Connection Ports
Power, DC Input, E-stop, USB, Dash, Shifter, Handbrake
Box Contents
R9 Wheel Base, User manual, Warranty card, Power supply, USB cable, Toolkit
Mounting Method
Bottom mount
Side Mount Option
With optional side mount bracket
Desk Clamp
Optional
Emergency Stop Switch
Optional
Online Firmware Upgrade
Applicable
Firmware Update
Applicable
