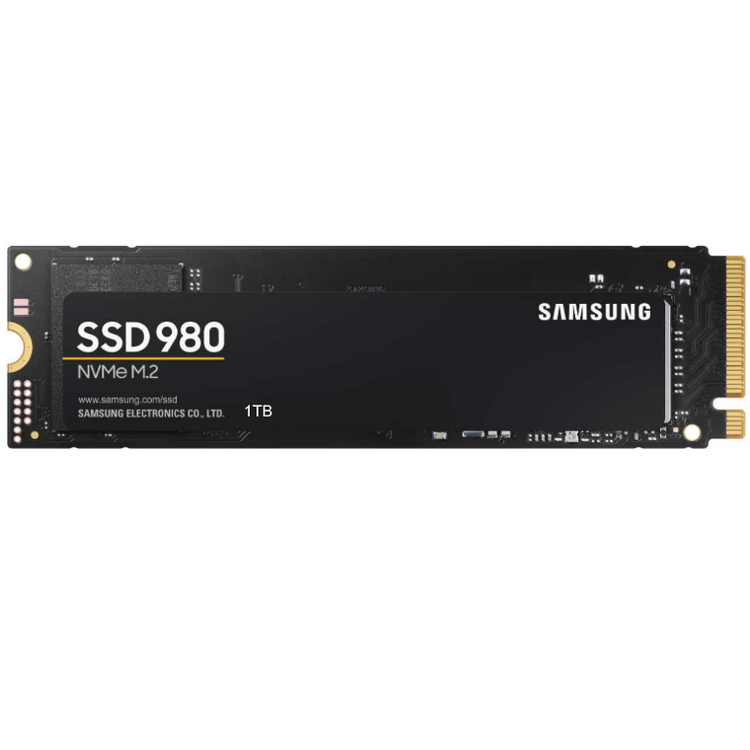

Samsung NVME SSD 980 - The Smart Choice for NVMe Performance
Samsung is pleased to introduce to you, the newest Samsung V-NAND SSD for client PCs, the Samsung SSD 980 with Samsung's latest 3-bit MLC V-NAND and in-house controller.
Solid NVMe Performance
Samsung NVMe SSD 980 delivers up to 3,500 MB/s and 3,000 MB/s for sequential read and write respectively.1) The performance of 980 is remarkable since this provides outstanding NVMe performance of PCIe 3.0 with DRAMless architecture. Thanks to the Host Memory Buffer (HMB) feature, and upgraded Intelligent TurboWrite 2.0, users can experience the supreme performance for even longer time than the predecessor 970 EVO.
1) Performance may vary depending on SSD's firmware, system hardware & configuration and other factors.
Proven Reliability
The 980 boasts proven endurance with up to 600 terabytes1) 2) written. Advanced thermal control solutions enhance performance with reduced heat risk. Dynamic Thermal Guard (DTG) technology proactively minimizes overheating, and a heat spreader with an integrated thin copper film dissipates heat more efficiently. A nickel coating on the controller also helps to dissipate heat faster during heavy workload use in order to ensure the high levels of quality and reliability for which Samsung is known.
1) All documented endurance test results are obtained in compliance with JESD218 standards. Please visit www.jedec.org for detailed information.
2) TBW is based on the 1TB capacity.
Optimized Efficiency with whole renovation
Samsung has re-designed every corner of the product from the circuit architecture to passive/active elements. As the result of this optimization, 980 shows an outstanding power efficiency, which means that it shows solid performance even with a low power consumption. 980 provides 54% better power efficiency (Performance/Watt), compared to that of 970 EVO.
Enhanced Software with Full Power Mode support
With the update of Magician 6.3 in March, 980 will support the new feature called Full Power Mode. With this new feature, 980 runs at the peak level for nonstop, consistent high performance. Additionally, 980 features Samsung Data Migration Software, which helps users to move their data easily.
Usage Application
Client PCs
Interface
PCIe Gen 3.0 x4, NVMe 1.4
Hardware Information
Capacity 1)
1TB
Controller
Samsung in-house Controller
NAND Flash Memory
Samsung V-NAND 3bit MLC
DRAM Cache Memory
-
Dimension
Max 80.15 x Max 22.15 x Max 2.38 (mm)
Form Factor
M.2 (2280)
Performance2) 3)
Sequential Read
up to 3,500 MB/s
Sequential Write
up to 3,000 MB/s
QD1 Thread 1 - Random Read
up to 17K IOPS
QD1 Thread 1 - Random Write
up to 54K IOPS
QD 32 Thread 16 - Random Read
up to 500K IOPS
QD 32 Thread 16 - Random Write
up to 480K IOPS
Power Consumption 4)
Idle (ASPT on)
up to 45mW
Active (Average) - Read
up to 4.5 W
Active (Average) - Write
up to 4.6 W
L1.2 mode
up to 5 mW
Reliability
Temperature - Operating
0°C to 70°C (Measured by S.M.A.R.T. Temperature. Proper airflow recommended)
Temperature - Non-Operating
-40°C to 85°C
Humidity
5% to 95% non-condensing
Shock - Non-Operating
1,500G(Gravity), durationL 0.5ms, 3 axis
Vibration - Non-Operating
20~2,000Hz, 20G
MTBF
1.5 million hours
Other
Supporting Features
TRIM (Required OS support), Garbage Collection, S.M.A.R.T.
Data Security
AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667)
Model Name
MZ-V8V1T0
Box Contents
Samsung SSD 980 1TB
Warranty Statement
Notes
1) 1GB = 1,000,000,000 bytes by IDEMA. A certain portion of capacity may be used for system file and maintenance use, thus the actual available capacity may differ from the labeled capacity.
2) Sequential and random performance measurements are based on IOmeter1.1.0. Performance may vary based on SSD's firmware version, system hardware & configuration. Test System: Intel(R) Core(TM) i7-6700K CPU @ 4.00GHz, DDR4 2133MHz 8GBx2 OS-Windows 10 Pro 64bit Asrock Z-170 Extreme7+
3) Sequential and random write performance was measured with Intelligent TurboWrite technology being activated. Intelligent TurboWrite operates only within a specific data transfer size. Performance may vary depending on SSD's firmware, system hardware & configuration and other factors.
4) Power consumption is measured with IOmeter1.1.0 version with AMD Ryzen 7 3700X 8 Core @3.6GHz, DDR4 8GBx2, OS-Windows 10 Pro 64bit, Chipset-GIGABYTE-X570-AORUS MASTER
