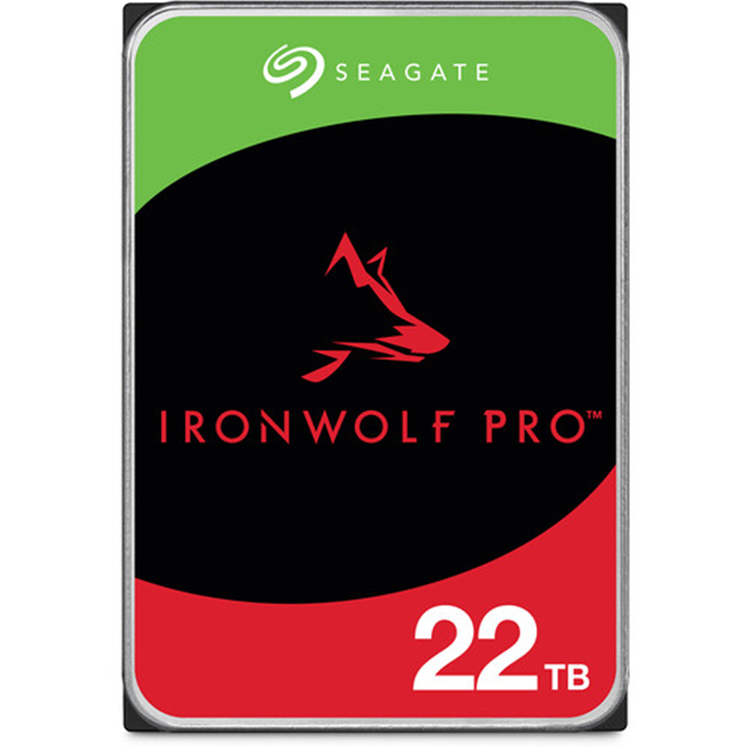

Seagate 22TB IronWolf Pro 7200 rpm SATA III
Designed for use in 1-16 bay NAS environments within commercial and enterprise settings, the 22TB IronWolf Pro 7200 rpm SATA III 3.5" Internal NAS HDD from Seagate is built to withstand 24/7 operation, or 8760 hours per year. This 22TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 7200 rpm, a 3.5" form factor, and a 512MB cache, providing users with ample storage capacity with data transfer speeds of up to 285 MB/s. The IronWolf Pro also has an MTBF rating of 2.5 million hours, a workload rate of up to 550TB per year, and an annualized failure rate (AFR) of 0.35%. Seagate includes a limited 3-year Data Recovery Service that helps you retrieve damaged data in the event of a mechanical error, accident, or natural disaster, and overall protection is provided by a limited 5-year warranty.
- 22TB Storage Capacity
- 3.5" Form Factor
- SATA III 6 Gb/s Interface
- 512MB Cache
- 7200 rpm
- Up to 285 MB/s Data Transfer Rate
- 2.5 Million Hours MTBF
- Workload Rate: 550TB per Year
- 0.35% Annualized Failure Rate (AFR)
- Seagate Rescue Data Recovery
Optimized for NAS with AgileArray
AgileArray is built for dual-plane balancing and RAID optimization in multi-bay environments with advanced power management
Reduced Lag Times
Improved performance means reduced lag times or downtime for users during high traffic times on the NAS
IronWolf Health Management
IronWolf Health Management focuses on prevention, intervention, and recovery
Seagate Rescue Data Recovery
IronWolf Pro comes with extra peace of mind for most mechanical, accidental, or natural disasters. With a 90% success rate of in-house recovery, Seagate has your back with an included 2-year Rescue Data Recovery plan
Rotational Vibration (RV) Mitigation
IronWolf Pro comes standard with RV sensors to maintain high performance in multi-bay NAS enclosures
Multi-User Environments
IronWolf Pro provides a workload rate of 300TB per year. Multiple users can upload and download data to the NAS server, knowing IronWolf Pro can handle the workload, whether you are a creative professional or a small business
Cache Memory
IronWolf Pro provides 512MB of cache memory, allowing your NAS to serve data faster
1.2 Million Hours MTBF | Limited 5-Year Warranty
This represents an improved total cost of ownership (TCO) over desktop drives with reduced maintenance costs
Designed for 24x7 Performance
Access the data on your NAS at virtually any time, whether remotely or on site
Best-Fit Applications
- 1-16 bay business network attached storage (NAS)
- Backup, archiving, and disaster recovery
- On-premise private cloud
- Virtual storage
HDD Specs
Heads
20
Platters
10
Areal Density
1260 Gb/in²
Disk Sector Format
512e
Noise Level
26.0 dB (Active)
20.0 dB (Idle)
Reliability / Data Integrity
Annualized Failure Rate (AFR)
0.35 %
Encryption
None
Endurance (Total Bytes Written)
550 TB
Load/Unload Cycles
600,000
Mean Time Between Failures (MTBF)
2.5 Million Hours
Non-Recoverable Read Errors per Bits Read
1 in 1015
Electrical
Power Draw
7.9 W (Active)
6.0 W (Idle)
1.2 W (Standby)
Supported Voltage
5 VDC, 12 VDC
Current
2.0 A at 12 VDC
Environmental
Operating Temperature
32 to 149°F / 0 to 65°C
Storage Temperature
-40 to 158°F / -40 to 70°C
Operating Shock
40 G / 2.0 ms
Storage Shock
200 G / 2.0 ms
Operating Vibration
12 G / 10 to 1500 Hz
Storage Vibration
2.27 G / 10 to 500 Hz
Operating Humidity
5 to 95% (Non-Condensing)
Storage Humidity
5 to 95% (Non-Condensing)
Operating Altitude
-1,000 to 10,000' / -304.8 to 3048 m
Storage Altitude
-1,000 to 40,000' / -304.8 to 12,192 m
General
Dimensions
5.8 x 4 x 1" / 147.3 x 101.6 x 25.4 mm
Weight
1.51 lb / 0.68 kg
