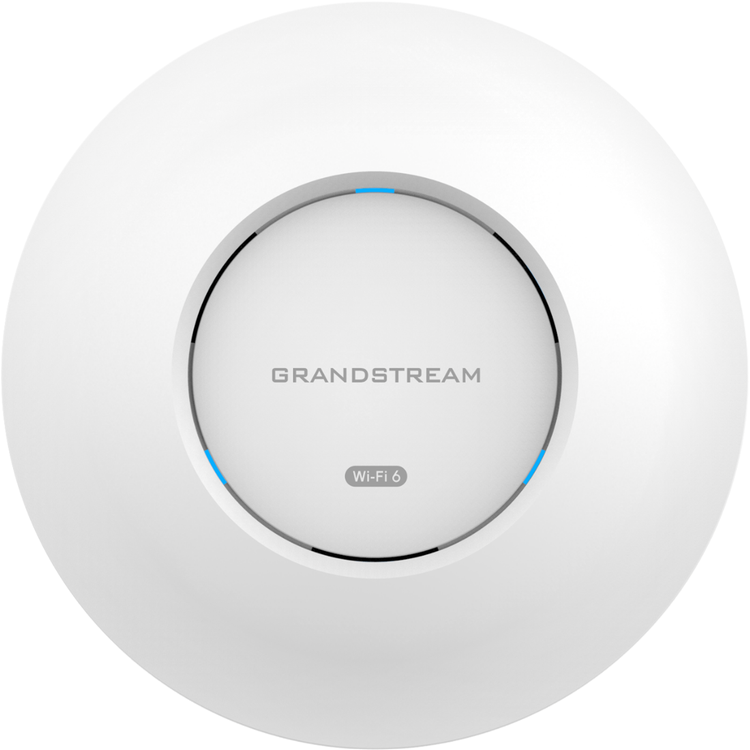

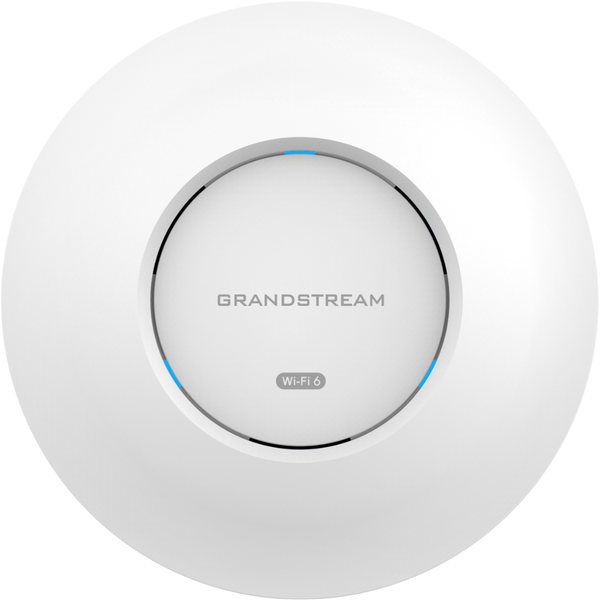

Grandstream GWN7660 802.11ax Wi-Fi 6 access point and offers dual-band 2x2:2 MU-MIMO Access Point
The GWN7660 offers dual-band 2x2:2 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7660 uses a controller-less distributed network management design in which the controller is embedded within the product's Web user interface. The GWN7660 is also supported by GWN.Cloud and GWN Manager, Grandstream's cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi -Fi deployments and offers a seamless connection with Grandstream's Wi-Fi capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 256 concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, GWN7660 is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density.
- 1.77Gbps aggregate wireless throughput and 2x Gigabit Ethernet ports
- Dual-band 2x2:2 MUMIMO with DL/UL OFDMA technology
- Up to 175-meter coverage range
- Supports 256 concurrent Wi-Fi client devices
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Self-power adaptation upon auto detection of PoE or PoE+
- Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premise based software controller
Manufacturer's Code
GWN7660
Wi-Fi Standards
IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 6)
Antennas 2 dual band internal antennas;
2.4GHz: gain 3dBi, 5 GHz: gain 3dBi
Frequency Bands
2.4GHz radio: 2412 - 2484 GHz / 5GHz radio: 5180 - 5825 GHz
Maximum TX Power 5G:
22dBm, 2.4G: 24dBm
SSIDs
32 SSIDs total, 16 per radio (2.4ghz and 5 ghz)
Power and Green Energy Efficiency
PoE 802.3af/ 802.3at; Maximum Power Consumption: 9W
Coverage Range
Up to 175 meters *coverage range can vary based on environment
Wi-Fi and System Security
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
Concurrent Clients
256+
Network Interfaces
2 x autosensing 10/100/1000 Base-T Ethernet Ports
Network Protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
802.11e/WMM, VLAN, TOS
Network Management
Embedded controller can manage up to 50 local GWN APs; GWN.Cloud offers a free cloud management platform for unlimited GWN APs; GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Compliance
FCC, CE, RCM, IC
