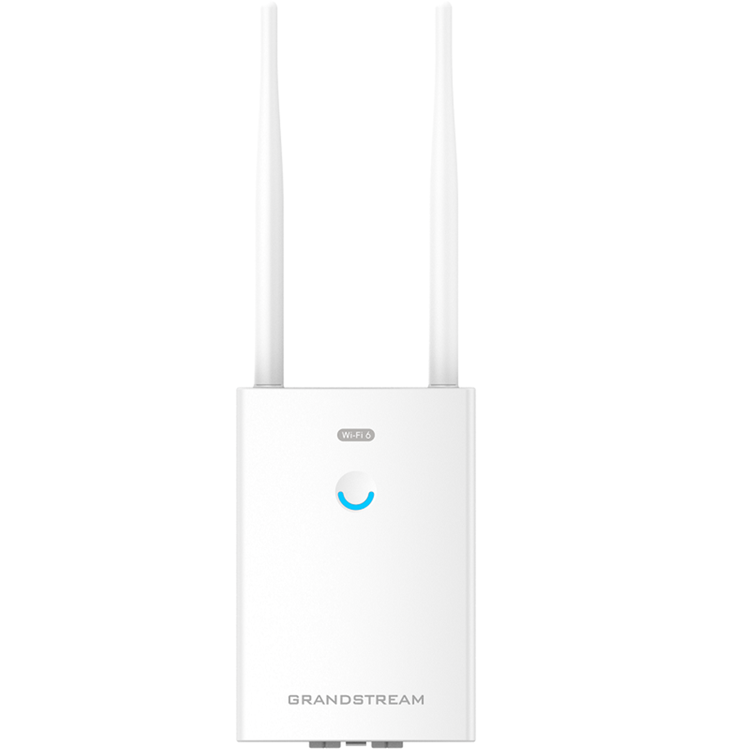

Grandstream GWN7660LR Outdoor 2x2 MU-MIMO 802.11ax WiFi 6 Long Range Wireless Access Point
GRANDSTREAM GWN7660LR OUTDOOR 2X2 802.11AX WIFI 6 LONG RANGE WIRELESS ACCESS POINT
The Grandstream GWN7660LR is a long-range Outdoor 802.11ax Wi-Fi 6 access point designed to provide next generation network coverage for indoor and outdoor environments. It offers IP66 weatherproof certified casing, dual-band 2x2:2 MU-MIMO technology and a sophisticated antenna design for extended coverage range of up to 250 meters.
The GWN7660LR is supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform that and makes managing your network or several networks across multiple locations easier than ever before. It also uses a controllerless network management architecture in which the controller is embedded within the product’s web user interface for easy administration of locally deployed Wi-Fi APs. The GWN7660LR is the ideal Wi-Fi AP for voice-over-Wi-Fi deployment and offers a seamless connection with Grandstream’s Wi-Fi capable voice and video IP phones.
With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals and dual Gigabit networks ports with PoE/PoE+; the GWN7660LR is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, parks, hospitals, schools and more.
Features
- Simplify your network management with Free Cloud management on GWN.Cloud or use built in controller
- 1.77Gbps aggregate wireless throughput and 2x Gigabit Ethernet ports
- Dual-band 2×2:2 MU- MIMO with DL/UL OFDMA WiFi6 technology
- Support 256+ concurrent Wi-Fi client devices
- Up to 250-meter coverage range
- Flexibility of 2 detachable/changeable antennas for different applications
- Ideal product for Managed service provider (MSP) solution
Wi-Fi Standards
IEEE 802.11 a/b/g/n/ac/ax
Antennas
2 dual band external antennas; 2.4GHz, gain 3.5dBi, 5 GHz, gain 3.5dBi
Frequency Bands
2.4GHz radio: 2412 - 2484 MHz, 5GHz radio: 5180 - 5825 MHz
Channel Bandwidth
2.4GHz: 20 and 40 MHz, 5GHz: 20, 40 and 80 MHz
System Security
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot andcritical data/control lockdown via digital signatures, unique security certificate and random default password per device
MU-MIMO
2×2:2 2.4GHz, 2×2:2 5GHz
Coverage Range
Up to 250 meters *Coverage range can vary based on environment
Maximum TX Power
5G: 26dBm, 2.4G: 30dBm
Max Receiver Sensitivity
-99dBm @ 2.4GHz, -95dBm @ 5GHz
SSIDs
32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Clients
256+
Network Interfaces
2× autosensing 10/100/1000 Base-T Ethernet Ports
Auxiliary Ports
1× Reset Pinhole
Mounting
Outdoor wall or pole mount, kits included
LEDs
1× tri-color LEDs for device tracking and status indication
Network Protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
802.11e/WMM, VLAN, TOS
Network Management
Embedded controller can manage up to 50 local GWN APs, GWN.Cloud offers a free cloud management platform for unlimited GWN APs, GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power
PoE 802.3af/ 802.3at
Maximum Power Consumption
12.9W
Environmental
Operation:-30°Cto 60°C, Storage: -30°C to 70°C, Humidity: 5% to 95% Non-condensing
Physical
Unit Dimension: 358.3mm(L)x115mm(W)x45.3mm(H); Unit Weight: 695g, Entire Package Dimension: 275x185.5x89mm; Entire Package Weight: 995g
Weatherproof Grade
IP66-level weatherproof capability when installed vertically
Compliance
FCC, CE, RCM, IC
