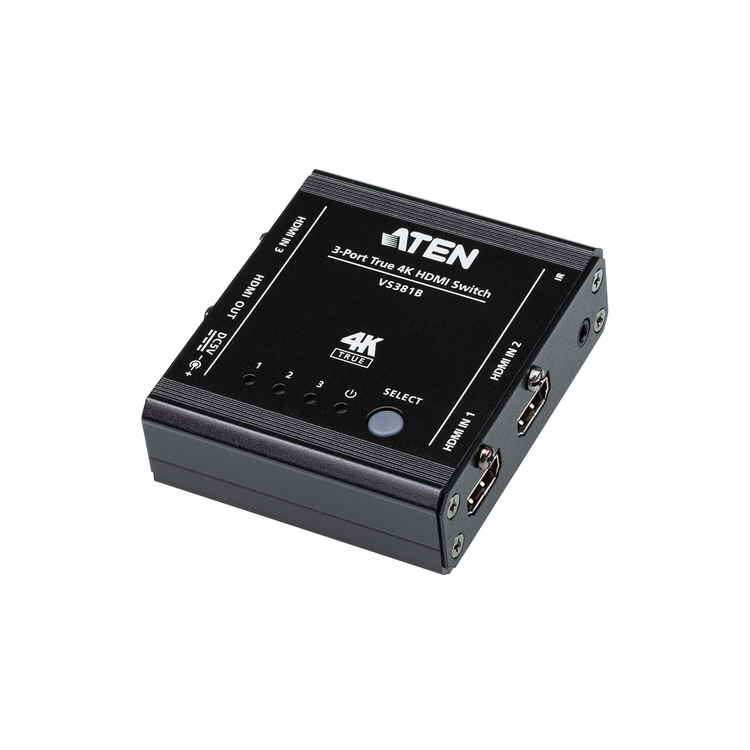

The VS381B 3-Port True 4K HDMI Switch with Auto Switching provides you to switch 3 HDMI input sources to an HDMI display. It supports video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, HDR, 3D, Deep Color, and HD lossless audio formats. Furthermore, the VS381B offers switching methods between HDMI sources by front panel pushbuttons and IR remote control, enabling users to effortlessly select desired input.
Featuring above functionalities provides you a practical solution for auditorium, home theater, meeting rooms, trade shows, shopping centers, and more.
-Allows up to 3 HDMI input sources to be transmitted to 1 HDMI output display
-Superior video quality – True 4K resolution of 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) up to 5m; HDR supported
-HDMI (3D, Deep Color, 4K, HDR10+, Dolby Vision, HLG)
-HDCP 2.2 compliant
-Auto switching mode for auto port selection
-Switching between HDMI input sources via front panel pushbuttons and IR remote control
-Supports IR extension
-Supports 7.1 channel audio output
-Clear LED indication of device status
-Plug-and-play – no software installation required
Package Contents
1x VS381B 3-Port True 4K HDMI Switch
1x USB to DC Power Cord
1x IR Remote Control
1x IR Receiver
1x User Instructions
Note
USB to DC cable as the main power source;
In some circumstances power from HDMI maybe sufficient for the device; however, the power source from USB via USB to DC cable is recommended for device operation
LEDs
Input
3 x HDMI-In (Green)
Power
1 x Power LED (Green)
Pushbuttons
Select
1 x push button (input selection)
Audio
Input
3 x HDMI Type A Female (Black)
Output
1 x HDMI Type A Female (Black)
Video Input
Interfaces
3 x HDMI Type A Female (Black)
Impedance
100 Ohms
Max. Distance
Max 5m @ Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Video Output
Interfaces
1 x HDMI Type A Female (Black)
Impedance
100 Ohms
Max. Distance
Max 5m @ Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Video
Max. Data Rate
18 Gbps (6 Gbps Per Lane)
Max. Pixel Clock
600 MHz
Compliance
HDMI 2.0 (3D, Deep Color, 4K, HDR10, Dolby Vision)
HDCP
2.2
Max. Resolution
4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Control
IR
1 x Mini Stereo Jack Female (Black) / Max distance@ 5m
Connectors
Power
1 x DC Jack
Power Consumption
DC5V:1.46W:6BTU
Environmental
Operating Temperature
0-40 °C
Storage Temperature
-20 - 60 °C
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Metal
Weight
0.15 kg ( 0.33 lb )
Dimensions (L x W x H)
7.16 x 7.90 x 2.55 cm
(2.82 x 3.11 x 1 in.)
