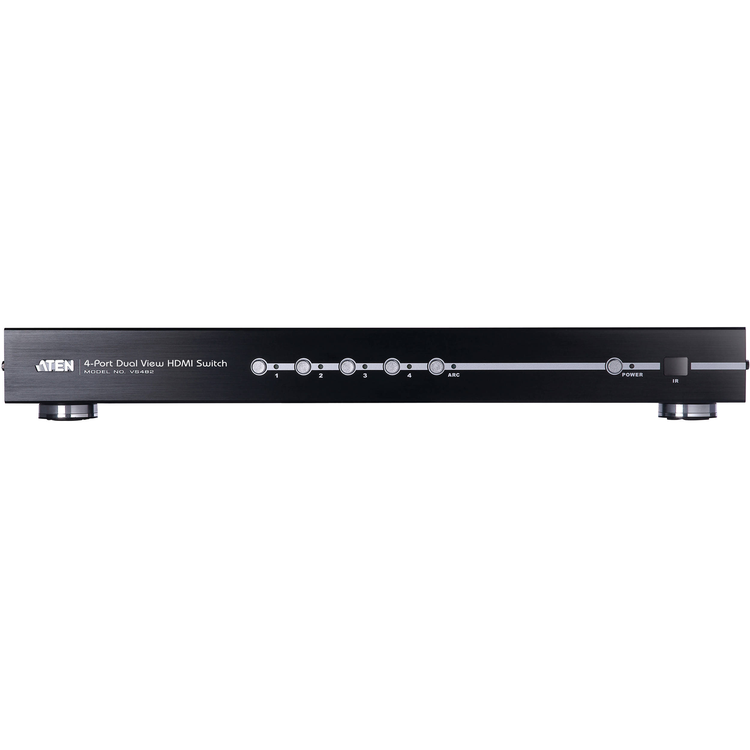

The ATEN VS482B Switch is an ideal solution for application requiring superior video resolution of True 4K when connecting 4 HDMI A/V sources to 2 HDMI displays. Complying with HDMI 2.0 standards, the switch’s Audio Return Channel (ARC) function allows users to send audio without having to attach a separate audio cable.
Furthermore, the VS482B offers switching methods between HDMI sources by front panel pushbuttons, IR remote control and RS-232 commands, enabling users to effortlessly select desired input. Equipped with EDID Expert™, the VS482B benefits users with optimum EDID settings for smooth power-up and highest-quality display across different screens. Featuring above functionalities provides you a practical solution for auditorium, home theater, meeting rooms, trade shows, shopping centers, and more.
- Allows up to 4 HDMI A/V sources to be connected to 2 HDMI displays
- Superior video quality – up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4); HDR supported
- HDMI 2.0 (3D, Audio Return Channel, Deep Color); HDCP 2.2 compliant
- Supports Auto Switch – the VS482B automatically switches to a newly plugged-in source
- Audio Return Channel (ARC) function – connects an HDMI cable to the ARC port to send audio from your source device to your audio/video receiver
- OSD for system configuration settings and information display
- Switching between HDMI input sources via front panel pushbuttons, IR remote control and RS-232 commands
- EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
- Built-in bi-directional RS-232 serial control port for high-end system control
- HDMI audio can be extracted to stereo audio and digital audio (optical/coaxial) outputs
- Supports 5.1 channel audio output
- Supports Consumer Electronic Control (CEC)
- Rack mountable
LEDs
Input
LED (Green) x 4 (HDMI-In)
Audio
LED (Green) x 1 (ARC ON/OFF)
Power
LED (Green/Orange) x 1 (Power ON/OFF)
Switches
Video Input Port Selection
Push button x 4 (HDMI-In)
Mode Selection
Push button x 1 (ARC ON/OFF)
Power
Push button x 1 (Power ON/OFF)
Video Input
Interfaces
4 x HDMI Type A Female (Black)
Impedance
100 ?
Max. Distance
3m (4096x2160 @ 60Hz, 4:4:4)
Video Output
Interfaces
2 x HDMI Type A Female (Black)
Impedance
100 ?
Max. Distance
3m (4096x2160 @ 60Hz, 4:4:4)
Video
Max. Data Rate
18 Gbps (6 Gbps Per Lane)
Max. Pixel Clock
600 MHz
Compliance
HDMI 2.0 (3D, Audio Return Channel, Deep Color)
HDCP 2.2
Consumer Electronics Control (CEC)
Max. Resolution
4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Max. Distance
Up to 3m (input / output)
Audio
Input
4 x HDMI Type A Female (Black)
Output
Analog: 2 x RCA (Red / White)
Digital:
2 x HDMI Type A Female (Black);
1 x Toslink (Black);
1 x RCA (Orange)
Control
RS-232
Function: Port switching & FW upgrade
Connector: 1 x DB-9 Female (Black)
Baud Rate: 19200, Data Bits: 8,
Stop Bits:1, Parity: No, Flow Control: No
IR
1 x Mini Stereo Jack Female (Black)
1 x IR Receiver
EDID Settings
EDID Mode: Default (4K @ 60Hz) / Port-1 / Remix
Connectors
Power
1 x DC Jack
Power Consumption
DC5V:3.29W:15BTU
Environmental
Operating Temperature
0 - 40°C
Storage Temperature
-20 - 60°C
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Metal
Weight
2.16 kg ( 4.76 lb )
Dimensions (L x W x H)
43.72 x 15.88 x 4.40 cm
(17.21 x 6.25 x 1.73 in.)
Carton Lot
3 pcs
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Package Contents
1x VS482B 4-Port True 4K HDMI Switch with Dual Output
1x Power Adapter
1x IR Remote Control Unit
1x Mounting Kit
1x User Instructions
