Auckland Airport’s online shopping experience
ATEN

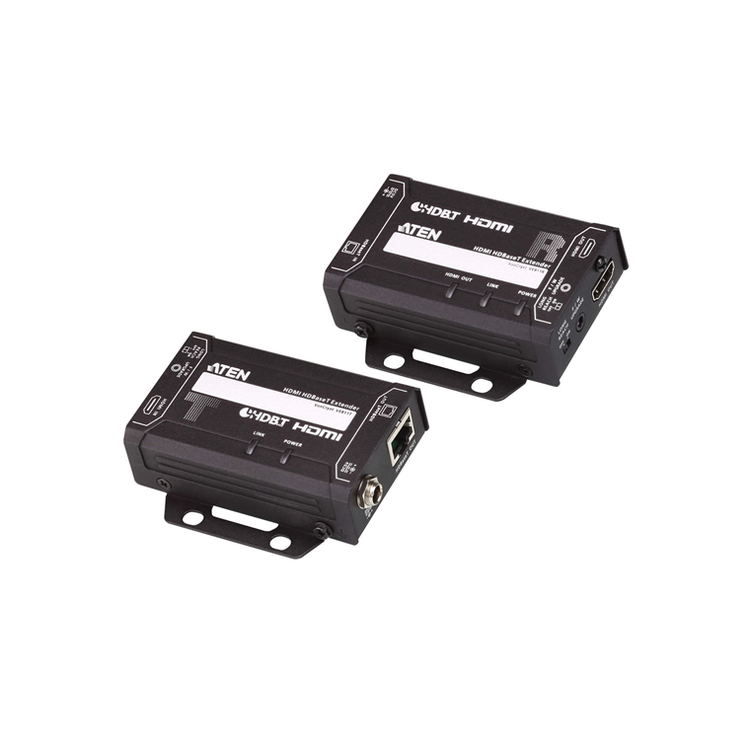

Aten VE811 HDBaseT Class A HDMI Extender, HDCP

Product Id KVMATN0813
Traveller Price
Price: $537.96 NZD
Tax free price for international travellers
Product Id KVMATN0813
View all ATENSold by PB Tech
Description
Aten VE811 HDBaseT Class A HDMI Extender , HDCP 2.2 ( 4K/100m , 1080p/150m Long Reach Mode ) ,

The VanCryst Media Matrix Solution is a combination of the VM0808T 8 x 8 Cat 5 A/V Matrix Switch and the VE500 / VE300 A/V Over Cat 5 Extender. The VM0808T is a Matrix Switch that uses VE500/VE300 extenders to route and distribute audio, video, and RS-232 signals over distances of up to 300 meters with 1280x1024 video resolutions
The VM0808T can receive data from up to 8+1 audio/video sources and transmit data to up to 8+1 audio/video displays. The VM0808T offers several convenient ways to access and control the source devices: locally, with front panel pushbuttons and an RS-232/ RS-485/RS-422 serial port; and remotely, over the Internet with a browser-based web page interface.
The Media Matrix Solution is an ideal solution when long runs to the A/V output locations are required, and where versatility and security are essential. The VM0808T is designed for deployment in environments that involve routing video signals such as those found in casinos, transportation and logistics centers, traffic control centers, port security facilities, industrial supervision settings, etc.
Features
- Connects any of 8 Cat 5 A/V inputs to any of 8 Cat 5 A/V outputs in combination with ATEN VE500/VE300 A/V Over Cat 5 Extender system
- Long signal range – supports up to 300 meters between VE500T/VE300T transmitters and VE500R/VE500RQ/ VE300R/VE300RQ receivers
- Easily switch between multiple sources and multiple displays
- Local Operation:
• Front panel LCD display and pushbuttons
• Serial controller
- Remote Operation:
• Browser Graphical User Interface (GUI)
• Telnet
- Supports additional local input and local display – provides an extra input / output source
- Built-in bi-directional RS-232 serial port for high-end system control
- Supports Video Quality – up to 1920 x 1200@60Hz; DDC2B
- Supports stereo and balanced audio
- Automatic and adjustable video and audio quality
- Independent switching of audio and video sources – any audio source can be connected to any video source for output flexibility
- Firmware upgradeable
- Rack Mountable

Video Input
Interface
8 x RJ-45 Female
Impedance
100Ohms

Video Output
Interface
8 x RJ-45 Female
Impedance
100Ohms

Video
Max. Bandwidth
500 MHz
Max Resolutions
Up to 1920 x 1200 (Depends on connected receiver)
Max Distance
Up to 300 m (Depends on connected receiver)
*The maximum transmission distance between the transmitter and the receiver is 300 m.
Audio
Input
Balanced: 1 x Captive Screw Connector, 5 Pole
Stereo: 1 x Mini Stereo Jack Female (Green)
Output
Balanced: 1 x Captive Screw Connector, 5 Pole
Stereo: 1 x Mini Stereo Jack Female (Green)
Control
RS-232
Connector: 1 x DB-9 Female (Black); 1 x DB-9 Male (Black)
Serial Control Pin Configurations: Male: Pin2 = Rx, Pin 3 = Tx, Pin 5 = Gnd Female: Pin2 = Tx, Pin 3 = Rx, Pin 5 = Gnd
Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits: 1, Parity: No, Flow Control: No
RS-485/RS-422
Connector: 1 x Captive Screw Connector, 5 Pole
Ethernet
1 x RJ-45 Female

Power
Connector
1 x 3-prong AC socket
I/P Rating
100-240 VAC~:50-60 Hz; 1.0A
Consumption
110 VAC, 16W; 220 VAC, 17W
Environment
Operating Temp.
0-50°C
Storage Temp.
-20 - 60°C
Humidity
0-80% RH, Non-Condensing

Physical Properties
Housing
Metal
Weight
3.50 kg
Dimensions (L x W x H)
43.20 x 25.30 x 4.40 cm
