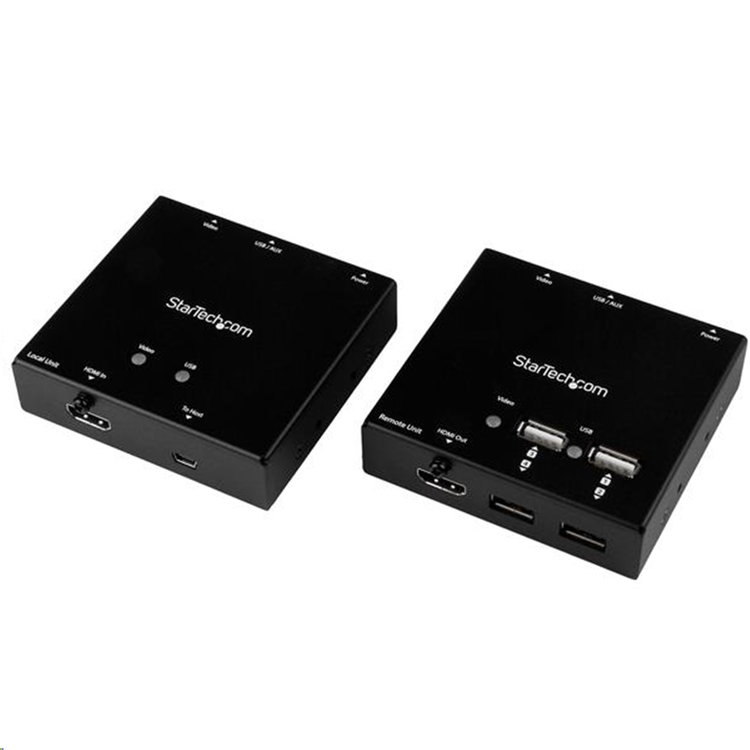

StarTech.com ST121USBHD HDMI over CAT6 Extender with 4-port USB
This HDMI® extender kit lets you transmit your 1080p HD video source to your remote HDMI display at distance of up to 165 ft. away (50 m) using shielded CAT6 cabling. The extender features a built-in 4-port USB 2.0 hub that also lets you connect four remote USB peripheral devices at your display location.
Crystal-clear picture quality
Using this HDMI extender, you can maintain the quality of your high-definition video signal along with the accompanying 7.1 digital audio, even at 165 feet away from your source device. The extender supports resolutions up to 1920x1200 or 1080p - perfect for dazzling your audience in remote digital-signage applications in hospitals or at shopping centers.
Hassle-free remote USB integration
The built-in 4-port USB 2.0 hub lets you remotely connect, access or control up to four USB devices located at your remote display - great for flash drives, printers, scanners, external hard drives and I/O devices. Remote USB extension also enables you to remotely control your source device, which is ideal for adding touchscreen interfaces at your display in market or POS kiosks.
Easy installation and setup
For hassle-free setup the HDMI extender offers easy plug-and-play installation with no additional software or drivers required. Plus, the extender passes the EDID information included in your HDMI signal, and automatically adjusts video equalization ensuring you won't have to configure it manually. Mounting hardware is also included, for a tidy and professional installation.
Note: To maximize performance this extender requires shielded CAT6 cable. When using unshielded CAT6 cable the maximum distance is reduced to 30m. When using CAT5 cable the maximum distance is reduced to 15m.
The ST121USBHD is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Hardware
Audio
Yes
Cabling
Cat 5 UTP or better
Daisy-Chain
No
Ports
1
Performance
Audio Specifications
Supports Dolby TrueHD, DTS-HD MA
IR Interface
Bi-directional
38Khz / ±10° / 5M
Max Distance
50 m / 165 ft
Maximum Data Transfer Rate
HDMI - 3.4Gbps
RS232 - 115200bps baud
Maximum Digital Resolutions
1080p @ 60Hz, 48-bit
Wide Screen Supported
Yes
Connector(s)
Connector A
1 - HDMI (19 pin) Female Input
2 - USB Mini-B (5 pin) Female
Connector B
1 - HDMI (19 pin) Female Output
4 - USB Type-A (4 pin) USB 2.0 Female
1 - USB Mini-B (5 pin) Female
Power
Output Current
1 A
Output Voltage
5 DC
Plug Type
N
Power Consumption (In Watts)
5
Power Source
AC Adapter Included
Environmental
Humidity
0% - 80 % RH (non-condensing)
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-10°C to 60°C (14°F to 140°F)
Physical Characteristics
Product Height
0.8 in [21 mm]
Product Length
3.2 in [82 mm]
Product Weight
8.1 oz [230 g]
Product Width
3.2 in [82 mm]
Included in Package
1 - HDMI over CAT6 transmitter
1 - HDMI over CAT6 receiver
2 - Ethernet cables
2 - USB to Mini-USB cables
1 - universal power adapter (NA/EU/UK/AU)
1 - mounting kit
1 - quick install guide
