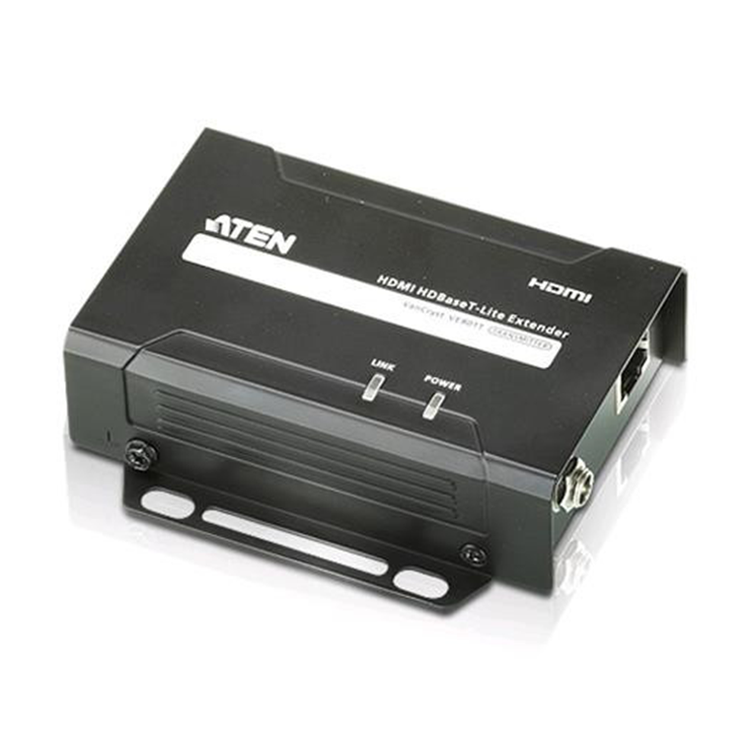

HDMI HDBaseT-Lite Transmitter
The VE801T HDMI HDBaseT-Lite Transmitter connects with HDBaseT receivers* to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801T all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801T is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended at great distances.
* Compatible HDBaseT Receiver Units: VE801R
Video Input
Interfaces
1 x HDMI Type A Female (Black)
Impedance
100 Omega
Max. Distance
1.8 m
Video
Max. Data Rate
10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock
340 MHz
Compliance
HDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / Distance
Up to 4K @ 35m (Cat 5e/6) / 40m (Cat 6a);
1080p @ 60m (Cat 5e/6) / 70m (Cat 6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Input
1 x HDMI Type A Female (Black)
Power
Connectors
1 x DC Jack (Black) with locking
Consumption
DC5V, 1.85W
Environmental
Operating Temperature
0 - 50°C
Storage Temperature
-20 - 60°C
Humidity
40 - 85% RH, Non-Condensing
Physical Properties
Housing
Metal
Weight
0.24 kg ( 0.53 lb )
Dimensions (L x W x H)
12.47 x 8.70 x 3.00 cm
(4.91 x 3.43 x 1.18 in.)
