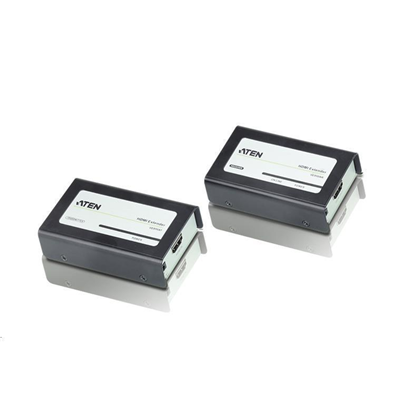

The VE800A HDMI Extender extends your HDMI display up to 60 m away from your HDMI source using one Cat 5e cable. ATEN’s VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the display’s EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.
Features
- Extends the distance between HDMI source and HDMI display
- Uses Cat 5e cable to connect the local and remote units
- Features ATEN EDID technology that allows transmission over one Cat 5e cable
- Extend 1080p by 40 m; extend 1080i (HDTV) by 60 m
- Superior video quality – 1920 x 1200, up to 1080p
- HDMI (3D, Deep Color); HDCP Compatible
- Supports Dolby True HD and DTS HD Master Audio
- 8 segment equalization adjustment switch optimizes display quality
- DDC compatible
Video Input
Interface
1 x HDMI Type A Female (Black)
Impedance
100 Ohms
Video Output
Interface
1 x HDMI Type A Female (Black)
Impedance
100 Ohms
Video
Max. Data Rate
6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock
225 MHz
Compliance
HDMI (3D, Deep Color)
HDCP Compatible
Max resolutions / Distance
Up to 1080p@40m; 1080i@60m
Audio
Input
1 x HDMI Type A Female (Black)
Output
1 x HDMI Type A Female (Black)
Power
Connector
1 x DC Jack
Consumption
VE800AT: 5 VDC, 1W
VE800AR: 5 VDC, 0.75W
Environment
Operating Temp.
0-50°C
Storage Temp.
-20 - 60°C
Humidity
0-80% RH, Non-Condensing
Physical Properties
Housing
Metal
Weight
0.16kg
Dimensions (L x W x H)
9.00 x 5.50 x 2.40 cm
