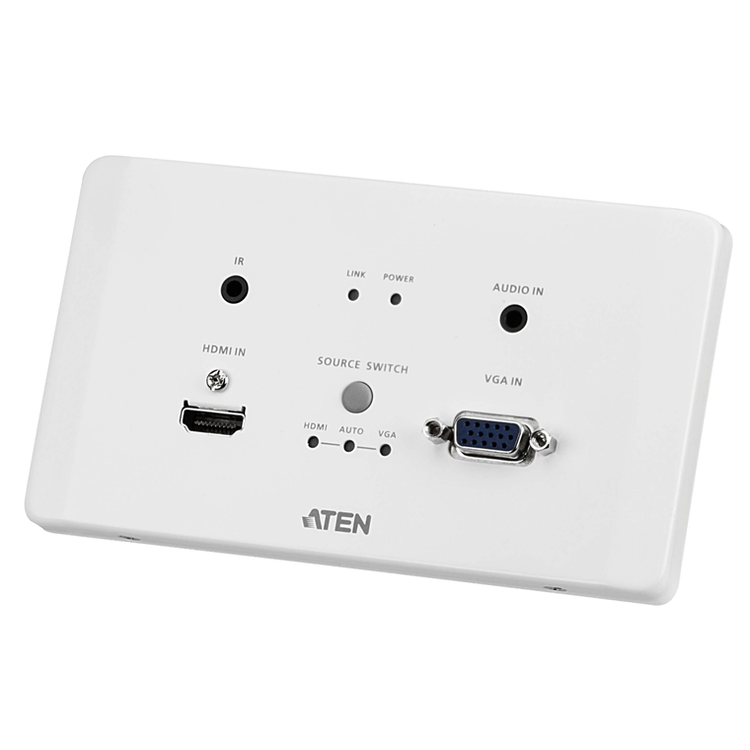

Aten VE2812AEUT HDMI & VGA HDBaseT Transmitter with EU
ATEN VE2812AEUT is a transmitter for sending VGA (with audio) and HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring built-in PoH (Power over HDBaseT) function, the VE2812AEUT receives power supply from the HDBaseT output port on the connected device. This eliminates the need for a power adapter and reduces the hassle of power line deployment behind the wall. With EU Wall Plate design, the VE2812AEUT can be conveniently mounted in a two – gang junction box. The VE2812AEUT guarantees reliable transmission of HDMI / VGA signals. For HDMI signal transmission, it supports 3D, Deep Colour, and embedded HD lossless audio formats. To pursue longer distance transmission, it supports Long Reach Mode up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p.
For utility flexibility, the VE2812AEUT can serve as a video switch by connecting two sources and distribute them to an identical output. The compact wall plate design does away with bulky cables, allowing a neat and convenient installation in the wall or the table. Therefore, the VE2812AEUT is specifically designed for use in meeting rooms, digital educational environment or wherever needed to meet application requirements.
Superior video quality:
HDMI: 4K at distance up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable
VGA: 1600 x 1200 and 1920 x 1200 up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable
Functions as a switch or a converter:
A Switch: Connects two sources (HDMI or VGA)
A Converter: Applies receivers with different interface (DVI, DisplayPort, or HDMI)
-Extends HDMI or VGA signals over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
-HDMI 1.4 (3D, Deep colour, 4K); HDCP 2.2 compliant
-Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
-Designed to mount in a two-gang junction box, compatible with EU & MK type
-Built-in PoH (Power over HDBaseT) function – the VE2812AEUT receives power supply from the HDBaseT output port on the connected device
-Supports Auto Switch – allows the VE2812AEUT to automatically switch to a newly plugged-in source
-Supports RS-232 channel transmission or command mode for source switch control
-Compatible Receivers – VE2812R, VE1812R, VE812R, VE814AR, VE811R, VE801R, VE802R, VE601R, VE901R or future ATEN HDBaseT Receivers
-LED indication of sources and device status
Ready for Plug-and-Play
Available with both MK and EU mounting brackets for more convenient installation, the VE2812AEUT supports legacy and popular AV interfaces like VGA, HDMI, and stereo audio so that you’re ready to connect any device that is brought into the room.
4K @100m Extended Transmission
Delivers superior video quality up to 4K @100m and 1080p @150m via a single Cat 6a / ATEN 2L-2910 Cat 6 cable, extending connections to where ever your output devices are located. Easily pair from our range of HDBaseT Receivers to support diverse display interfaces such as DisplayPort, HDMI, and DVI.
Multiple, Efficient Switching Options
The Source Switch button enables instant switching when required, while Auto Switch Mode supports automatic switching to a newly plugged-in source and instant switching back to the previous source on disconnection. Also supports RS-232 for switching via alternate control interfaces.
Convenient Power Access
Supports Power over HDBaseT (PoH) and allows powering from another Power Source Equipment (PSE) device. No more worries about extending or installing power outlets.
AV Extension and More
In addition to transmitting video and audio, the VE2812AEUT maximizes HDBaseT™ technology capabilities and offers IR and RS-232 Channels to control devices located in hard-to-reach areas as well as streamline the user operation experience.
Perfectly Blends with the Environment
Comes with a stylish and sleek design for you to elegantly immerse extensions into the décor of any room.
All pictures shown are for illustration purpose only. Actual colour of the product is based on the product you receive.
Optional accessory (2X-050G) is available with a separate purchase if you wish to mount the VE2812AEUT into the cable cubby.
1 x HDMI Type A Female (Black)
1 x HDB-15 (VGA) Female (Blue)
HDMI: 100 Ohms
HDB-15 (VGA): 75 Ohms
HDMI: 3 m
Max. Data Rate
10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock
HDMI (3D, Deep Color, 4K)
Consumer Electronics Control (CEC)
Max. Resolutions / Distance
HDMI: Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
VGA: Up to 1920x1200 & 1600x1200@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1920x1080@100m (Cat 5e/6/6a)
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
1 x HDMI Type A Female (Black)
1 x Mini Stereo Jack Female (Green)
Connector: 1 x Terminal Block, 3 pole (Green)
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
1 x Mini Stereo Jack Female (Black)
Video Input Port Selection
1 x Push Button - HDMI, VGA and AUTO
Long Reach Mode Switch
1 x Slide Switch - ON/OFF
1 x Slide Switch - ON/OFF
Unit To Unit
1 x RJ-45 Female
1 x Terminal Block, 2 pole (Green) or
1 x RJ-45 Female (POH)
0 - 40°C
-20 - 60°C
0 - 80% RH, Non-Condensing
0.30 kg ( 0.66 lb )
Dimensions (L x W x H)
5.00 x 10.80 x 5.17 cm
(1.97 x 4.25 x 2.04 in.)
Faceplate Dimensions (L x W x H)
8.60 x 15.10 x 1.35 cm
(3.39 x 5.94 x 0.53 in.)
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
