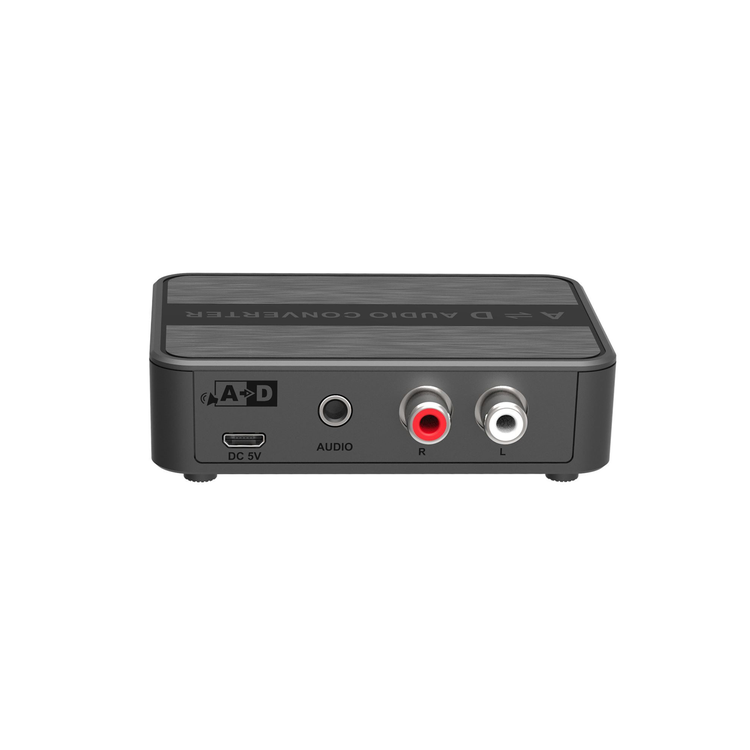

This Digital to Analog/Analog to Digital combo audio converter is designed for either home or professional audio switching. It converts coaxial or optical digital audio input to analog stereo output over RCA or 3.5mm mini-jack, and also can convert analog audio signals to digital audio signals, it can convert in either direction.
Easy to switch between digital to analog and analog to digital with the dial switch.
Features
- Supports coaxial or optical digital audio to analog stereo audio
- Supports analogue stereo audio to coaxial or optical digital audio
- Supports 2 channels LPCM digital audio signal output
- Supports 32, 44.1, 48, 96, 128 and 192kHz sampling rate when digital to analog, 48kHz sampling rate when analog to digital
- Plug and play
- 24bit
- Includes MICROUSB to USB cable
**Does NOT include 5V1.5A wall power adapter**
Power Supply
Voltage/Current
DC 5V/0.5A
Power consumption
<1W
Power port
Micro USB
Technical parameters
Input digital sampling rate
32kHz, 44.1 kHz, 48kHz, 96kHz, 128kHz, 192kHz
Output digital sampling rate
48kHz
Analog audio format
Stereo
I/O interfaces
3.5mm*1, R/L *1, coaxial*1
Input interfaces
S/PDIF*1
Output interfaces
S/PDIF*1
Protection Level
Electrostatic protection of the whole machine
1 a Contact discharge level 3
1 b Air discharge level 3
Standard: IEC61000-4-2
Operating environment
Working temperature
0°C ~60°C (32°F~140°F)
Storage temperature
-10°C~70°C (-4°F ~158°F)
Humidity (non-condensing)
0%~90% relative humidity
Body properties
Dimensions (WxDxH)
61.50 x 55 x 20mm
Housing
ABS
Colour
Black
Weight
50g
