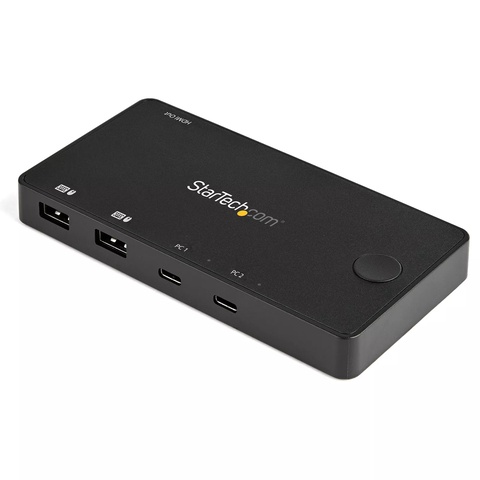

This 2-port USB-C KVM enables you to easily switch between two USB Type-C or Thunderbolt 3 desktop or laptop computers, using a single keyboard, HDMI monitor and mouse.
Easy to Setup and Use
Utilizing USB-C with DP alt-mode, this compact KVM switch only requires a single cable be connected to each of your computers, ensuring a small footprint with limited cabling requirements. All required cables for connecting your computers are included, to ensure a hassle-free setup right out of the box.
For easy operation, the KVM features a single button that toggles between connected computers.
Supports 4K 60Hz Resolutions
The USB-C KVM switch supports UHD resolutions up to 4K (3840x2160) at 60Hz and can drive one large HDMI 2.0 display with ease, maximizing viewing space.
Compact and Portable
Along with the USB-C design that ensures cabling requires are minimum the KVM is bus powered further reducing clutter by avoiding the need for a bulky power adapter. The lightweight small form factor makes this mini KVM switch easy to deploy and is ideal for mobile/hot desk workforces.
Guaranteed Compatibility
The KVM is OS independent supporting all operating systems including Windows, Linux, macOS, iPadOS (Apple iPad Pro) and Android. StarTech.com has rigorously tested this product to ensure compatibility with all popular device brands including: Dell, HP, Apple and Lenovo.
Applications
-High resolution medical imaging
-Digital signage server control
-Mobile and hot-desk work forces
Connector(s)
Console Interface(s)
2 x USB Type-A (4 pin) USB 2.0
Console Interface(s)
1 x HDMI (19 pin)
Host Connectors
2 x USB Type-C (24-pin) USB 2.0 (480Mbps)
Environmental
Operating Temperature
5°C ~ 35°C
Storage Temperature
-20°C ~ 50°C
Humidity
20%RH ~ 80%RH
Hardware
Audio
Yes
KVM Ports
2
PC Interface
USB-C
PC Video Type
USB-C (DP Alt-Mode)
Number of Monitors Supported
1
Rack-Mountable
No
Cables Included
Yes
Chipset ID
Parade - PS176
VLI - VL170
Terminus - FE1.1S
Daisy-Chain
No
Performance
Video Revision
DisplayPort 1.2
On-Screen Display
No
Video Revision
HDMI 2.0
IP Control
No
Hot-Key Selection
No
Maximum Data Transfer Rate
480Mbps
Wide Screen Supported
Yes
Audio Specifications
HDMI - 7.1 Channel Audio
Port Selection Support
Push Button
MTBF
50,000 hours
Physical Characteristics
Colour
Black
Product Length
72.0 mm [2.8 in]
Product Width
14.0 cm [5.5 in]
Weight of Product
265.0 g [9.4 oz]
Product Height
15.7 mm [0.6 in]
Material
Plastic
Power
Power Source
Bus Powered
Special Notes / Requirements
System and Cable Requirements
Your USB-C ports must support DisplayPort over USB-C (DP Alt mode) in order to work with this KVM switch
