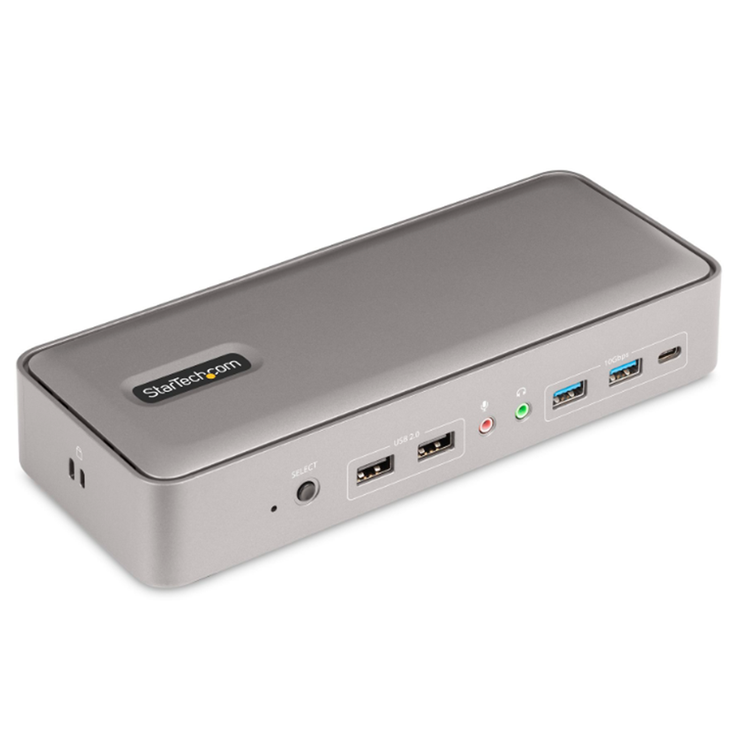

StarTech.com 129N-USBC-KVM-DOCK USB-C KVM Docking Station Dual 4K 60Hz
Dual-Laptop USB-C KVM Docking Station, Dual Monitor 4K 60Hz DisplayPort Dock, 5-Port USB Hub, GbE, 90W/45W Power Delivery to Two Laptops, Windows/Mac, 2-Host KVM Dock - TAA
- DUAL-LAPTOP KVM DOCK: Dock and Switch between two laptops at your desk / workstation and share dual 4K 60Hz monitors, keyboard, mouse and other USB peripherals; Switch between two laptops using a toggle button located on the front of the docking station
- SIMULTANEOUSLY CHARGE TWO LAPTOPS: USB-C KVM docking station charges both connected laptops over USB-C (PD 3.0); The included 180W power adapter automatically provides 90W of power to the active host and 45W of power to the host on standby
- GUARANTEED COMPATIBILITY: DisplayLink Certified Dual-Host KVM Dock supports dual displays on M1/M2/M3 Pro/Max MacBooks; Works w/mixed OS (combine Windows, MacOS or Chrome OS); Works w/USB-C, Thunderbolt 4/3 & USB-A laptops (USB-C to A cable not incl)
- CONNECTIVITY: The dock features a variety of ports for device connectivity; 2x USB 2.0 Type-A HID, 2x USB-A (10Gbps), USB-C (10Gbps), 2x DisplayPort, 2x USB-C host ports, Gigabit Ethernet, 3.5mm stereo audio, 3.5mm mic, 2x K-Slots (Standard/Nano)
- OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout
Dock and Switch between two laptops to access your workstation peripherals including dual monitors, seamlessly switching between laptop computers with the push of a button. The downloadable Hot-Key software (available for Windows and macOS), enables users to switch between computers using key combinations from a keyboard.
DisplayLink Certified
The Dock is DisplayLink Certified, for Plug and Display compatibility with Windows, ChromeOS, and macOS, enabling operation and switching between multiple computers with different operating systems. DisplayLink technology also supports extended dual displays on Apple M1/M2/M3 MacBook which are not natively capable of driving more than one external display. The DisplayLink Certification ensures support for resolutions up to 4K 60Hz on both external displays.
Simultaneously Charge Two Laptops
The KVM Dock supports Power Delivery (PD) 3.0 and charges both connected computers over USB-C. The Dock supplies 90W of power to the active host computer and 45W of power to the second PC, ensuring both laptops can charge simultaneously.
Full-Featured Docking Station
Connect two USB-C computers to this Dock to access a wide range of port connectivity, options and features. The Dock features:
- 2x DisplayPort ports for dual display output with support for resolutions up to dual 4K 60Hz.
- 2x USB-A (USB 2.0 480Mbps) HID ports for USB devices, such as a keyboard and mouse.
- 2x USB-A and 1x USB-C (USB 3.2 Gen 2 10Gbps) ports for connecting high speed USB peripherals, such as SSD storage.
- 1x Gigabit Ethernet port with WoL (Wake-on-LAN) for a wired Local Area Network (LAN) connection.
- 1x 3.5mm 3-position TRRS jack for stereo audio output.
- 1x 3.5mm 2-position microphone jack for mono audio input.
- 2x K-Slots (regular/nano) to tether the Dock with a cable lock (sold separately) for security.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
- Advanced Windows Layout Utility: Setup and save custom windows layouts.
- Mac Address Pass-Through Utility: Improve network security.
- USB Event Monitoring Utility: Track and log connected USB devices.
- Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.
Connector(s)
External Ports
2 - USB 2.0 Type-A (4 pin, 480Mbps)
2 - USB 3.2 Type-A (9 pin, Gen 2, 10Gbps)
1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
1 - 3.5 mm Mini-Jack (3 Position)
1 - 3.5 mm Mini-Jack (2 Position)
2 - DisplayPort (20 pin)
1 - RJ-45
Host Connectors
2 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
Environmental
Operating Temperature
-10°C to 45°C (14°F to 113°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Humidity
0~90% RH (Non-condensing)
Hardware
4K Support
Yes
Fast-Charge Port(s)
No
Displays Supported
2
Interface
USB 3.2 Gen 2 (10 Gbps)
Bus Type
USB-C
Compatible Lock Slot
Kensington Standard Slot (K-Slot),Kensington Nano Slot
Industry Standards
DisplayPort 1.4
USB 3.2 Gen 2 (10 Gbps)
USB 2.0 (480Mbps)
USB Power Delivery Specification Rev. 3.0
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Chipset ID
DisplayLink - DL6950
Genesys Logic - GL3590
Genesys Logic - GL9510
Parade - PS186
Realtek - RTL8211F
Indicators
LED Indicators
1 - Power LED (White): Illuminates When the Dock is Connected to a Power Source and Powered On
1 - LAN Port - Network Status LED (Green): Illuminates to Indicate an Ethernet Link is Active
1 - LAN Port - Network Activity LED (Amber): Blinks to Indicate Network Traffic
Packaging Information
Package Length
6.4 in [16.2 cm]
Package Width
11.1 in [28.3 cm]
Package Height
3.9 in [10.0 cm]
Shipping (Package) Weight
3.3 lb [1.5 kg]
Performance
Wake On Lan
Yes
Maximum Data Transfer Rate
USB 3.2 Gen 2 (10 Gbps)
Maximum Digital Resolutions
2x DisplayPort - 4096 x 2160p (4K) 60Hz
Type and Rate
USB 3.2 Gen 2 - 10 Gbit/s
UASP Support
Yes
Compatible Networks
10/100/1000 Mbps
PXE
No
Full Duplex Support
Yes
General Specifications
KVM Ports: 2
Rack-Mountable: No
On-Screen Display: No
IP Control: No
Port Selection Support: Push Button and Hot-Keys
MTBF
42,209 Hours
Physical Characteristics
Color
Space Gray
Product Length
8.8 in [22.4 cm]
Product Width
3.5 in [9.0 cm]
Product Height
1.6 in [4.0 cm]
Weight of Product
14.2 oz [402.0 g]
Material
Plastic
Power
Power Source
AC Adapter Included
Power Delivery
90W (to the active host computer ) / 45W (to the second computer)
Input Voltage
100 - 240 AC
Input Current
2.4 A
Output Voltage
20V DC
Output Current
9 A
Center Tip Polarity
Positive
Plug Type
CP (OD:7.4/ID:5.1/CPD:0.6)
Power Consumption (In Watts)
180
Software
OS Compatibility
Windows® 10, 10 ARM, 11, 11 ARM
macOS 10.15, 11.0, 12.0, 13.0, 14.0, 15.0
Ubuntu 18.04, 20.04, 22.04, 24.04
ChromeOS™
