Asus

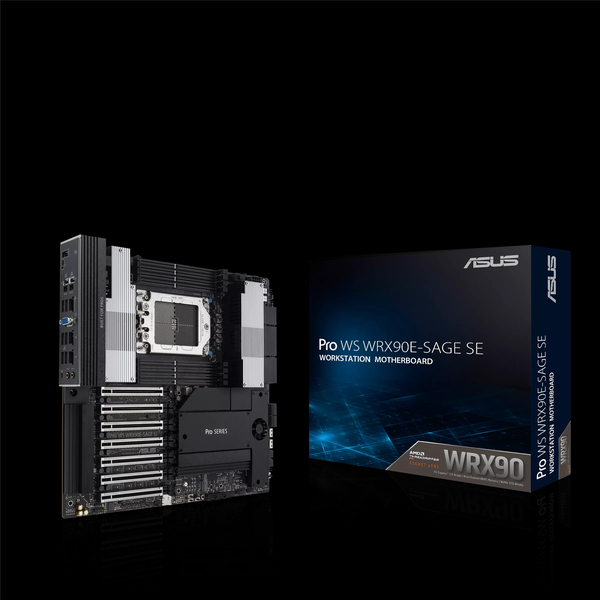

ASUS Pro WS WRX90E-SAGE SE For AMD Ryzen Threadripper Pro 9000/7000 WX Series EEB Form Factor
View all AsusSold by PB Tech
Description
ASUS Pro WS WRX90E-SAGE SE For AMD Ryzen Threadripper Pro 9000/7000 WX Series EEB Form Factor 7 PCIe 5.0 x16 slots, multi-GPU support, robust 32+3+3+3 power-stage design, CPU and memory overclocking ready, 4 PCIe 5.0 M.2 slots, dual 10 Gb LAN
Pro WS WRX90E-SAGE SE AMD sTR5 EEB workstation motherboard, 7 PCIe 5.0 x16 slots, multi-GPU support, robust 32+3+3+3 power-stage design, CPU and memory overclocking ready, 4 PCIe 5.0 M.2 slots, dual 10 Gb LAN, PCIe Q-Release Slim - AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors.- Ultrafast connectivity: Seven PCIe® 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4® 40Gbps Type-C® and SlimSAS NVMe support.- CPU and memory overclocking: Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).- Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.- PCIe Q-release Slim: Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.- Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.- Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.
A WORKSTATION WONDERLAND The Pro WS WRX90E-SAGE SE motherboard offers elite speed, compatibility and stability tailored to content creation, software development, machine learning and more. Thirty-two power stages fuel AMD Ryzen™ Threadripper™ PRO 7000 WX-series processors with up to 96 cores, while supporting up to 2 TB of R-DIMM DDR5 modules, delivering the performance potential that professionals need for cutting-edge applications. With onboard PCIe® power connectors offering additional support for multiple graphics cards, active cooling on the VRM heatsinks, USB 40Gbps ports, SlimSAS and onboard BMC, the Pro WS WRX90E-SAGE SE comes prepared for a wide array of scenarios and industries.
ULTRAFAST CONNECTIVITY - Multi-GPU Support The Pro WS WRX90E-SAGE SE motherboard features seven PCIe 5.0 x16 slots that provide flexible system configurability and expandability. With high-powered graphics cards, it can bring enhanced performance in modelling, simulation and rendering applications.
ULTRAFAST CONNECTIVITY - Ultrafast Networking Intel® X710-AT2 dual 10 Gb EthernetFeaturing dual onboard 10G LAN ports powered by the cutting-edge Intel® X710-AT2 Ethernet controller, the Pro WS WRX90E-SAGE SE makes short work of multi-terabyte transfers and provides server-grade connectivity with low-latency.
1 Gb Ethernet Dedicated to BMCThe Pro WS WRX90E-SAGE SE features an Ethernet port to provide fast data transfers simultaneously for 1 Gbps internet streaming to the onboard baseboard management controller.
Plenty of High Speed USB Ports USB 20Gbps with USB Type-C®The front panel connectors offer a transfer rate of up to 20 Gbps.
Ultrafast Networking Embrace Next-Generation USB4®The USB Type-C port in the rear offers a DisplayPort™ alt mode with support for up to 8K resolution at 60 Hz, providing great compatibility for Type-C monitors and portable displays which are getting popular among creators.* The MiniDP In port at the back panel needs to be connected to a discrete graphics card via the bundled MiniDP to DP cable.
High Capacity Storage M.2 PCIe 5.0 slotsThe Pro WS WRX90E-SAGE SE includes up to four onboard M.2 slots. Users working with massive files can RAID together multiple NVMe devices for massive I/O bandwidth and speedy data transfers.
SlimSAS slotThe Pro WS WRX90E-SAGE SE motherboard also features two SlimSAS ports for connecting industrial SSD drives, servers and networking equipment.
CPU AND MEMORY OVERCLOCKING READY For AMD TR5 series workstations, we offer CPU and DRAM overclocking options. To fully leverage the performance of these processors, ASUS has incorporated an innovative dual PSU design on the Pro WS WRX90E-SAGE SE motherboard. Along with robust power delivery and advanced cooling modules, this motherboard exhibits enhanced stability during overclocking. Hardware switches and optimized BIOS options provide overclocking enthusiasts with greater convenience when pushing their systems to the limit. You may further boost your memory performance by enabling EXPO settings. The comprehensive synergy of EXPO and ECC R-DIMM further combines exceptional performance with outstanding stability, setting a new standard for workstation computing.
INNOVATIVE COOLING AND ROBUST PERFORMANCE Power Stages in VRM AreaThe Pro WS WRX90E-SAGE SE voltage regulator module setup is comprised of (16*2)+3+3+3 power stages, delivering the power and efficiency that the latest AMD Ryzen™ Threadripper™ PRO 7000 WX-Series processors demand, with stability for extreme overclocking.
Active VRM Cooling SolutionsThe extruded aluminum heatsinks on the MOSFETs and chokes contain active cooling to greatly enhance thermal efficiency.
ProCool II ConnectorsProCool II connectors ensure a snug and reliable connection to the 12V CPU input. This second generation features improved heat dissipation and a metal shroud.
Onboard PCIe Power ConnectorsTwo additional 8-pin PCIe cable connectors built into the motherboard can ensure power output stability when multiple graphic cards need to be installed.
ECC R-DIMM Memory Support The Pro WS WRX90E-SAGE SE motherboard boasts a robust design featuring eight R-DIMM DDR5 memory module slots with ECC support, to improve the prevention of system crashes and data corruption, thereby ensuring that a workstation remains reliable and responsive for professional demands.
REMOTE CONTROL SOLUTIONS On Board BMCPro WS WRX90E-SAGE SE workstation motherboard features compatibility with BMC connections, and it is bundled with ASUS Control Center Express software to provide comprehensive in-band and out-of-band management features for businesses and industries.
ASUS Control Center ExpressThe Pro WS WRX90E-SAGE SE comes with ASUS Control Center Express, real-time IT monitoring and management software designed for business that improves productivity and enhances security and can help prevent unauthorized access and data leaks.
THOROUGH THERMAL DESIGN Chipset CoolingA dedicated chipset heatsink draws heat away to maintain optimum operating temperatures, and it comes with an active fan to enhance thermal efficiency.
10 Gb LAN CoolingAn optimally located and extended heatsink on the 10 Gb Ethernet controller ensures stable high-speed networking performance.
M.2 Heatsinks with Active FanAn active fan provides an additional cooling method to M.2 slots. All four M.2 slots come with large heatsinks to keep NVMe storage at the optimal operating temperature for consistent performance and reliability. M.2 thermal pads on select slots go even further to ensure peak performance for next-gen drives.
COMPREHENSIVE FAN CONTROLS Thorough and Flexible Way to Adjust the FansThe Pro WS WRX90E-SAGE SE offers advanced fan control, configurable via an IPMI web UI, Q-FAN in the UEFI BIOS*, or Fan Xpert 4 in Armoury Crate for Windows**Set BMC_SW to disabled to control fans via this method. Multiple Temperature SourceEach header can be connected to a 3A-12V high speed fan and set to monitor and react to three user-configurable thermal sensors for workload-based cooling. All settings can be easily managed by Fan Xpert 4, UEFI and IPMI web interfaces.
INNOVATIVE DIY DESIGN AND ROBUST RELIABILITY PCIe Q-release SlimThe new design of Q-release Slim allows users to remove the graphics card by tilting the card in its slot.This design also keeps the original method of removing the graphics card by pushing down on the retention clip. Step1: Firmly grasp the graphics cardStep2: Slightly tile the card while pulling upward * For detailed instructions, please refer to the user manual
SafeSlot &; SafeDIMMPCIe 5.0 is 2x faster than PCIe 4.0, so ASUS adapted its SMT manufacturing process to ensure the highest data speeds for its SafeSlot design. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep an expansion card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on ASUS Pro series workstation motherboards, empowering users to insert modules with speed, accuracy and confidence.
Q-LatchThe innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. This design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.
24/7 Reliability - Built for around-the-clock operation Optimized for 24/7 operation, the Pro WS WRX90E-SAGE SE WIFI motherboard is tested to work at up to 45°C and 80% humidity, ensuring it can handle diverse operating environments. - 168 hr Aging time- 45 °C Temperature- 80 % Relative humidity Built for Firm Protection The back-plate on the back of the motherboard provides protection for adjacent electrical components and circuits.
Pro WS WRX90E-SAGE SE AMD sTR5 EEB workstation motherboard, 7 PCIe 5.0 x16 slots, multi-GPU support, robust 32+3+3+3 power-stage design, CPU and memory overclocking ready, 4 PCIe 5.0 M.2 slots, dual 10 Gb LAN, PCIe Q-Release Slim - AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors.- Ultrafast connectivity: Seven PCIe® 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4® 40Gbps Type-C® and SlimSAS NVMe support.- CPU and memory overclocking: Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).- Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.- PCIe Q-release Slim: Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.- Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.- Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.
A WORKSTATION WONDERLAND The Pro WS WRX90E-SAGE SE motherboard offers elite speed, compatibility and stability tailored to content creation, software development, machine learning and more. Thirty-two power stages fuel AMD Ryzen™ Threadripper™ PRO 7000 WX-series processors with up to 96 cores, while supporting up to 2 TB of R-DIMM DDR5 modules, delivering the performance potential that professionals need for cutting-edge applications. With onboard PCIe® power connectors offering additional support for multiple graphics cards, active cooling on the VRM heatsinks, USB 40Gbps ports, SlimSAS and onboard BMC, the Pro WS WRX90E-SAGE SE comes prepared for a wide array of scenarios and industries.
ULTRAFAST CONNECTIVITY - Multi-GPU Support The Pro WS WRX90E-SAGE SE motherboard features seven PCIe 5.0 x16 slots that provide flexible system configurability and expandability. With high-powered graphics cards, it can bring enhanced performance in modelling, simulation and rendering applications.
ULTRAFAST CONNECTIVITY - Ultrafast Networking Intel® X710-AT2 dual 10 Gb EthernetFeaturing dual onboard 10G LAN ports powered by the cutting-edge Intel® X710-AT2 Ethernet controller, the Pro WS WRX90E-SAGE SE makes short work of multi-terabyte transfers and provides server-grade connectivity with low-latency.
1 Gb Ethernet Dedicated to BMCThe Pro WS WRX90E-SAGE SE features an Ethernet port to provide fast data transfers simultaneously for 1 Gbps internet streaming to the onboard baseboard management controller.
Plenty of High Speed USB Ports USB 20Gbps with USB Type-C®The front panel connectors offer a transfer rate of up to 20 Gbps.
Ultrafast Networking Embrace Next-Generation USB4®The USB Type-C port in the rear offers a DisplayPort™ alt mode with support for up to 8K resolution at 60 Hz, providing great compatibility for Type-C monitors and portable displays which are getting popular among creators.* The MiniDP In port at the back panel needs to be connected to a discrete graphics card via the bundled MiniDP to DP cable.
High Capacity Storage M.2 PCIe 5.0 slotsThe Pro WS WRX90E-SAGE SE includes up to four onboard M.2 slots. Users working with massive files can RAID together multiple NVMe devices for massive I/O bandwidth and speedy data transfers.
SlimSAS slotThe Pro WS WRX90E-SAGE SE motherboard also features two SlimSAS ports for connecting industrial SSD drives, servers and networking equipment.
CPU AND MEMORY OVERCLOCKING READY For AMD TR5 series workstations, we offer CPU and DRAM overclocking options. To fully leverage the performance of these processors, ASUS has incorporated an innovative dual PSU design on the Pro WS WRX90E-SAGE SE motherboard. Along with robust power delivery and advanced cooling modules, this motherboard exhibits enhanced stability during overclocking. Hardware switches and optimized BIOS options provide overclocking enthusiasts with greater convenience when pushing their systems to the limit. You may further boost your memory performance by enabling EXPO settings. The comprehensive synergy of EXPO and ECC R-DIMM further combines exceptional performance with outstanding stability, setting a new standard for workstation computing.
INNOVATIVE COOLING AND ROBUST PERFORMANCE Power Stages in VRM AreaThe Pro WS WRX90E-SAGE SE voltage regulator module setup is comprised of (16*2)+3+3+3 power stages, delivering the power and efficiency that the latest AMD Ryzen™ Threadripper™ PRO 7000 WX-Series processors demand, with stability for extreme overclocking.
Active VRM Cooling SolutionsThe extruded aluminum heatsinks on the MOSFETs and chokes contain active cooling to greatly enhance thermal efficiency.
ProCool II ConnectorsProCool II connectors ensure a snug and reliable connection to the 12V CPU input. This second generation features improved heat dissipation and a metal shroud.
Onboard PCIe Power ConnectorsTwo additional 8-pin PCIe cable connectors built into the motherboard can ensure power output stability when multiple graphic cards need to be installed.
ECC R-DIMM Memory Support The Pro WS WRX90E-SAGE SE motherboard boasts a robust design featuring eight R-DIMM DDR5 memory module slots with ECC support, to improve the prevention of system crashes and data corruption, thereby ensuring that a workstation remains reliable and responsive for professional demands.
REMOTE CONTROL SOLUTIONS On Board BMCPro WS WRX90E-SAGE SE workstation motherboard features compatibility with BMC connections, and it is bundled with ASUS Control Center Express software to provide comprehensive in-band and out-of-band management features for businesses and industries.
ASUS Control Center ExpressThe Pro WS WRX90E-SAGE SE comes with ASUS Control Center Express, real-time IT monitoring and management software designed for business that improves productivity and enhances security and can help prevent unauthorized access and data leaks.
THOROUGH THERMAL DESIGN Chipset CoolingA dedicated chipset heatsink draws heat away to maintain optimum operating temperatures, and it comes with an active fan to enhance thermal efficiency.
10 Gb LAN CoolingAn optimally located and extended heatsink on the 10 Gb Ethernet controller ensures stable high-speed networking performance.
M.2 Heatsinks with Active FanAn active fan provides an additional cooling method to M.2 slots. All four M.2 slots come with large heatsinks to keep NVMe storage at the optimal operating temperature for consistent performance and reliability. M.2 thermal pads on select slots go even further to ensure peak performance for next-gen drives.
COMPREHENSIVE FAN CONTROLS Thorough and Flexible Way to Adjust the FansThe Pro WS WRX90E-SAGE SE offers advanced fan control, configurable via an IPMI web UI, Q-FAN in the UEFI BIOS*, or Fan Xpert 4 in Armoury Crate for Windows**Set BMC_SW to disabled to control fans via this method. Multiple Temperature SourceEach header can be connected to a 3A-12V high speed fan and set to monitor and react to three user-configurable thermal sensors for workload-based cooling. All settings can be easily managed by Fan Xpert 4, UEFI and IPMI web interfaces.
INNOVATIVE DIY DESIGN AND ROBUST RELIABILITY PCIe Q-release SlimThe new design of Q-release Slim allows users to remove the graphics card by tilting the card in its slot.This design also keeps the original method of removing the graphics card by pushing down on the retention clip. Step1: Firmly grasp the graphics cardStep2: Slightly tile the card while pulling upward * For detailed instructions, please refer to the user manual
SafeSlot &; SafeDIMMPCIe 5.0 is 2x faster than PCIe 4.0, so ASUS adapted its SMT manufacturing process to ensure the highest data speeds for its SafeSlot design. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep an expansion card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on ASUS Pro series workstation motherboards, empowering users to insert modules with speed, accuracy and confidence.
Q-LatchThe innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. This design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.
24/7 Reliability - Built for around-the-clock operation Optimized for 24/7 operation, the Pro WS WRX90E-SAGE SE WIFI motherboard is tested to work at up to 45°C and 80% humidity, ensuring it can handle diverse operating environments. - 168 hr Aging time- 45 °C Temperature- 80 % Relative humidity Built for Firm Protection The back-plate on the back of the motherboard provides protection for adjacent electrical components and circuits.
Specifications
- Model
- Pro WS WRX90E-SAGE SE
- CPU
- AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 7000 WX-Series*
- *Refer to www.asus.com for CPU support list.
- Chipset
- AMD WRX90 Chipset
- Memory
- 8 x DIMM slots, DDR5, ECC Registered Memory*
- 8 Channel Memory Architecture
- *Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
- Expansion Slots
- AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors*
- 6 x PCIe 5.0 x16 slots
- 1 x PCIe 5.0 x16 slot (x8 mode)
- *Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)
- **To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
- Storage
- Total supports 4 x M.2 slots, 2 x SlimSAS ports and 4 x SATA 6Gb/s ports*
- AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors*
- M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- AMD WRX90 Chipset
- 2 x SlimSAS slots support PCIe 4.0 x4 mode NVMe device
- 4 x SATA 6Gb/s ports
- * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
- Ethernet
- 1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)
- 1 x Intel® dual 10Gb Ethernet
- ASUS LANGuard
- USB
- Rear USB (Total 9 ports)
- 2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®)
- 6 x USB 10Gbps ports (6 x Type-A)
- 1 x USB 2.0 ports (2 x Type-A )
- Front USB (Total 7 ports)
- 1 x USB 20Gbpsconnector (supports USB Type-C®)
- 1 x USB 5Gbps header supports 2 additional USB 5G ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Audio
- Realtek ALC1220P Surround Sound High Definition Audio CODEC*
- - Impedance sense for front and rear headphone outputs
- - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- - Supports up to 32-Bit/192 kHz playback
- Audio Features
- - Premium audio capacitors
- - Dedicated audio PCB layers
- - Unique de-pop circuit
- *A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output.
- * This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard.
- Back Panel I/O Ports
- 2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®)
- 6 x USB 10Gbps ports (6 x Type-A)
- 1 x USB 2.0 port (2 x Type-A)
- 1 x VGA port
- 2 x mini DisplayPort IN
- 1 x Intel® dual 10Gb Ethernet ports
- 1 x Realtek 1Gb Ethernet port
- 2 x Audio jacks
- 1 x BIOS FlashBack™ button
- 1 x Clear CMOS button
- Internal I/O Connectors
- Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x W_PUMP+ header
- 5 x 4-pin Chassis Fan headers
- 2 x 4-pin VRM Fan header (with VRM FAN onboard)
- 1 x 4-pin M.2 Fan header (with M.2 FAN onboard)
- Power related
- 1 x 24-pin Main Power connectors
- 2 x 8-pin +12V Power connectors
- 2 x 8-pin PCIe to CPU power connectors
- 2 x 8-pin PCIe Power connector
- Storage related
- 4 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- 2 x SlimSAS port
- USB
- 1 x USB 20Gbps connector supports USB Type-C®
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Miscellaneous
- 1 x Chassis intrusion header
- 1 x COM port header
- 1 x FlexKey button
- 1 x Front panel audio header (F_AUDIO)
- 1 x LN2 mode jumper
- 1 x M.2 slot (Key E)
- 7 x ProbeIt measurement points
- 1 x ReTry button
- 1 x RSVD switch
- 1 x Slow mode switch
- 1 x Safe boot button
- 1 x SPI TPM header (14-1 pin)
- 1 x Start button
- 1 x 10-1 pin system panel header
- 1 x Thermal sensor header
- Special Features
- ASUS 5X PROTECTION III
- - DIGI+ VRM (- Digital power design with SPS)
- - ESD Guards
- - LANGuard
- - Overvoltage protection
- - SafeSlot
- - Stainless-steel back I/O
- ASUS Q-Design
- - M.2 Q-Latch
- - Q-Release Slim (with PCIe SafeSlot)
- - Q-Code
- - Q-Connector
- - Q-DIMM
- - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- - Q-Slot
- ASUS Thermal Solution
- - M.2 heatsink backplate and onboard thermal pads
- - M.2 heatsink
- - Steel backplate
- - VRM heatsink design with active fans
- ASUS EZ DIY
- - BIOS FlashBack™ button
- - BIOS FlashBack™ LED
- - Clear CMOS button
- - ProCool II
- - Pre-mounted I/O shield
- - SafeSlot
- - SafeDIMM
- Bespoke Motherboard Design & Business Focused Features
- - 24/7 Reliability
- - Overcurrent Protection
- BMC Related
- 1 x BMC switch
- 1 x BMC LAN fixed IP switch
- 1 x IPMI switch
- 1 x Message LED header
- 1 x microSD card socket
- 2 x LAN LED headers
- 1 x Location LED header
- 1 x Location button header
- 1 x PSU_SMB header
- 1 x SMART_PSU switch
- 1 x VGA switch
- 1 x VGA header (Dedicated Management for AST2600)
- 1 x VPP_I2C header
- Software Features
- ASUS Exclusive Software
- Armoury Crate
- - Fan Xpert 4
- ASUS CPU-Z
- Adobe Creative Cloud (Free Trial)
- Norton 360 for Deluxe (60 Days Free Trial)
- WinRAR (40 Days Free Trial)
- UEFI BIOS
- ASUS EZ DIY
- - ASUS CrashFree BIOS 3
- - ASUSTeK. EzFlash Utility
- FlexKey
- IT Management software supported
- - ASUS Control Center Express(ACCE)
- BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS(text-based)
- Manageability
- WOL by PME, PXE (UEFI mode)
- Accessories
- Cables
- 2 x PCIe 8-pin to CPU power cables
- 1 x 24-pin power cable (Y cable)
- 2 x Mini DisplayPort cables
- 4 x SATA 6Gb/s cables
- 1 x Thermistor cable pack
- Miscellaneous
- 1 x Q-connector
- 1 x M.2 Q-Latch package
- 1 x AMI license sticker
- 4 x M.2 rubber packages
- 1 x Screw package for M.2 Key E
- Documentation
- 1 x ACC Express Activation Key Card
- 1 x Quick start guide
- Operating System
- Windows® 11
- Windows® 10 64-bit
- Form Factor
- EEB Form Factor
- 12 inch x 13 inch
- (30.5 cm x 33 cm)
