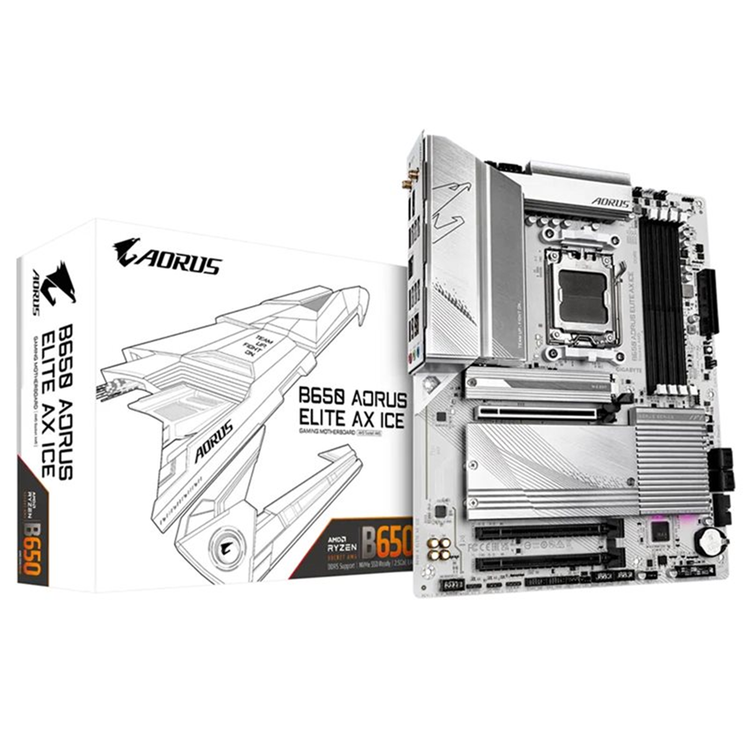

Gigabyte B650 AORUS ELITE AX ICE Ready For AMD Ryzen 7000/8000/9000 Series CPUs - Gaming ATX Motherboard

Gigabyte B650 AORUS ELITE AX ICE Ready For AMD Ryzen 7000/8000/9000 Series CPUs - Gaming ATX Motherboard AMD B650 Chipset - 3x M.2 - 1x Internal USB 3.2 Header - 2x Internal USB 2.0 Header - 1x Internal Type C Header 1x 2.5 GbE - Wifi AX+BT

B650 AORUS ELITE AX ICE - AMD Socket AM5: Supports AMD Ryzen™ 7000/ Ryzen™ 8000/ Ryzen™ 9000

Series Processors- Unparalleled Performance: Twin 12+2+2 Phases Digital VRM Solution- Dual Channel DDR5: 4*DIMMs with AMD EXPO™ &; Intel® XMP Memory Module Support- Superfast Storage: 1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors- Advanced Thermal Design &; M.2 Thermal Guard : To Ensure VRM Power Stability &; 25110 M.2 SSD Performance- EZ-Latch: PCIe x16 Slot &; M.2 Connectors with Quick Release &; Screwless Design- Fast Networks: 2.5GbE LAN &; Wi-Fi 6E- Extended Connectivity: HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C® 10Gb/s- Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP- Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Performance

Thermal

Connectivity

DIY Friendly

Robust VRM Design - Power in number All AORUS series gaming motherboards are equipped with an all-digital power design, which delivers the best stability under heavy workloads. Digital Twin VRM Designensures stable high-power delivery for advanced overclocking.*6+6 phases parallel power design - 12 VCORE Phases 60A Dr.MOS

to unleash the full potential of multi-core CPU performance.- 2 SOC Phases 60A Dr.MOS for CPU integrated GPU performance and memory control.- 2 MISC Phases provide stable power for CPU-connected PCIe lanes.

Memory, to the future All AORUS series gaming motherboards feature multiple techniques to enhance the performance of DDR5 memory with the best compatibility. - Best-in-class Compatibility- DDR5 Overclocking Up to 8000 MT/s * Memory overlocking and EXPO/XMP support may vary. Please refer to the qualified vendor list (QVL) from Gigabyte's website for details and note that product features may vary by model.

BIOS Engineering Feature-rich BIOS functions that enable easy access to the best-in-class DDR5 performance. DDR5 Auto Boosterone click to boost native DDR5-4800 to 5000 AMD EXPO™/ Intel® XMP 3.0 User Profileoptimizes memory settings and achieve the best performance for the system High Bandwidthone click to increase DDR5 bandwidth Low Latencyone click to shorten DDR5 latency Maximize DDR5 performance with your memory settings AMD EXPO™/ Intel® XMP 3.0 User Profile empowers you to optimize your memory settings and achieve the best performance for your system. SPD Re-defined or retrieve from databaseUsers can define two empty SPD profiles and transfer them to another computer. Performance SimulationSimulate memory performance quickly by inputting clock and timing parameters. Save/Load ProfileSave and load memory profiles for online sharing. Boost non-overclockable DDR5 memory frequencyIncrease the frequency of non-overclockable DDR5 memory. One-click Clear ProfileReset memory settings conveniently.

Hardware Craftsmanship Maximize DDR5 performance with our advanced technology for an unparalleled gaming experience. Shielded Memory RoutingMemory routing is shielded within the PCB's inner layer to protect against interference. Daisy-Chained RoutingOptimized routing eliminates the stub effect, enabling higher memory frequencies and providing professional gamers with a faster and denser system memory experience. Efficient Thermal - Overall Thermal Every AORUS motherboard is armored with the most advanced, full metal thermal design. These solid heatsinks are forged to keep your system cool while running fast.

VRM Thermal Armor Advanced These solid heatsinks are forged to keep your system cool. - Real One-piece Build- Multi-Cut Design- 3X Large Surface VRM Thermal Armor Advanced High coverage MOSFETs and integrated molded heatsinks improve thermal efficiency by enhancing airflow and heat exchange. 3X Large SurfaceThe surface area has been increased up to 3X larger compared to traditional heatsinks, resulting in improved heat dissipation from the MOSFETs. Real One-piece BuildThe TRUE single-piece heatsink offers superior cooling performance compared to competitors' multi-piece designs, thanks to its one-piece construction and larger surface area. Multi-Cut DesignWith its Multi-Cut Design, this heatsink includes multiple channels and inlets to enhance airflow, resulting in improved heat transfer performance. 6mm Heatpipe6mm heatpipe helps to transfer heat between two heatsinks which improves overall thermal balance of the MOSFETs. 7W/mK Thermal PadOptimize hardware performance with our advanced 7W/mK Thermal Pad for efficient heat dissipation. 2X Copper EnhancementEnhances system performance with improved heat dissipation, power handling, and seamless overclocking support.

M.2 Thermal Guard prevents throttling and bottlenecks from high speed Gen5 M.2 SSDs - M.2 Thermal Guard Ext.- 2x M.2 slots coverage

Smart Fan 6 ensures optimal cooling and quiet operation for your gaming PC, with support for PWM/DC fans and pumps, customizable settings, and intuitive temperature monitoring. High Current SupportEach fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection. Precision ControlMultiple temperature/fan speed control points for precise fan curve. Dual Curve ModeSlope/Stair dual mode for different user scenario. Fan StopFan can stop completely below users' specified temperature point.

Smart Fan 6 BIOS UI Note: The image shown is for reference purposes and may vary depending on the specific model. Enhance Fan Curve UIEnhance fan curve control with an expanded number of control points, from 5 to 7, and a larger fan speed graph, enabling users to have more precise and effortless control over fan curve settings. Slope/Stair Dual Graph ModeSwitch between Slope and Stair modes to adapt to various user scenarios. Slope mode provides a linear fan speed curve, while Stair mode maintains a constant fan speed within specified temperature intervals. Manual InputFor advanced users, manual input of fan speeds is available for fine-tuning and precise control over the cooling system. EZ TuningSimplify the process with EZ Tuning by setting 4 points on a rough temperature/fan speed scale. Smart Fan 6 will quickly generate a fan curve based on these points. Fan Curve ProfileSave your customized fan curve profile in the BIOS ROM, ensuring it remains intact even after BIOS updates.

DIY-friendly - Build effortless Building your own PC is meant to be joyful and effortless. AORUS serious motherboard the most DIY-friendly ever.

EZ-Latch Designs Effortless mechanisms that enable easy installations of components. *For reference only; actual appearance may vary. M.2 EZ-Latch Plusscrewless installation for M.2 SSDs

PCIe EZ-Latcheasy detachment for graphics cards

Multi-key A multi-function reset button that can be reconfigured to other function in BIOS for different user scenarios. RGB SwitchTurn off all lighting effect on motherboard. Direct-To-BIOSBoot into BIOS menu directly without pressing any keyboard button. Safe ModeBoot into BIOS safe mode to change specific option without losing other BIOS settings.

Q-FLASH PLUS Update the BIOS easily without installing the CPU, memory and graphics card. STEP 1: Plug 24pin &; 8pin power supply cable on motherboard.

STEP 2: Download motherboard BIOS file and rename to "gigabyte.bin", save to USB flashdrive, and plug USB flashdrive into Q-FLASH PLUS USB port.

STEP 3: Press Q-FLASH PLUS button, and motherboard will start updating BIOS automatically.

Ultra Durable™ - Get everythingUD GIGABYTE Ultra Durable™ Technology represents our highest standards to provide a platform for gamers that is not only powerful but also durable and reliable. AORUS series motherboard is built to last longer and stand stronger. PCIe UD Slot GIGABYTE's one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards. - 1.7X stronger shearing test- 3.2X stronger retention force test

M.2 UD Slot PG5 The one-piece, stainless-steel shielding design reinforces the M.2 Slots, and maximizes signal integrity. - 1.3X stronger in X-Axis Strength Test- 1.5X stronger in Y-Axis Strength Test- Reduced Signal Degradation with SMD Technology UD Power Connector The unique design provides better conductivity for power and better dissipation for the heat generated from it. Solid Pin Power Connector for CPUprovides superior conductivity &; signal transmission, reducing metal loss from repeated plugging

Connectivity versatile Enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity. Seamless Connectivity- Wi-Fi 6E- Ultra-high Gain Antenna- 2.5GbE LAN

Enhancing VR Experiences with Wi-Fi 6E Wi-Fi 6E enhances VR with faster speeds, lower latency, increased capacity, and stronger security, enabling seamless wireless streaming of high-quality VR games and improved multi-user experiences. Lower LatencyLower latency ensures minimal delay between their actions and the corresponding response in online games, resulting in a more responsive and immersive gaming experience. Increased CapacityWi-Fi 6E's increased capacity ensures smoother gameplay by minimizing congestion and maintaining consistent performance. Higher SpeedsFaster transmission speeds enable quick downloads, seamless online gaming, and smooth video streaming without interruptions. Broader spectrumWi-Fi 6E's use of the 6 GHz frequency band provides additional bandwidth, reducing congestion and interference from other devices.

GIGABYTE Ultra-high Gain Antenna Experience enhanced signal strength with the GIGABYTE Ultra-high gain Antenna, which incorporates a smart antenna function to optimize Wi-Fi signal transmission. - Direction signal Up to 5dBi- Omnidirectional signal Up to 4dBi- Magnetic Base

Enjoy reliable gaming audio High Quailty SoundEnjoy a high-quality sound experience, which supports 7.1 channel playback, features an advanced microphone array, and offers versatile connectivity options for gaming and entertainment. Audiophile Grade CapacitorsPremium Grade Audio capacitors provide stable current, delivering a studio-quality experience. Customization - Elevating Performance Together AORUS series motherboard signifies our dedication to BIOS optimization. Through our community partnership, we're making next-gen performance more user-friendly.

UC BIOS UC BIOSRedesigned as user-centered and provides intuitive performance tweakers. Redesigned UI and UXan intuitive operation interface with an aesthetically pleasing design. Quick Access9 customizable option slots for effortless access in Easy Mode.

Enhanced Intuitive UX GIGABYTE User-Centred(UC) BIOS has enhanced the BIOS UX to provide users with an optimized experience featuring an intuitive operation interface and an aesthetically pleasing design.

Quick Access Function GIGABYTE UC BIOS' Quick Access function selects 9 practical preset options from ADVANCE MODE and places them in EASY MODE for effortless access without switching or searching.

HWiNFO Exclusive Partnership introduces innovative features for computer enthusiasts and professionals Default AORUS skin *AORUS skin auto-applies when detecting a GIGABYTE motherboard. When running HWiNFO on a GIGABYTE motherboard, a unique, AORUS-themed skin will be automatically applied as default that is available in bright or dark mode. This AORUS skin can also be manually applied on non-GIGABYTE motherboards.

Memory Timings Monitor As a result of the great efforts of expert developers from GIGABYTE and HWiNFO, this advanced readout application shows the most detailed memory timing settings ever, and help users monitor their memory performance and gain valuable insights.

Detailed BIOS information GIGABYTE motherboard users can now check out the detailed BIOS information in real time via HWiNFO, such as status of toggles or tweakers, and the BIOS versions. No more reboot for BIOS check!

GIGABYTE Control Center a unified software platform across a variety of GIGABYTE products. RGB Fusioncustomize the RGB lighting on the motherboard or devices that connect to it. Showcase your style Unleash your creativity with GCC's customizable lighting effects for your motherboard. Personalize your system with stunning visuals that reflect your individuality and style. Note: The depicted lighting effects are for demonstration purposes only, and the actual lighting effects may vary depending on the model.

Supercharge your lighting options Addressable RGB LED headers allow you to customize each LED individually (for ARGB GEN2 devices), and you can easily accomplish this using GCC. *The information provided is for reference; please prioritize your specific setup and specifications. - 1x RGB LED header- 3x ARGB LED headers
