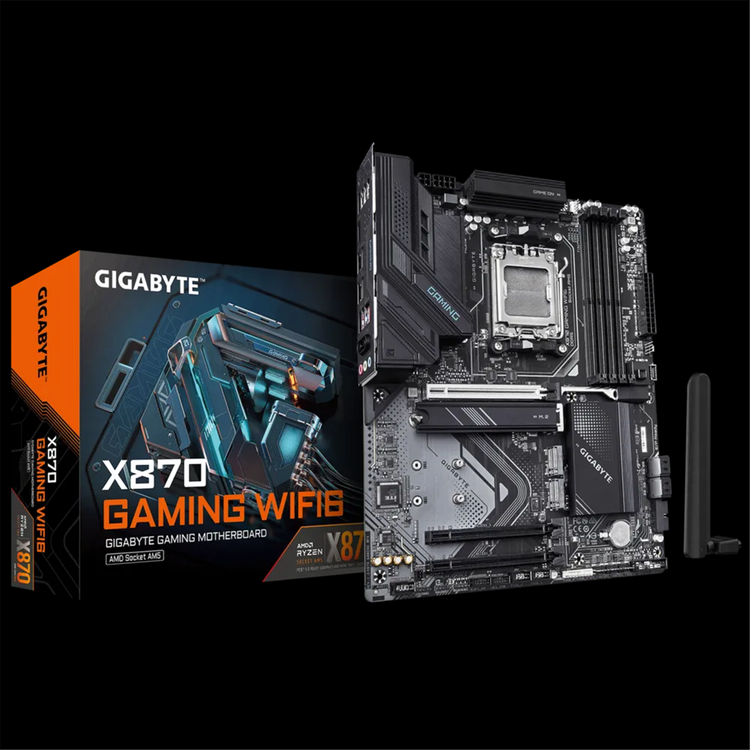

Gigabyte X870 GAMING WF6 AMD Socket AM5 - X870 Chipset - ATX Motherboard

Gigabyte X870 GAMING WF6 AMD Socket AM5 - X870 Chipset - ATX Motherboard Supports AMD Ryzen 9000 / 8000 / 7000 Series Processor - PCIe 5.0,

X870 GAMING WIFI6 - AMD Socket AM5: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors- Digital twin 8+2+2 phases VRM solution- Dual Channel DDR5: 4*DIMMs with AMD EXPO™Memory Module Support- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation- EZ-Latch Plus: PCIe and M.2 slots with Quick Release &; Screwless Design- EZ-Latch Click: M.2 heatsinks with screwless design- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.- Ultra-Fast Storage: 3*M.2 slots, including 1* PCIe 5.0 x4- Efficient Thermal: VRM Thermal Armor Advanced

&; M.2 Thermal Guard- Fast Networking: 2.5GbE LAN &; Wi-Fi 6 802.11ax- Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI

Performance

Thermal

Connectivity

DIY Friendly

AORUS AI SNATCH Unleash Ultimate Performance with One-Click Activation. Auto DDR5 Memory BoostWith just a single click, unleash the full potential of DDR5 memory, instantly boosting your gaming and work efficiency. One-Click Acceleration:Enhance DDR5 speeds with a single click. - Enhanced Computing Power- Fast AI Performance- EZ to Peak- Safe OC- Less Power Usage

Fast AI Performance Accelerate AI processing for greater performance Up to 8% AI Performance* - Accelerated AI decision-making- Boosted reinforcement learning- Streamlined language processing * GeekBench AI PRO test conducted with High Bandwidth option manually enabled. Enhanced Computing Power Let your system faster, and performant. Up to 9% Memory Performance* - Computing Power Performance- Increased data transfer rates- Faster application loading times- Improved multitasking performance * AIDA64 Extreme 7 test conducted with High Bandwidth option manually enabled. Maximize performance in a snap Enable users to easily become overclocking experts through a simple interface. - EZ to Peak Smart &; Safe overclocking Protect your motherboard through multiple over-temperature and over-current safeguards. - OTP - Over Temperature Protection- OCP - Over Current Protection- OVP - Over Voltage Protection- OPP - Over Power Protection- UVP - Under Voltage Protection- SCP - Short Circuit Protection Less Power Usage - Optimal power-efficiency Enhance Up to 9% CP/Per Watt* With faster computations, it also means reduced power consumption, making it more environmentally friendly and energy-efficient, continuously contributing to the well-being of our planet. * AIDA64 Extreme 7 test conducted with High Bandwidth option manually enabled. Durable Performance GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform. Digital Twin VRM Design Delivers consistent, high-powered performance to elevate your overclocking to the next level. - 8+2+2 Phases digital PWM + 60A DrMOS- Support the latest CPUs, and deliver enhanced system performance and ultimate hardware scalability. * 4+4 phases parallel power design** Photo for reference only

Zenith of the Memory GIGABYTE Gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods. - Top-tier Compatibility- DDR5 Overclocking Up to 8200 MT/s * Memory speeds vary. Check QVL for details. Features differ by model. Exclusive BIOS Design Advanced BIOS functionality provides seamless optimization of industry-leading DDR5 memory performance. AMD EXPO™ SettingsOptimize memory with AMD's user-friendly profiles. Boost PerformanceBoost Performance: Get the most out of your system's memory. Supercharge DDR5 Performance with Custom Settings AMD EXPO™ User ProfileHarness the power of AMD profiles to fine-tune your memory for outstanding system performance. Custom SPD ProfilesCreate and manage two unique SPD profiles, ready to transfer between machines. Fast Performance SimulationAutomatically adjusts clock and timing parameters, quickly simulating optimal memory performance. Profile ManagementSave and load your preferred memory settings, and share them with ease. Enhance non-overclockable DDR5 SpeedsPush the limits of your non-overclockable DDR5 memory with boosted frequencies. Instant ResetOne-click to clear and restore memory settings for quick adjustments.

Unmatched Hardware Excellence Elevate your gaming with our state-of-the-art technology for a superior experience. Shielded Memory RoutingAdvanced shielding inside the PCB keeps your memory signals clean and interference-free. Daisy-Chained RoutingInnovative design removes signal bottlenecks, allowing for blazing-fast memory speeds and a superior gaming setup. Comprehensive Thermal GAMING motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient. * Photo for reference only - 4X larger surface area for enhanced heat dissipation

Fully Covered MOSFET Heatsink True one-piece heatsink design- Outperforms competitors' multi-piece solutions- Integrated design and expanded surface area deliver exceptional cooling performance Multi-cut design with channels for improved airflow- More grooves, more airflow.- Better airflow, cooler system. Smart Fan 6 Superior cooling performance and whisper-quiet operation for your gaming rig. High Current Support- Supports both PWM and DC fans, plus water cooling pumps- Up to 24W (12V x 2A) capacity per fan header- Built-in over-current protection Precision Control- Multiple temperature and fan speed points- Customizable fan curves for optimal performance Dual Curve Mode- Choose between slope and stair modes- Tailor cooling to your specific needs and preferences Fan Stop Technology- Fans can be completely turned off at low temperatures- Ensures silent operation during light loads Enhance Fan Curve UI- 7 adjustable control points- Expanded speed graph for precise adjustments Slope/Stair Dual Graph Mode- Slope mode: Smooth fan speed curve- Stair mode: Steady speeds within temperature ranges- Easy switching between modes Manual Input- Fine-tune fan speeds for optimal performance- Precise control for enthusiasts EZ Tuning- Quick setup with 4 temperature and fan speed points- Automatic optimization of fan curve Fan Curve Profile- Save personalized settings to BIOS ROM- Maintain custom settings through BIOS updates Note: Images are for illustrative purposes and may differ based on your model.

Future Connectivity The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage. Dual 40Gbps USB4 with DP-Alt The dual latest USB4 Type-C ports provide blistering fast and reliable transfer speed up to 40 Gbps of each. Featuring extensive comparability, efficient charging, and ultra-HD displayport connectivity, USB4 is beneficial to video editing, large file transfers, and data-intensive tasks.

802.11ax Wi-Fi 6 The Wireless solution 802.11ax Wi-Fi 6 enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps and 5Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission. * Photo for reference only.

2.5GbE LAN Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.

PCIe 5.0/4.0 Hardware Design Featuring PCIe 5.0 x16 slot and PCIe 5.0/4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 5.0/ 4.0 devices to provide the superior performance. * Photo for reference only.

Hi-Fi Audio High-End Audio CapacitorsGIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. Audio Noise GuardGIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level. * Photo for reference only.

Easy Friendly Innovative and intuitive hardware, software, and BIOS interface design to create your personal style. WIFI EZ-Plug The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install. * Photo for reference only.

EZ Debug Zone Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer. * Photo for reference only.

Optimal DRAM Installation Indicator? The DRAM Indicator LED will turn on when a module is installed into a non-recommended slot.

EZ-Latch Designs User-friendly designs simplifying the assembly process. PCIe EZ-Latch PlusEasy ejection with single click for graphics cards

M.2 EZ-Latch Clickscrewless installation for M.2 heatsink

M.2 EZ-Latch Plusscrewless installation for M.2 SSDs

UC BIOS Restructured with user-centered and intuitive performance adjustment mechanisms. Multi-ThemeThe newly exclusive grayscale mode provides a refreshing interface, ensuring a significantly more friendly and pleasant user experience.

AIO Fan ControlEnable non-windows users to adjust AIO fan speed in the BIOS before entering the OS. * Support for AORUS WATERFORCE X II series only.

Refined BIOS InterfaceGIGABYTE User-Centred (UC) BIOS elevates the interface, delivering an optimized experience through an easy-to-navigate layout and attractive design for optimal usability.

Quick Access FunctionGIGABYTE UC BIOS' Quick Access function selects brings 9 key options from Advanced Mode directly into Easy Mode, enabling swift adjustments without extensive navigation.

Q-FLASH Auto Scan The new Auto Scan function featues when using USB flashdrive during Q-Flash, the BIOS file will be auto scanned instead of searching manually.

Q-FLASH PLUS Effortlessly upgrade your BIOS without the need to install CPU, RAM, or GPU. STEP 1Connect the 24-pin and 8-pin power cables directly to the motherboard. STEP 2Download the motherboard's BIOS file, rename it to 'gigabyte.bin', and store it on a FAT32-formatted USB drive. Insert the drive into the Q-FLASH PLUS USB port. STEP 3Press the Q-FLASH PLUS button to trigger automatic BIOS updating.

AORUS &; HWiNFO Co-branded OSD AORUS and HWiNFO co-branded OSD(On-Screen Display) can display values as text or graphs in an overlay or independent window, also in full-screen applications and games, with no need for additional software installation.

Default AORUS skin When using HWiNFO on a GIGABYTE motherboard, a custom AORUS-themed interface automatically activates, offering light and dark options. This AORUS Skin can be manually applied to non-GIGABYTE boards as well. *AORUS skin auto-applies when detecting a GIGABYTE motherboard.

Memory Timings Monitor Thanks to the collaborative efforts of GIGABYTE and HWiNFO experts, this sophisticated monitoring tool now provides unprecedented detail in memory timing readouts. This empowers users to closely track memory performance and gather crucial insights.

Detailed BIOS information GIGABYTE motherboard users can now access comprehensive BIOS details in real-time through HWiNFO. This includes toggle and tweaker statuses, as well as BIOS versions. No need for system reboots to check BIOS info. anymore.

GIGABYTE Control Center A unified software platform encompassing multiple GIGABYTE product. RGB FusionPersonalize the RGB illumination on connected peripherals.

Varnish your shineProgrammable RGB LED connectors enable precise control over individual LEDs (for ARGB GEN2 devices), seamlessly managed through the GCC. *The information provided is for reference; please prioritize your specific setup and specifications. - 1x RGB LED header- 3x ARGB LED headers
