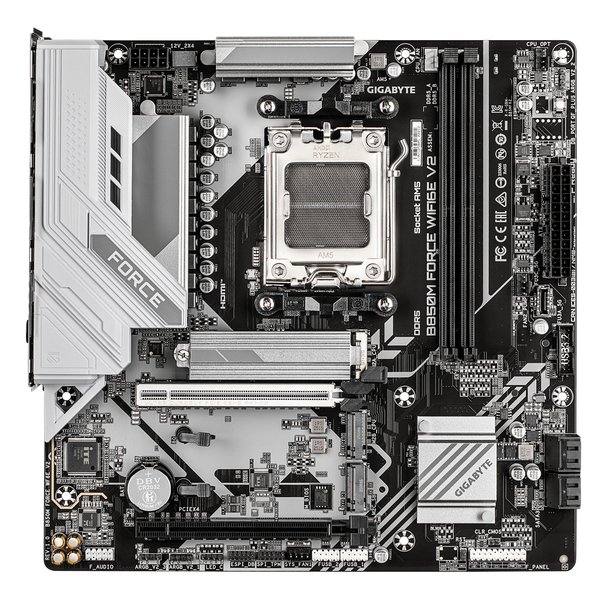

Gigabyte B850M FORCE WIFI6E V2 1.0 AMD Socket AM5 - B850 Chipset - MATX Motherboard
- X3D Turbo Mode to unleash new era gaming performance- AMD Socket AM5 : Supports AMD Ryzen™ 9000/8000/ 7000 Series Processors- Digital 8+2+2 phases VRM solution- Dual Channel DDR5 : 2*DIMMs with AMD EXPO™Memory Module Support- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation- EZ-Latch : PCIe x16 Slot with Quick Release Design- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.- Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4- Fast Networking : 802.11ax Wi-Fi6E and 2.5GbE LAN- Extended Connectivity : DP, HDMI X3D Turbo Mode Unleash New Era Gaming Performance with One-Click Activation. X3D Turbo Mode's unique optimization parameters allow even Ryzen™ 9000 X3D gaming Performance enhance &; Ryzen™ 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen™ X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with GIGABYTE's BIOS innovation- X3D Turbo Mode. One-Click Acceleration:Enhance Gaming FPS Performance with a single click. Infinite Memory Performance UD motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods. Express to PCIE5 Performance The new GIGABYTE motherboards provides the most efficient solution to enjoy boosted performance of PCIe Gen5 on the existing platform. PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement. Durable Performance GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform. Digital VRM Design Delivers consistent, high-powered performance to elevate your overclocking to the next level. Comprehensive Thermal UD motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient. Future Connectivity The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage. 802.11ax Wi-Fi 6E The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission. 2.5G LAN design deliver blisteringly fast transfer speeds to ensure the most stable transmission environment when the system is performing cloud computing or providing external computing services. Hi-Fi Audio High-End Audio Capacitors Audio Noise Guard Easy Friendly Innovative and intuitive hardware, software, and BIOS interface design to create your personal style. EZ Debug Zone Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer. EZ-Latch Designs User-friendly designs simplifying the assembly process. UC BIOS Restructured with user-centered and intuitive performance adjustment mechanisms. WIFI EZ-Plug The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install. WIFI Compass Features auto detection to help users find the best antenna position for stronger Wi-Fi signal.
- CPU
- AMD Socket AM5, support for:
- AMD Ryzen™ 9000 Series Processors
- AMD Ryzen™ 8000 Series Processors
- AMD Ryzen™ 7000 Series Processors
- (Go to GIGABYTE's website for the latest CPU support list.)
- Chipset
- AMD B850
- Memory
- Support for DDR5 9600(OC)/ 9200(OC)/ 8800(OC)/ 8600(OC)/ 8400(OC)/ 8200(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
- 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
- (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
- Onboard Graphics
- Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160 @ 60 Hz
- * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
- ** Support for native HDMI 2.1 TMDS compatible ports.
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160 @ 144 Hz
- * Support for DisplayPort 1.4 version.
- (Graphics specifications may vary depending on CPU support.)
- Audio
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
- * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
- LAN
- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Wireless Communication module
- MediaTek Wi-Fi 6E MT7902
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
- (Actual data rate may vary depending on environment and equipment.)
- * Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details.
- Expansion Slots
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
- * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
- Storage Interface
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
- 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
- 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x2 SSDs
- 4 x SATA 6Gb/s connectors
- RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
- * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
- RAID 0, RAID 1, and RAID 10 support for SATA storage devices
- USB
- CPU:
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 1 x USB 2.0/1.1 port on the back panel
- Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
- Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x CPU fan/water cooling pump header
- 1 x system fan header
- 1 x system fan/water cooling pump header
- 3 x addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header
- 3 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C® header, with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
- 1 x reset jumper
- 1 x Clear CMOS jumper
- 1 x Q-Flash Plus button
- Back Panel Connectors
- 1 x HDMI port (Note)
- 1 x DisplayPort (Note)
- 1 x PS/2 keyboard/mouse port
- 1 x USB Type-C® port, with USB 3.2 Gen 1 support
- 2 x USB 3.2 Gen 1 ports
- 1 x USB 3.2 Gen 2 Type-A port (red)
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 2 x antenna connectors (1T1R)
- 3 x audio jacks
- (Note) Actual support may vary by CPU.
- I/O Controller
- iTE® I/O Controller Chip
- H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
- * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
- BIOS
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Unique Features
- Support for GIGABYTE Control Center (GCC)
- * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
- Support for Q-Flash
- Support for Q-Flash Plus
- Support for Smart Backup
- Bundled Software
- Norton® Internet Security (OEM version)
- Operating System
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit
- Form Factor
- Micro ATX Form Factor; 24.4cm x 24.4cm
