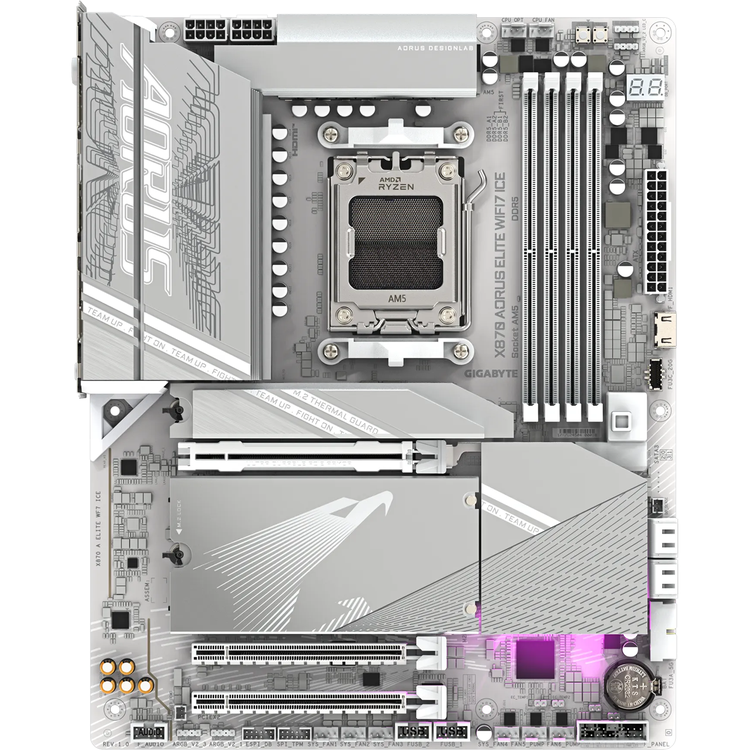

X870 AORUS ELITE WIFI7 ICE
- AMD Socket AM5: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 16+2+2 phases VRM solution
- Dual Channel DDR5: 4*DIMMs with AMD EXPO™ Memory Module Support
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click: M.2 heatsinks with screwless design
- Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage: 4*M.2 slots, including 3* PCIe 5.0 x4
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L
- Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
- Reliable Audio: Realtek ALC1220 HD Audio & Audiophile Grade Capacitors
- Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
- PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card


Performance


Thermal


Connectivity


DIY Friendly


AORUS AI SNATCH - AORUS AI SNATCH Bullet Point
Unleash Ultimate Performance with One-Click Activation.
Auto DDR5 Memory Boost
With just a single click, unleash the full potential of DDR5 memory, instantly boosting your gaming and work efficiency.
One-Click Acceleration:
Enhance DDR5 speeds with a single click.
- Enhanced Computing Power
- Fast AI Performance
- EZ to Peak
- Safe OC
- Less Power Usage


Fast AI Performance
Accelerate AI processing for greater performance
Up to 8% AI Performance*
- Accelerated AI decision-making
- Boosted reinforcement learning
- Streamlined language processing
* GeekBench AI PRO test conducted with High Bandwidth option manually enabled.
Enhanced Memory Performance
Boost system speed and performance.
Up to 9% Memory Performance*
- Increased data transfer rates
- Faster application loading times
- Improved multitasking performance
- Better system responsiveness overall
* AIDA64 Extreme 7 test conducted with High Bandwidth option manually enabled.
Maximize performance in a snap
Enable users to easily become overclocking experts through a simple interface.
- EZ to Peak


Smart & Safe overclocking
Protect your motherboard through multiple over-temperature and over-current safeguards.
- OTP - Over Temperature Protection
- OCP - Over Current Protection
- OVP - Over Voltage Protection
- OPP - Over Power Protection
- UVP - Under Voltage Protection
- SCP - Short Circuit Protection
Less Power Usage - Optimal power-efficiency
Enhance Up to 9% CP/Per Watt*
With faster computations, it also means reduced power consumption, making it more environmentally friendly and energy-efficient, continuously contributing to the well-being of our planet.
* AIDA64 Extreme 7 test conducted with High Bandwidth option manually enabled.
DDR5 Zenith-Memory - Zenith of the Memory
AORUS gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Top-tier Compatibility
DDR5 Overclocking Up to 8000 MT/s
*Memory speeds vary. Check QVL from Gigabyte's website for details. Features differ by model.
Exclusive BIOS Design
Advanced BIOS functionality provides seamless optimization of industry-leading DDR5 memory performance.
AMD EXPO™ Settings
Optimize memory with AMD's user-friendly profiles.
Boost Performance
Get the most out of your system's memory.


Supercharge DDR5 Performance with Custom Settings
AMD EXPO™ User Profile
Harness the power of AMD profiles to fine-tune your memory for outstanding system performance.
Custom SPD Profiles
Create and manage two unique SPD profiles, ready to transfer between machines.
Fast Performance Simulation
Automatically adjusts clock and timing parameters, quickly simulating optimal memory performance.
Profile Management
Save and load your preferred memory settings, and share them with ease.
Enhance non-overclockable DDR5 Speeds
Push the limits of your non-overclockable DDR5 memory with boosted frequencies.
Instant Reset
One-click to clear and restore memory settings for quick adjustments.


Unmatched Hardware Excellence
Elevate your gaming with our state-of-the-art technology for a superior experience.
- Shielded Memory Routing
- Daisy-Chained Routing
- 6-Layer Server-Grade PCB
Unleash Revolutionary DDR5 Technology
Maximize DDR5 performance with our groundbreaking technology for an unparalleled gaming experience.
Shielded Memory Routing
Advanced shielding inside the PCB keeps your memory signals clean and interference-free.
Daisy-Chained Routing
Innovative design removes signal bottlenecks, allowing for blazing-fast memory speeds and a superior gaming setup.
6-layer Server-grade PCB
Top-of-the-line server-grade PCB material minimizes signal loss, providing ultra-fast DDR5 data transmission.


Sturdy VRM Design - Steady Power
Better Play AORUS Series, steady power keeps your gaming smooth.
Digital Twin VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.
16 VCORE Phases DrMOS 60A
Unlock the full power of your multi-core CPU for unmatched performance.
2 SOC Phases DrMOS 60A
Optimized for integrated GPU performance and memory management within the CPU.
2 MISC Phases Ppak
Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.
*8+8 phases parallel power design


Cooling - Comprehensive Thermal
AORUS motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.


Premium VRM Thermal Armor for Superior Cooling
"Stay Cool, Game On"
High-coverage MOSFETs with integrated molded heatsinks
4x larger surface area for enhanced heat dissipation
- With up to 4 times the surface area of traditional coolers, this advanced design significantly boosts MOSFET cooling performance
True one-piece heatsink design
- Outperforms competitors' multi-piece solutions.
- Integrated design and expanded surface area deliver exceptional cooling performance.
Multi-cut design with channels for improved airflow
- More grooves, more airflow.
- Better airflow, cooler system.
Ultimate Heatpipe for optimal heat transfer
- Designed for optimal thermal conductivity.
- Ensures efficient heat transfer and maintains system stability.
7 W/mK thermal pad for efficient thermal conductivity
- High-performance thermal pad.
- Keeps your system cool and running at peak efficiency.


M.2 Thermal Guard L
with M.2 Thermal Guard Backplate
- 6X optimized heat dissipation
* Test results are for reference only and may vary in different circumstances.


M.2 Thermal Guard Ext.
with M.2 Thermal Guard Backplate
- 4X M.2 slots coverage


Small Vents, Big Cooling Power
* Test results are for reference only and may vary in different circumstances.
- Up To 7°C lower temperature


Smart Fan 6
Superior cooling performance and whisper-quiet operation for your gaming rig.
High Current Support
- Supports both PWM and DC fans, plus water cooling pumps
- Up to 24W (12V x 2A) capacity per fan header
- Built-in over-current protection
Precision Control
- Multiple temperature and fan speed points
- Customizable fan curves for optimal performance
Dual Curve Mode
- Choose between slope and stair modes
- Tailor cooling to your specific needs and preferences
Fan Stop Technology
- Fans can be completely turned off at low temperatures
- Ensures silent operation during light loads


Smart Fan 6 BIOS UI
Note: Images are for illustrative purposes and may differ based on your model.
Enhance Fan Curve UI
- 7 adjustable control points
- Expanded speed graph for precise adjustments
Slope/Stair Dual Graph Mode
- Slope mode: Smooth fan speed curve
- Stair mode: Steady speeds within temperature ranges
- Easy switching between modes
Manual Input
- Fine-tune fan speeds for optimal performance
- Precise control for enthusiasts
EZ Tuning
- Quick setup with 4 temperature and fan speed points
- Automatic optimization of fan curve
Fan Curve Profile
- Save personalized settings to BIOS ROM
- Maintain custom settings through BIOS updates


Easy & Friendly - Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience


WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.


EZ Debug Zone
Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer.
* Photo for reference only.
Multi-key
A flexible control key for reset with BIOS-level reconfiguration options for diverse usage scenarios.
RGB Switch
Disable all light displays on the motherboard.
Direct-To-BIOS
Access the BIOS settings directly without keyboard inputs.
Safe Mode
Access BIOS safe mode to modify select settings while preserving other configurations.


Optimal DRAM Installation Indicator
The DRAM Indicator LED will turn on when a module is installed into a non-recommended slot.


Q-FLASH Auto Scan
The new Auto Scan function featues when using USB flashdrive during Q-Flash Auto Scan, the BIOS file will be auto scanned instead of searching manually.


Q-FLASH Plus
Effortlessly upgrade your BIOS without the need to install CPU, RAM, or GPU.
STEP 1 Connect the 24-pin and 8-pin power cables directly to the motherboard.


STEP 2 Download the motherboard's BIOS file, rename it to 'gigabyte.bin', and store it on a FAT32-formatted USB drive. Insert the drive into the Q-FLASH PLUS USB port.


STEP 3 Press the Q-FLASH PLUS button to trigger automatic BIOS updating.


EZ-Latch Designs
User-friendly designs simplifying the assembly process.
M.2 EZ-Latch Click
screwless installation for M.2 heatsink


M.2 EZ-Latch Plus
screwless installation for M.2 SSDs


PCIe EZ-Latch Plus
Easy ejection with single click for graphics cards


Sensor panel Link
The built-in video port streamlines Sensor Panel setup without management concerns. Official themes are ready for user to download.
*The demo system uses 7-inch 1024*600 monitor to demo sensor panel link feature.
**Images are for reference only. Actual product may vary..


PCB Mastery - Enhanced PCB Design for Superior Gameplay
Serving as the cornerstone of the motherboard, the PCB holds a fundamental and vital influence on system performance.
6L Server-grade PCB
Facilitates condensed integration, ensuring signal fidelity, power consistency, and diminished EMI for premium performance systems.
2X Copper Enhancement
Optimizes system efficiency through enhanced thermal management, improved power delivery, and comprehensive overclocking capabilities.
56% Lower Dissipation Factor
Our cutting-edge technology enhances signal integrity in high-frequency circuits, establishing new level in high-speed electronic engineering.


All-round Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.


Wi-Fi 7 brings you the Ultimate VR experience
Wi-Fi 7 transforms the VR landscape with its exceptional bandwidth and minimal latency, delivering an unparalleled, seamless immersive VR experience.
160 MHz channels
Wi-Fi 7 introduces support for expansive 160 MHz channels, dramatically increasing bandwidth for unprecedented data transfer speeds.
4K-QAM
Leveraging 4K-QAM technology, Wi-Fi 7 elevates data throughput, enabling lightning-fast file transfers and buffer-free streaming.
Multi-link Operation
Wi-Fi 7's MLO (Multi-Link Operation) technology allows strategic bandwidth allocation - dedicating 2.4GHz for streaming and 5/6GHz for gaming, resulting in a superior and interruption-free network experience.
Deterministic low latency
With its deterministic low latency, Wi-Fi 7 minimizes delays, making it the best choice for time-sensitive applications such as video conferencing and competitive online gaming.


GIGABYTE Directional Ultra-high Gain Antenna
Boost your signal strength with GIGABYTE's Ultra-high gain Antenna, featuring smart antenna technology for optimized Wi-Fi signal transmission.
- Direction signal Up to 5dBi
- Omnidirectional signal Up to 4dBi
- Magnetic Base


Dual 40Gbps USB4 with DP-Alt
The dual latest USB4 Type-C ports provide blistering fast and reliable transfer speed up to 40 Gbps of each. Featuring extensive comparability, efficient charging, and ultra-HD displayport connectivity, USB4 is beneficial to video editing, large file transfers, and data-intensive tasks.


Conquer gaming realms with unparalleled audio
True High-Fidelity Music
Dive into enveloping surround sound and enjoy DSD audio playback with the Realtek ALC1220 Codec.


Audiophile Grade Capacitors
Premium Grade Audio capacitors ensure consistent power delivery, recreating a professional studio-quality sound experience.


Ultra Durable™ - Born from Ultra Durable™
Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. AORUS series motherboards are engineered to endure and excel.
PCIe UD Slot X
The latest PCIe UD Slot X offers unparalleled robustness, delivering superior protection for your graphics card.
10X load-bearing capacity
integrated, single-piece design anchored to a exclusive backplate
Inner Lining Rubber Strip
Safeguards your graphics card's PCB against potential damage
Zinc Alloy
Provides effective EMI shielding for high-frequency signals


M.2 UD Slot PG5
employs a unibody, stainless-steel shield design, reinforcing M.2 slots and optimizing signal integrity.
1.3X
greater strength in X-axis stress tests
1.5X
greater strength in Y-axis stress tests
Employs SMD technology
to minimize signal degradation


UD Power Connector
Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.
Solid Pins
Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections.


Ultra Durable PCIe Armor
Features a metal reinforcement plate for the PCIe x16 slot, enhancing stability and durability to support large graphics cards.


Tailored Computing - Collaborative Excellence in Computing
GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.


UC BIOS
Restructured with user-centered and intuitive performance adjustment mechanisms.
Multi-Theme
Multiple BIOS skin with newly exclusive grayscale mode
AIO Fan Control
Adjust AIO fan speed in the BIOS
GIGABYTE Active OC Tuner

Multi-Theme
The newly exclusive grayscale mode provides a refreshing interface, ensuring a significantly more friendly and pleasant user experience.


AIO Fan Control
Enable non-windows users to adjust AIO fan speed in the BIOS before entering the OS.
* Support for AORUS WATERFORCE X II series only.


Refined BIOS Interface
GIGABYTE User-Centred (UC) BIOS elevates the interface, delivering an optimized experience through an easy-to-navigate layout and attractive design for optimal usability.


Quick Access Function
GIGABYTE UC BIOS' Quick Access function selects brings 9 key options from Advanced Mode directly into Easy Mode, enabling swift adjustments without extensive navigation.


GIGABYTE Active OC Tuner
With GIGABYTE's exclusive Active OC Tuner BIOS function, CPU* can work with AMD P.B.O. for gaming and other light workload applications with the highest CPU boost clock, but when the applications require all CPU cores horsepower, it automatically switches to the Manual OC mode where it can utilize the high frequency for all the CPU cores.
- Active OC Tuner switches profile based on user scenario automatically
- 6.8% performance increase
* Only available on selected AMD Ryzen™ processors with P.B.O. function featured.
** Click here to view GIGABYTE Active OC Tuner Guidance
Active OC Tuner with Auto Switching
AMD P.B.O. mode
AMD P.B.O. mode for fewer cores with the highest CPU boost clock, better for gaming.


Manual OC mode
Manual OC mode for all cores with high CPU clock, better for content creation.


AORUS & HWiNFO Co-branded OSD
AORUS and HWiNFO co-branded OSD(On-Screen Display) can display values as text or graphs in an overlay or independent window, also in full-screen applications and games, with no need for additional software installation.


Default AORUS skin
When using HWiNFO on a GIGABYTE motherboard, a custom AORUS-themed interface automatically activates, offering light and dark options. This AORUS Skin can be manually applied to non-GIGABYTE boards as well.
*AORUS skin auto-applies when detecting a GIGABYTE motherboard.


Memory Timings Monitor
Thanks to the collaborative efforts of GIGABYTE and HWiNFO experts, this sophisticated monitoring tool now provides unprecedented detail in memory timing readouts. This empowers users to closely track memory performance and gather crucial insights.


Detailed BIOS information
GIGABYTE motherboard users can now access comprehensive BIOS details in real-time through HWiNFO. This includes toggle and tweaker statuses, as well as BIOS versions. No need for system reboots to check BIOS info. anymore.


Spotlight your flair
Liberate your imagination using GCC's versatile illumination options for your motherboard. Tailor your setup with eye-catching displays that mirror your unique personality and preferences.
*Note: The depicted lighting effects are for demonstration purposes only, and the actual lighting effects may vary depending on the model.


Varnish your shine
Programmable RGB LED connectors enable precise control over individual LEDs (for ARGB GEN2 devices), seamlessly managed through the GCC.
*The information provided is for reference; please prioritize your specific setup and specifications.
- 1x RGB LED header
- 3x ARGB LED headers

CPU

AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors
(Go to GIGABYTE's website for the latest CPU support list.)

Chipset

AMD X870

Memory

Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Onboard Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160 @ 240 Hz
* Support for DisplayPort 1.4 version and HDR.

Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160 @ 60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
** Support native HDMI 2.1 TMDS compatible ports.

- 1 x front HDMI port, supporting a maximum resolution of 1920x1080 @ 30 Hz
* Support for HDMI 1.4 version

(Graphics specifications may vary depending on CPU support.)
Support for up to quad-display at the same time

Audio

Realtek® ALC1220 CODEC
* The back panel line out jack supports DSD audio.

High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard

Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
**Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.

When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)

Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.

- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

Storage Interface

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
* The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used.

1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU+ASMedia USB4® controller:
- 2 x USB4® USB Type-C® ports on the back panel
CPU+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports on the back panel
CPU+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through
the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x power button
1 x reset button
2 x temperature sensor headers
1 x reset jumper
1 x Clear CMOS jumper

Back Panel Connectors

1 x Q-Flash Plus button
1 x HDMI port (Note)
2 x antenna connectors (2T2R)
2 x USB4® USB Type-C® ports (DisplayPort (Note))
2 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.

Noise detection

BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Q-Flash Plus
Support Smart Backup

Bundled Software

Norton® Internet Security (OEM version)
LAN bandwidth management software

Operating System

Support for Windows 11 64-bit

Form Factor

ATX Form Factor; 30.5cm x 24.4cm
