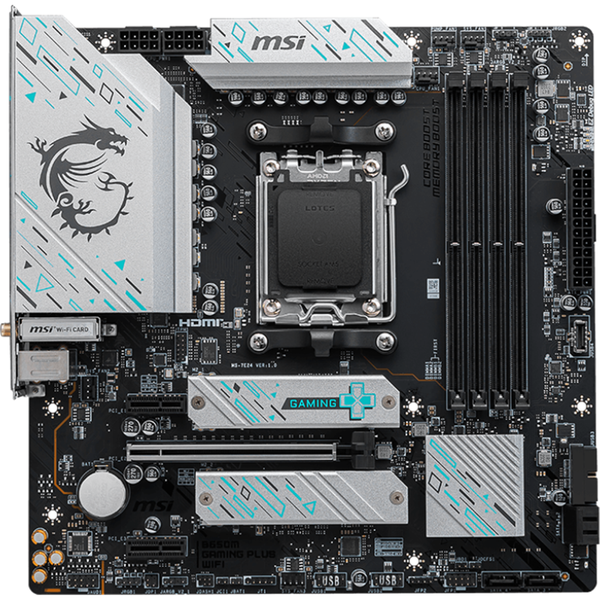

MSI B650M GAMING PLUS WIFI For AMD Ryzen 7000/8000/9000 Series CPUs mATX Motherboard
View all MSISold by PB Tech
Description
MSI B650M GAMING PLUS WIFI For AMD Ryzen 7000/8000/9000 Series CPUs mATX Motherboard Socket AM5. B650, 4x DDR5, 2x M.2, 2x Internal USB 2.0 Header, 1x Internal USB 3.2 Header, 1x Internal Type C Header, WIFI 6 + Bluetooth.
B650M GAMING PLUS WIFI - Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors- Supports DDR5 Memory, up to 7200+(OC) MHz- Enhanced Power Design: 10+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen4 M.2, USB 3.2 Gen 2- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience- High Quality PCB: 6-layer PCB made by 2oz thickened copper B650M GAMING PLUS WIFI B650M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.
EXCLUSIVE FEATURES
CONNECTIVITY
THERMAL SOLUTION
Cooling Overview 1 - Extended HeatsinkExtended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads. 2 - M.2 Shield FrozrStrengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance. 3 - Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps dissipate the heat. 4 - 7W/mK Thermal Pad &; Additional Choke PadHigh-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
CONTROL IN ONE CLICK MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
FROZR AI COOLING Detecting CPU &; GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
AUTO DETECT YOUR FAN MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.
OPTIMIZED FOR WATER COOLING Designed to support the most popular All-In-One &; customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked 'keep-out-zone' allows for easy and safe installation and a perfect fit.
DIY 2.0 - INTEGRATING WITH THE SYSTEM ENVIRONMENT Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header. FOR CPU COOLER
FOR WATERBLOCK COOLER
FOR TOP SYSTEM FAN
FOR FRONT SYSTEM FAN
FOR REAR SYSTEM FAN
10+2+1 DUET RAIL POWER SYSTEM Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8+8-pin power connectors and exclusive Core Boost technology, B650M GAMING PLUS WIFI motherboard is ready to suustain heavy gaming loadings. - 10 PHASE Core Power DRPS / P-PAK- 2 PHASE SOC POWER- 1 PHASE MISC POWER DIGITALL POWER DESIGNA fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision. DOUBLE POWER CONNECTORSTwo 8-pin connectors deliver adequate power even for an overclocked multi-core CPU. CORE BOOSTPremium layout not only support the multi-core CPU, also create the perfect conditions for your CPU overclocking.
OPTIMIZED PCB SOLUTION The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission. - 6 PCB layers- 2oz Thickened Copper
EZ OC TUNING PBO THERMAL POINTMSI PBO Thermal profiles are setting maximum CPU temperature at 85°C, 75°C and 65°C levels. With the thermal profiles, the CPU operates at lower voltage and temperature but remaining the same performance.
CONFIG TDPConfig TDP is designed to provide ECO Mode (65W) or different TDP (PPT/TDC/EDC) settings for advanced users. By offering several profiles for different TDP settings in Click BIOS 5, Config TDP makes setting TDP profiles easier and don't need to modify settings manually for each TDP.
MORE FOR PERFORMANCE 1-SECOND OVERCLOCKING!MSI Game Boost enables one-second overclocking, giving you the performance boost you need to get more FPS.
LOAD-LINE CALIBRATIONWhat you set, is what you get. LLC makes sure your CPU voltage remains 100% stable under any load. This greatly improves stability when demanding more CPU performance.
OVERVOLTAGE PROTECTIONPrevents potential short-circuit damage to the CPU and other critical components.
EZ M.2 CLIP Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.
DRIVE UTILITY INSTALLER Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks. Learn more *Please ensure to connect the internet, or the Driver Utility Installer won't launch automatically.
FLASH BIOS BUTTON Run into trouble when updating your BIOS or somehow corrupted it? Don't worry, MSI motherboards offer multiple options to successfully boot your system again. Flash the BIOS with only a connected power supply by following a few steps. CPU and memory not required.
MORE FOR DIY FRIENDLY WINDOWS 11 CERTIFIEDWith MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 11. With a true dedication to performance, our R&;D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product.
PRE-INSTALLED I/OThe patent-pending design protect your IO ports and makes your installation process easier and safer.
XL CLIPThe enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.
EZ DEBUG LEDOnboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.
KEEP OUT ZONEMSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.* Please ensure to remove the unnecessary mounting stand-off when installing the motherboard into the case.
DOUBLE ESD PROTECTIONDouble ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.
SOLID PIN DESIGN The 4-pin, 8-pin, and 24-pin power connectors of MSI motherboards are all designed with solid pins. The solid pin design allows for a more stable transmission of 12V power to the CPU, even when handling high current loads. Advantages of Solid Pin Power connector1. Improved stability : Larger contact area enhances stability during power delivery.2. Low impedance : Solid pins offer low impedance, enabling efficient power flow.3. Strong durability : The solid pin design ensures strong durability, capable of withstanding demanding conditions.4. Suitable for high-current applications.
Anti-corrosive Stainless Steel IO Shield Corrosive resistance IO Shield to help improve static electricity and reduce electromagnetic radiation noise from the system as well as more durable compare to traditional IO Shields. * The image above is an illustrative reference. Please refer to specification pages for more details.
The Grounding Structure of Power Phases The grounding structure of power phases is the MSI's exclusive design. This patented design enables to suppress the electromagnetic interference (EMI) generated by the power phases and helps to efficiently conduct heat to the copper plane with grounding properties.
Over Current Protection MSI motherboards prioritize safety with the embedded Overcurrent Protection (OCP), ensuring crucial components such as the USB ports, DDR memory, PWM IC, and CPU are shielded from excessive current. This proactive defense mechanism curtails the risk of damage or malfunction due to power surges, promoting long-term system stability. This commitment to safeguarding your hardware underscores MSI's dedication to producing motherboards that prioritize durability and stability. CPU / PWM IC
DDR memory Slots
Rear &; Front USB ports
Transient Voltage Suppressors (TVS) Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All motherboard models of MSI are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.
Lightning Gen 4 PCI-E with Steel Armor LIGHTNING GEN 4 PCI-EMSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation. REINFORCED, HEAVY SOLDERED CONNECTIONSMSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
FAST AND FUTURE-READY STORAGE MSI B650M GAMING PLUS WIFI motherboards supports all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
LATEST DDR5 MEMORY WITH SMT SLOT A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI B650M GAMING PLUS WIFI motherboards are ready to deliver the world class memory performance.
The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.
EASY OVERCLOCKING WITH EXPO PROFILE MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Easy to enable EXPO profile with auto power settings to get the best memory speed and stability.
LATENCY KILLER MSI BIOS has introduced the latest Latency Killer feature on all AM5 socket motherboards. Users can enable Latency Killer in the BIOS to reduce memory latency by up to 12% when running at high frequencies. Importantly, it is compatible with a wide range of memory overclocking features, including Memory Try It!!, EXPO, A-XMP, and High-Efficiency Mode, etc. - UP TO 12% Memory latency Reduction *Supports BIOS versions after AGESA 1.2.0.2b.
CLICK BIOS 5 Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records! EXPO(EXtended Profiles for Overclocking)Choose from a preset EXPO profile and automatically overclock compatible DDR memory. Game BoostQuickly overclock your CPU with a single button for more performance. M-FLASHConveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility. HARDWARE MONITORGet immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage. MEMORY TRY ITGet extreme speed out of your system memory and get more performance. SEARCH &; FAVORITESA permanent search &; favorite option in the top right corner moves you through the BIOS menus quickly.
MSI CENTER MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.
Exclusive UI of AIDA64 Extreme MSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.
Opt-in to Cyber Safety with Norton 360 Deluxe Multiple layers of protection for your devices, online privacy features including our Secure VPN, plus Dark Web Monitoring - all in a single solution. With MSI motherboards, you can enjoy a 60-day free trial of Norton 360 Deluxe. - Up to 50 GB PC cloud backup- Real time Threat protection and Smart Firewall- Password manager- PC SafeCam *The MSI trial offer is not available for existing Norton customers. If you have an active Norton subscription, you will need to opt-out of the existing subscription to be eligible for this offer. For Important Subscription, Pricing and Offer Details, please refer to NortonLifeLock License and Services Agreement. NortonLifeLock Product and Service Privacy Notices.
RESIZABLE BAR Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.
Audio boost HIGH DEFINITION AUDIO PROCESSOR
HIGH QUALITY AUDIO CAPACITORS
HIGH QUALITY AUDIO JACKS
ISOLATED AUDIO SIGNAL
DE-POP PROTECTION
The Isolated Analogy Structure for Audio Connectors To provide clear voice, MSI develops a unique structure - Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp. * The image above is an illustrative reference. Please refer to specification pages for more details.
EXTEND YOUR RGB EXPERIENCE WITH EASE Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller. A-RAINBOW V2Supports 5V Addressable RGB devices. Compatible with ARGB Gen2 / Gen1 devices.*Gen2 device only supports 7 RGB themes
RGBSupports 12V RGB devices.
AMBIENT LINKSynchronize lighting theme with compatible lighting devices.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK MSI's premium network solution provides incredible data transfer speed for demanding users. - Wi-Fi 6E- Bluetooth 5.3- 2.5G LAN
B650M GAMING PLUS WIFI - Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors- Supports DDR5 Memory, up to 7200+(OC) MHz- Enhanced Power Design: 10+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen4 M.2, USB 3.2 Gen 2- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience- High Quality PCB: 6-layer PCB made by 2oz thickened copper B650M GAMING PLUS WIFI B650M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.
EXCLUSIVE FEATURES
CONNECTIVITY
THERMAL SOLUTION
Cooling Overview 1 - Extended HeatsinkExtended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads. 2 - M.2 Shield FrozrStrengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance. 3 - Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps dissipate the heat. 4 - 7W/mK Thermal Pad &; Additional Choke PadHigh-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
CONTROL IN ONE CLICK MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
FROZR AI COOLING Detecting CPU &; GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
AUTO DETECT YOUR FAN MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.
OPTIMIZED FOR WATER COOLING Designed to support the most popular All-In-One &; customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked 'keep-out-zone' allows for easy and safe installation and a perfect fit.
DIY 2.0 - INTEGRATING WITH THE SYSTEM ENVIRONMENT Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header. FOR CPU COOLER
FOR WATERBLOCK COOLER
FOR TOP SYSTEM FAN
FOR FRONT SYSTEM FAN
FOR REAR SYSTEM FAN
10+2+1 DUET RAIL POWER SYSTEM Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8+8-pin power connectors and exclusive Core Boost technology, B650M GAMING PLUS WIFI motherboard is ready to suustain heavy gaming loadings. - 10 PHASE Core Power DRPS / P-PAK- 2 PHASE SOC POWER- 1 PHASE MISC POWER DIGITALL POWER DESIGNA fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision. DOUBLE POWER CONNECTORSTwo 8-pin connectors deliver adequate power even for an overclocked multi-core CPU. CORE BOOSTPremium layout not only support the multi-core CPU, also create the perfect conditions for your CPU overclocking.
OPTIMIZED PCB SOLUTION The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission. - 6 PCB layers- 2oz Thickened Copper
EZ OC TUNING PBO THERMAL POINTMSI PBO Thermal profiles are setting maximum CPU temperature at 85°C, 75°C and 65°C levels. With the thermal profiles, the CPU operates at lower voltage and temperature but remaining the same performance.
CONFIG TDPConfig TDP is designed to provide ECO Mode (65W) or different TDP (PPT/TDC/EDC) settings for advanced users. By offering several profiles for different TDP settings in Click BIOS 5, Config TDP makes setting TDP profiles easier and don't need to modify settings manually for each TDP.
MORE FOR PERFORMANCE 1-SECOND OVERCLOCKING!MSI Game Boost enables one-second overclocking, giving you the performance boost you need to get more FPS.
LOAD-LINE CALIBRATIONWhat you set, is what you get. LLC makes sure your CPU voltage remains 100% stable under any load. This greatly improves stability when demanding more CPU performance.
OVERVOLTAGE PROTECTIONPrevents potential short-circuit damage to the CPU and other critical components.
EZ M.2 CLIP Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.
DRIVE UTILITY INSTALLER Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks. Learn more *Please ensure to connect the internet, or the Driver Utility Installer won't launch automatically.
FLASH BIOS BUTTON Run into trouble when updating your BIOS or somehow corrupted it? Don't worry, MSI motherboards offer multiple options to successfully boot your system again. Flash the BIOS with only a connected power supply by following a few steps. CPU and memory not required.
MORE FOR DIY FRIENDLY WINDOWS 11 CERTIFIEDWith MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 11. With a true dedication to performance, our R&;D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product.
PRE-INSTALLED I/OThe patent-pending design protect your IO ports and makes your installation process easier and safer.
XL CLIPThe enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.
EZ DEBUG LEDOnboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.
KEEP OUT ZONEMSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.* Please ensure to remove the unnecessary mounting stand-off when installing the motherboard into the case.
DOUBLE ESD PROTECTIONDouble ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.
SOLID PIN DESIGN The 4-pin, 8-pin, and 24-pin power connectors of MSI motherboards are all designed with solid pins. The solid pin design allows for a more stable transmission of 12V power to the CPU, even when handling high current loads. Advantages of Solid Pin Power connector1. Improved stability : Larger contact area enhances stability during power delivery.2. Low impedance : Solid pins offer low impedance, enabling efficient power flow.3. Strong durability : The solid pin design ensures strong durability, capable of withstanding demanding conditions.4. Suitable for high-current applications.
Anti-corrosive Stainless Steel IO Shield Corrosive resistance IO Shield to help improve static electricity and reduce electromagnetic radiation noise from the system as well as more durable compare to traditional IO Shields. * The image above is an illustrative reference. Please refer to specification pages for more details.
The Grounding Structure of Power Phases The grounding structure of power phases is the MSI's exclusive design. This patented design enables to suppress the electromagnetic interference (EMI) generated by the power phases and helps to efficiently conduct heat to the copper plane with grounding properties.
Over Current Protection MSI motherboards prioritize safety with the embedded Overcurrent Protection (OCP), ensuring crucial components such as the USB ports, DDR memory, PWM IC, and CPU are shielded from excessive current. This proactive defense mechanism curtails the risk of damage or malfunction due to power surges, promoting long-term system stability. This commitment to safeguarding your hardware underscores MSI's dedication to producing motherboards that prioritize durability and stability. CPU / PWM IC
DDR memory Slots
Rear &; Front USB ports
Transient Voltage Suppressors (TVS) Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All motherboard models of MSI are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.
Lightning Gen 4 PCI-E with Steel Armor LIGHTNING GEN 4 PCI-EMSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation. REINFORCED, HEAVY SOLDERED CONNECTIONSMSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
FAST AND FUTURE-READY STORAGE MSI B650M GAMING PLUS WIFI motherboards supports all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
LATEST DDR5 MEMORY WITH SMT SLOT A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI B650M GAMING PLUS WIFI motherboards are ready to deliver the world class memory performance.
The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.
EASY OVERCLOCKING WITH EXPO PROFILE MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Easy to enable EXPO profile with auto power settings to get the best memory speed and stability.
LATENCY KILLER MSI BIOS has introduced the latest Latency Killer feature on all AM5 socket motherboards. Users can enable Latency Killer in the BIOS to reduce memory latency by up to 12% when running at high frequencies. Importantly, it is compatible with a wide range of memory overclocking features, including Memory Try It!!, EXPO, A-XMP, and High-Efficiency Mode, etc. - UP TO 12% Memory latency Reduction *Supports BIOS versions after AGESA 1.2.0.2b.
CLICK BIOS 5 Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records! EXPO(EXtended Profiles for Overclocking)Choose from a preset EXPO profile and automatically overclock compatible DDR memory. Game BoostQuickly overclock your CPU with a single button for more performance. M-FLASHConveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility. HARDWARE MONITORGet immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage. MEMORY TRY ITGet extreme speed out of your system memory and get more performance. SEARCH &; FAVORITESA permanent search &; favorite option in the top right corner moves you through the BIOS menus quickly.
MSI CENTER MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.
Exclusive UI of AIDA64 Extreme MSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.
Opt-in to Cyber Safety with Norton 360 Deluxe Multiple layers of protection for your devices, online privacy features including our Secure VPN, plus Dark Web Monitoring - all in a single solution. With MSI motherboards, you can enjoy a 60-day free trial of Norton 360 Deluxe. - Up to 50 GB PC cloud backup- Real time Threat protection and Smart Firewall- Password manager- PC SafeCam *The MSI trial offer is not available for existing Norton customers. If you have an active Norton subscription, you will need to opt-out of the existing subscription to be eligible for this offer. For Important Subscription, Pricing and Offer Details, please refer to NortonLifeLock License and Services Agreement. NortonLifeLock Product and Service Privacy Notices.
RESIZABLE BAR Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.
Audio boost HIGH DEFINITION AUDIO PROCESSOR
HIGH QUALITY AUDIO CAPACITORS
HIGH QUALITY AUDIO JACKS
ISOLATED AUDIO SIGNAL
DE-POP PROTECTION
The Isolated Analogy Structure for Audio Connectors To provide clear voice, MSI develops a unique structure - Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp. * The image above is an illustrative reference. Please refer to specification pages for more details.
EXTEND YOUR RGB EXPERIENCE WITH EASE Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller. A-RAINBOW V2Supports 5V Addressable RGB devices. Compatible with ARGB Gen2 / Gen1 devices.*Gen2 device only supports 7 RGB themes
RGBSupports 12V RGB devices.
AMBIENT LINKSynchronize lighting theme with compatible lighting devices.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK MSI's premium network solution provides incredible data transfer speed for demanding users. - Wi-Fi 6E- Bluetooth 5.3- 2.5G LAN
Specifications
- Chipset
- AMD B650
- CPU Supports
- AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
- Memory
- 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
- Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports AMD EXPO™
- Max. overclocking frequency:
- - 1DPC 1R Max speed up to 7200+ MHz
- - 1DPC 2R Max speed up to 6000+ MHz
- - 2DPC 1R Max speed up to 6000+ MHz
- - 2DPC 2R Max speed up to 5400+ MHz
- Onboard Graphics
- 1x HDMI™
- Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
- 1x DisplayPort
- Support DP 1.4, maximum resolution of 4K 60Hz*
- *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
- Slot
- 1x PCI-E x16 slot
- - Supports x16/x4 (For Ryzen™ 9000/ 7000 Series processors)
- - Supports x8/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
- - Supports x4/x4 (For Ryzen™ 8500/ 8300 Series processors)
- 2x PCI-E x1 slot
- PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
- PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
- Audio
- Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio
- Storage
- 2x M.2
- M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- 4x SATA 6G
- - M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 8500/ 8300 Series processor is installed
- RAID
- Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 for M.2 NVMe storage devices
- USB
- 4x USB 2.0 (Front)
- 4x USB 5Gbps Type A (Rear)
- 2x USB 5Gbps Type A (Front)
- 3x USB 10Gbps Type A (Rear)
- 1x USB 10Gbps Type C (Rear)
- 1x USB 10Gbps Type C (Front)
- LAN
- Realtek® RTL8125BG 2.5Gbps LAN
- Internal IO
- 1x Power Connector(ATX_PWR)
- 2x Power Connector(CPU_PWR)
- 1x CPU Fan
- 1x Pump Fan
- 3x System Fan
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 1x Tuning Controller connector(JDASH)
- 2x Addressable V2 RGB LED connector (JARGB_V2)
- 2x RGB LED connector(JRGB)
- 1x TPM pin header(Support TPM 2.0)
- 4x USB 2.0 ports
- 2x USB 5Gbps Type A ports
- 1x USB 10Gbps Type C ports
- WIRELESS LAN & BLUETOOTH
- Wi-Fi 6E
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX
- Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth® 5.3**
- * Wi-Fi 6E 6GHz may depend on every country's regulations and will be ready in Windows 11.
- ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
- LED FEATURE
- 4x EZ Debug LED
- BACK PANEL PORTS
- DisplayPort
- 2.5G LAN
- USB 3.2 Gen 2 10Gbps (Type-A)
- USB 3.2 Gen 1 5Gbps (Type-A)
- Wi-Fi / Bluetooth
- Flash BIOS Button
- HDMI™
- USB 3.2 Gen 2 10Gbps (Type-A)
- USB 3.2 Gen 2 10Gbps (Type-C)
- Audio connectors
- OPERATING SYSTEM
- Support for Windows® 11 64-bit, Windows® 10 64-bit
- PCB Info
- mATX
- 243.84mmx243.84mm
